This is my project car, an Australian-delivered 1981 Toyota Celica LT Liftback, which has sat since around the year 2001/2002. The 18RC & W50 5 Speed Manual-equipped Celica has 66,000 kilometers on the clock and, unfortunately, suffered valvetrain issues. It has since sat garaged, but in mid 2024, this project has slowly started. With a big passion for cars and racing, this Celica was the perfect platform for me to learn everything, from restoration, prep work, paint work, mechanical work (suspension, steering, engines, etc.), and has even opened some doors to some CAD Development. This project will be used as a learning tool to develop custom brackets, engine mounts, custom aero/bodykits, interior peices and more, which over the next few years should get developed and sold on an online store or through contacting me. In the future, fully adjustable trailing arms, coilovers, and adjustable front suspension would be the goal to be able to learn and apply these findings to suspension tuning/setup.
*Hover/Select Image for Description
(2024 - Current)

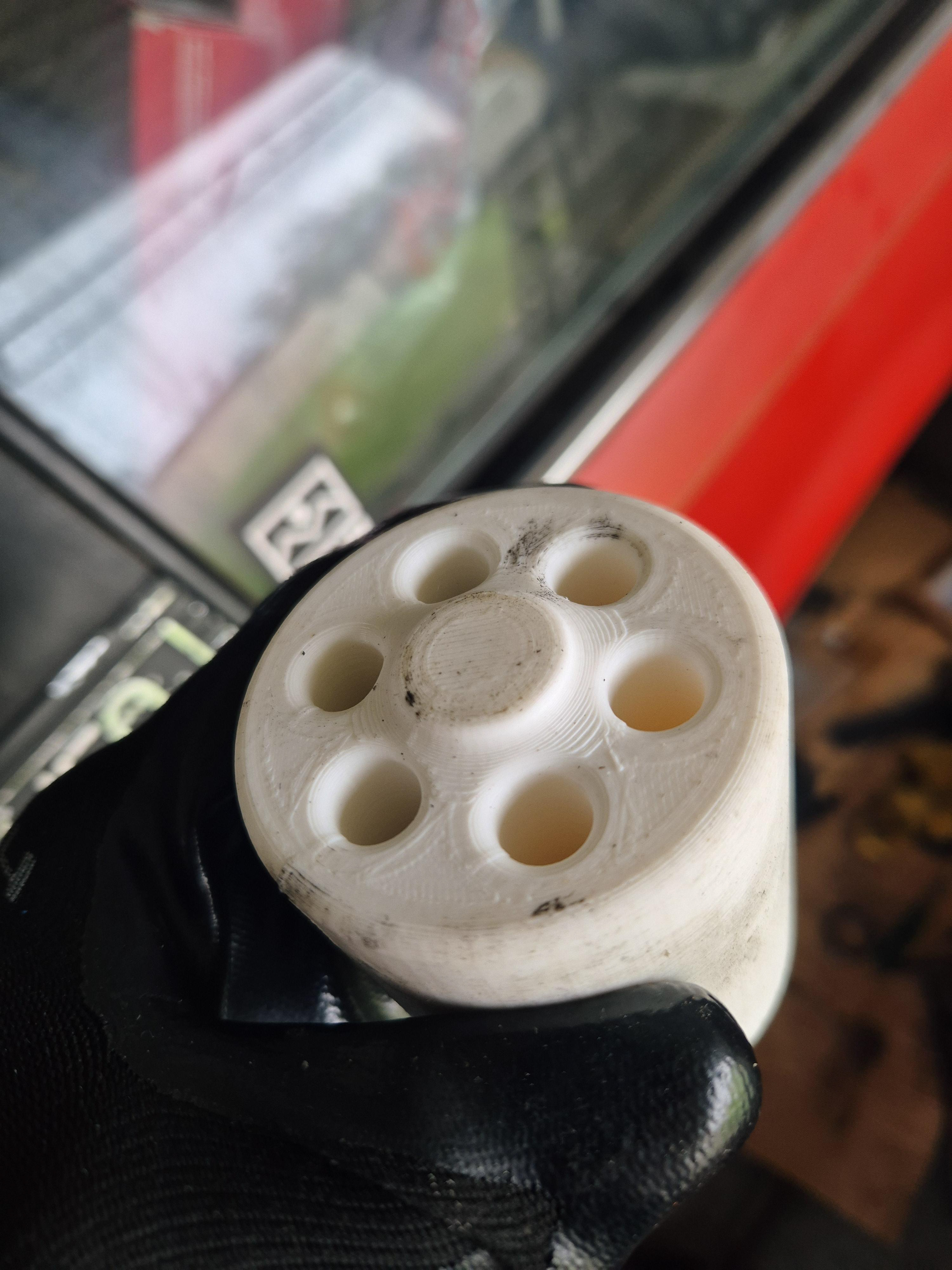

No damage from repeated hammer strikes

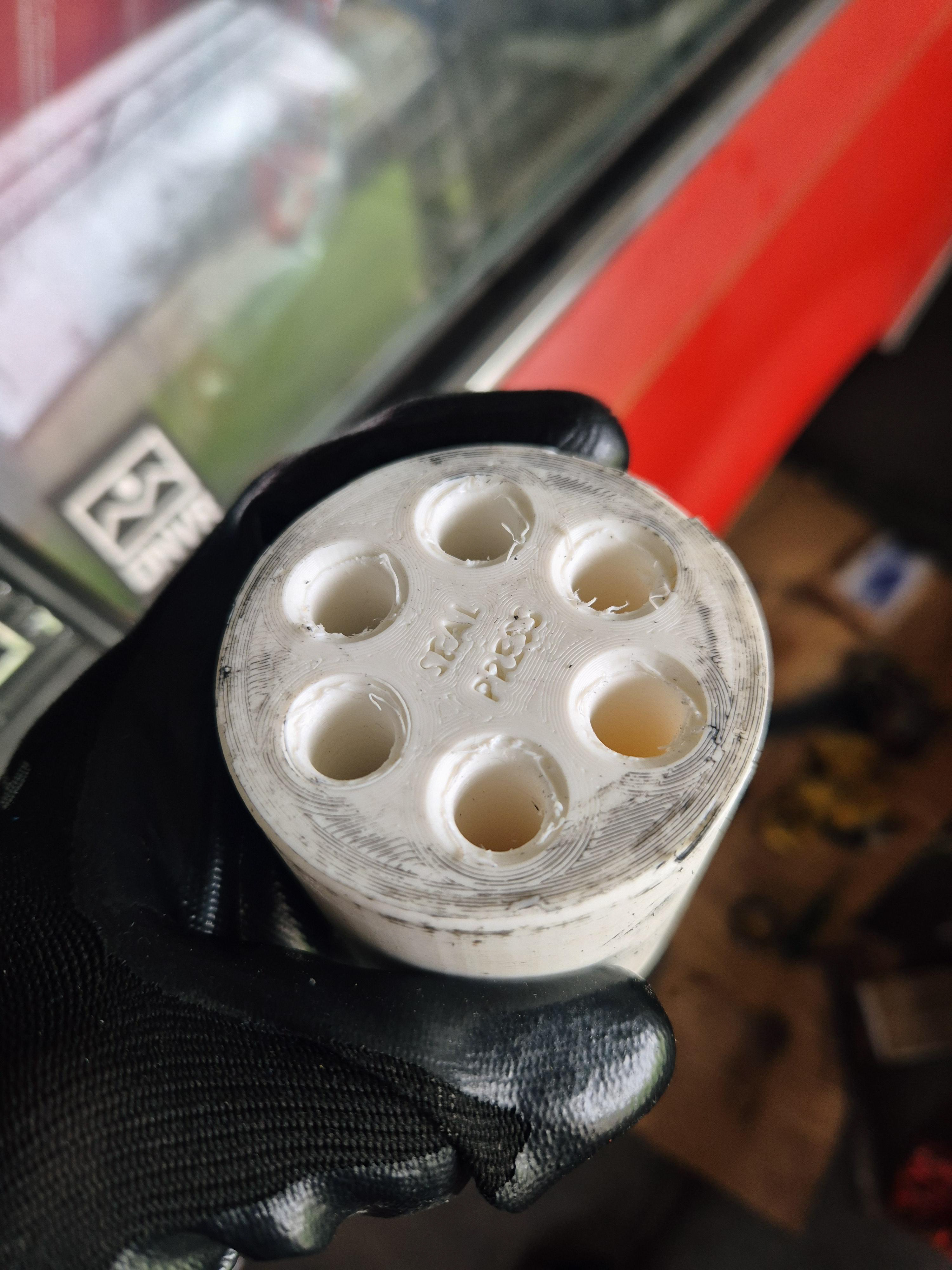

Apart from old support stringing, no damage after use

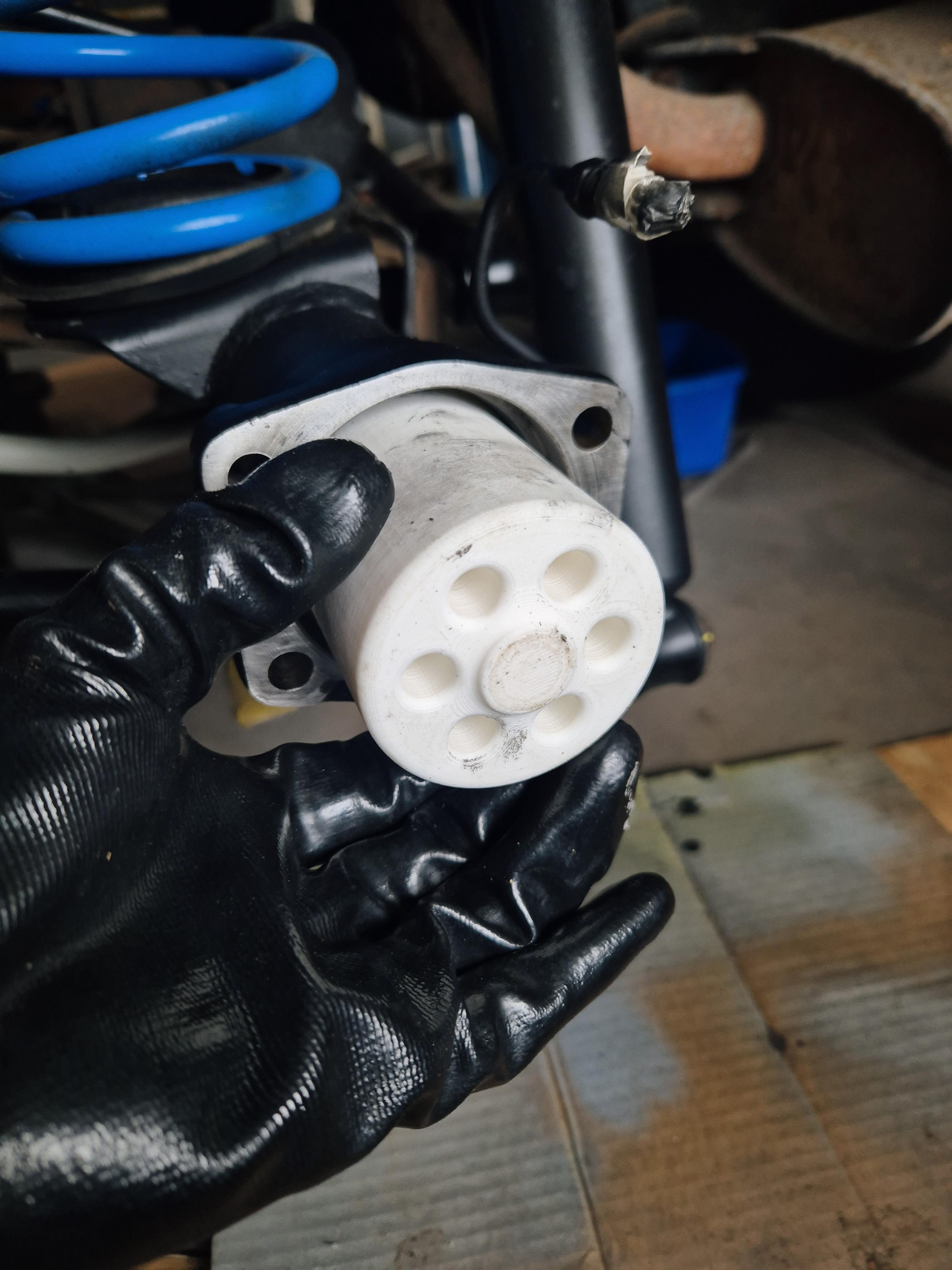

Perfect fit for the driver tool

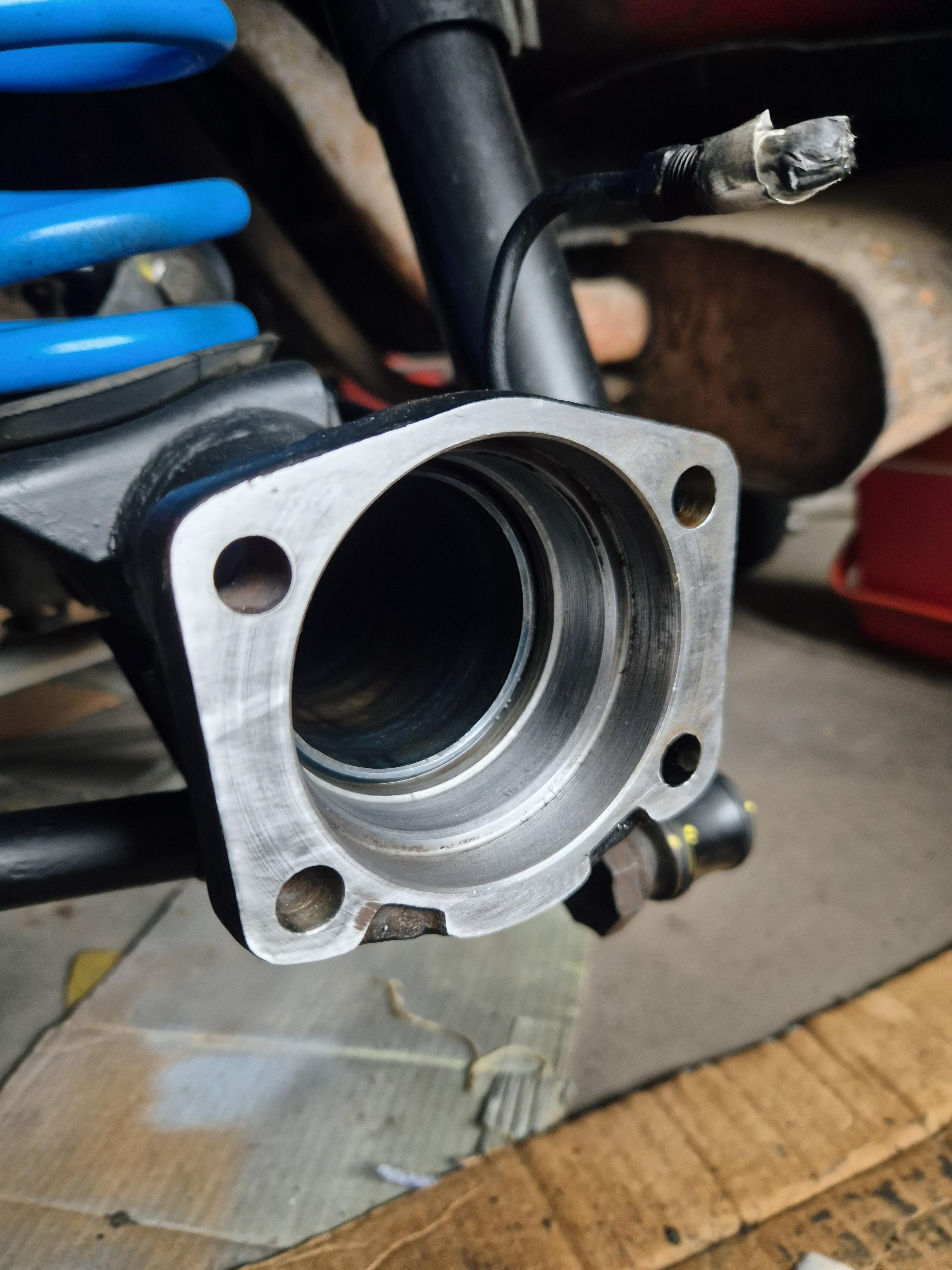

400G & Wet Sanding

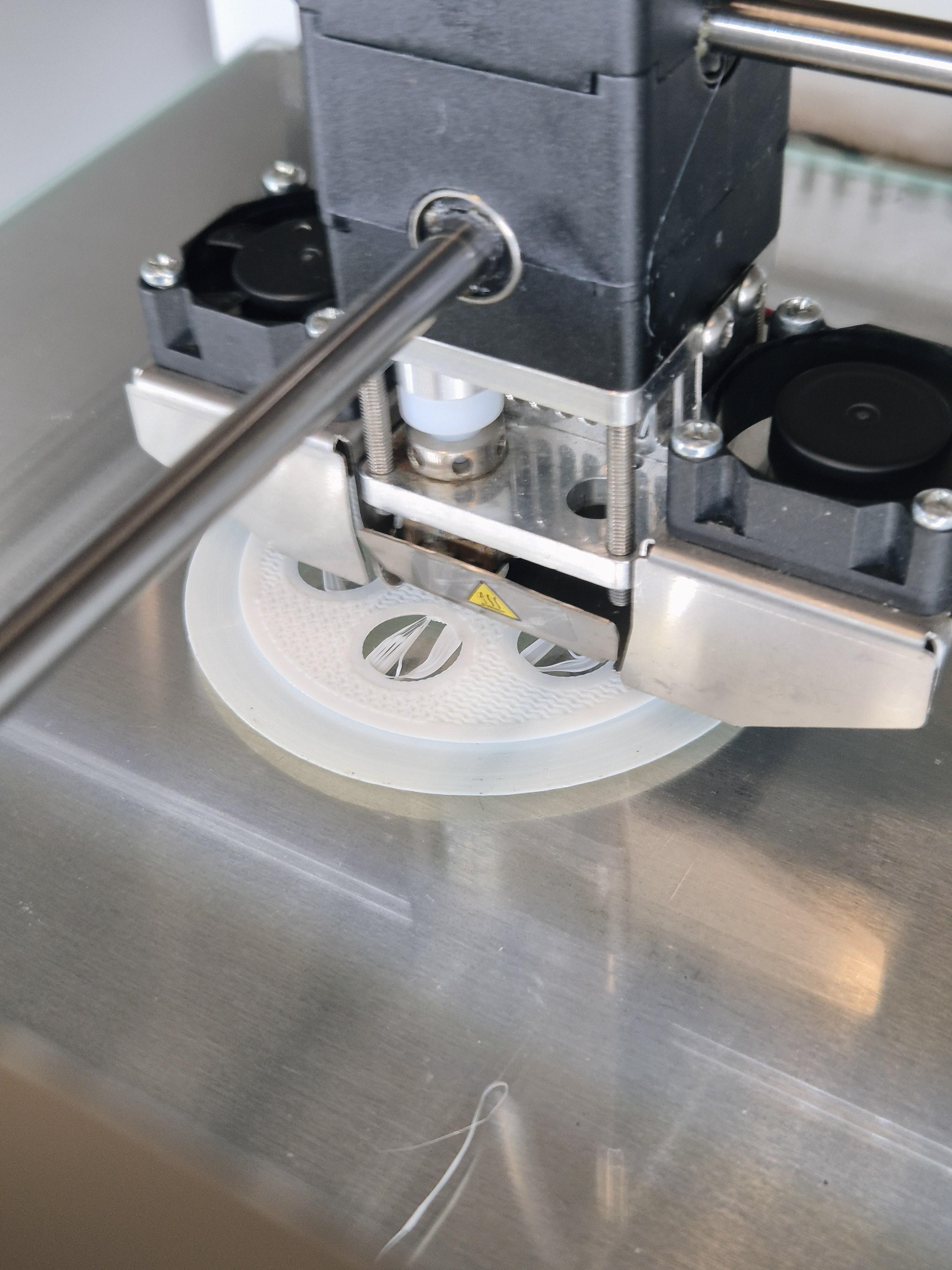

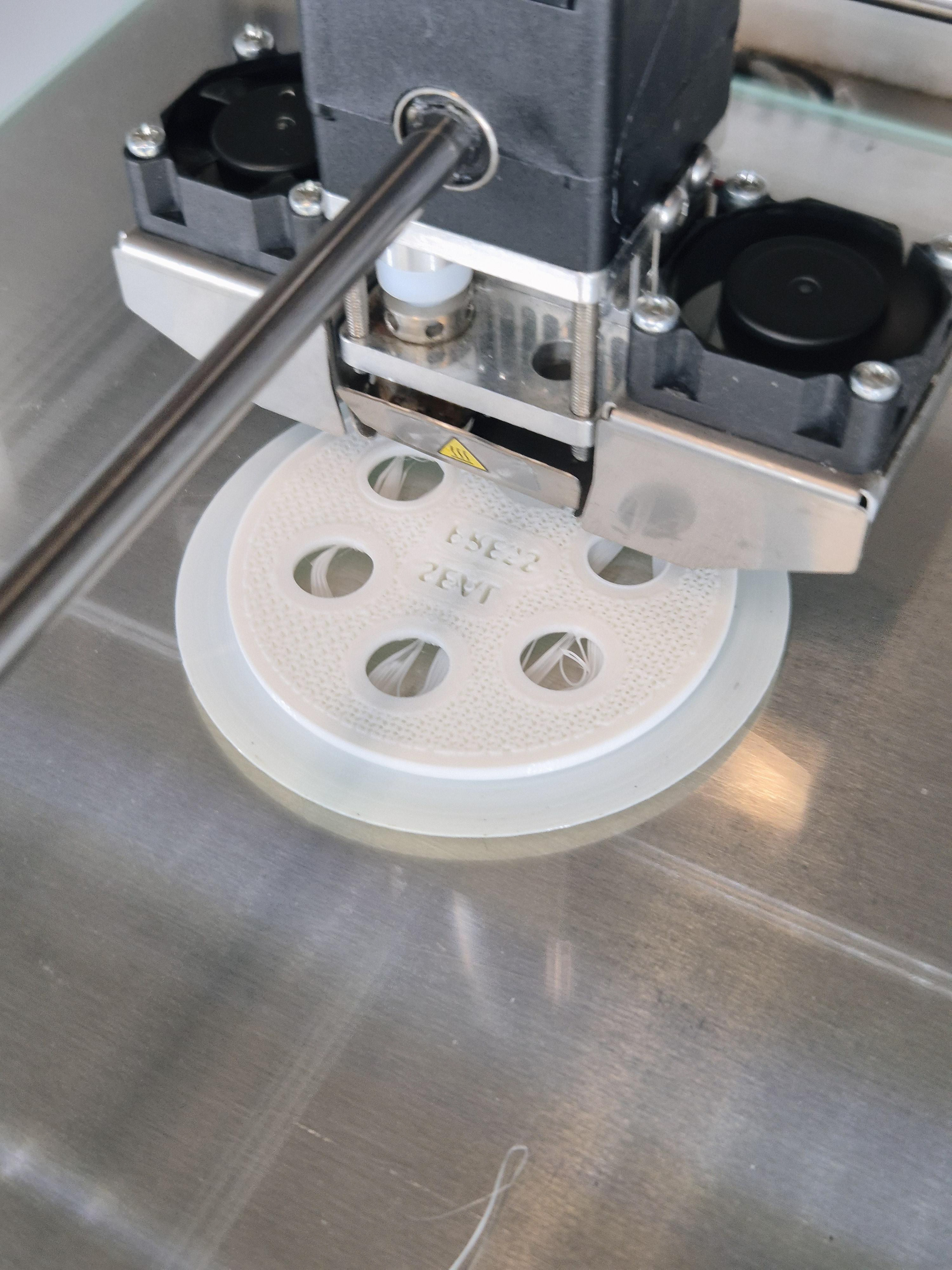

3D Prinitng The Seal Driver

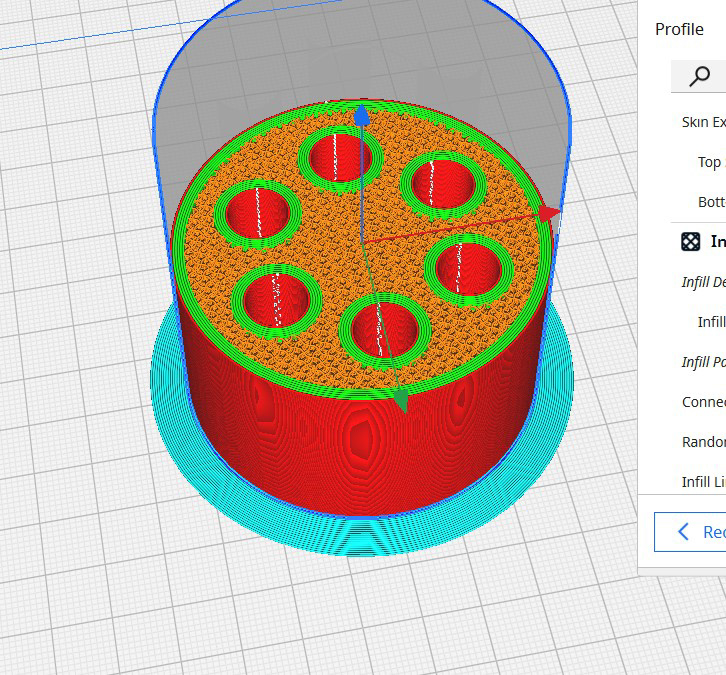

See my other peojects for more in-depth into V1 of the Driver

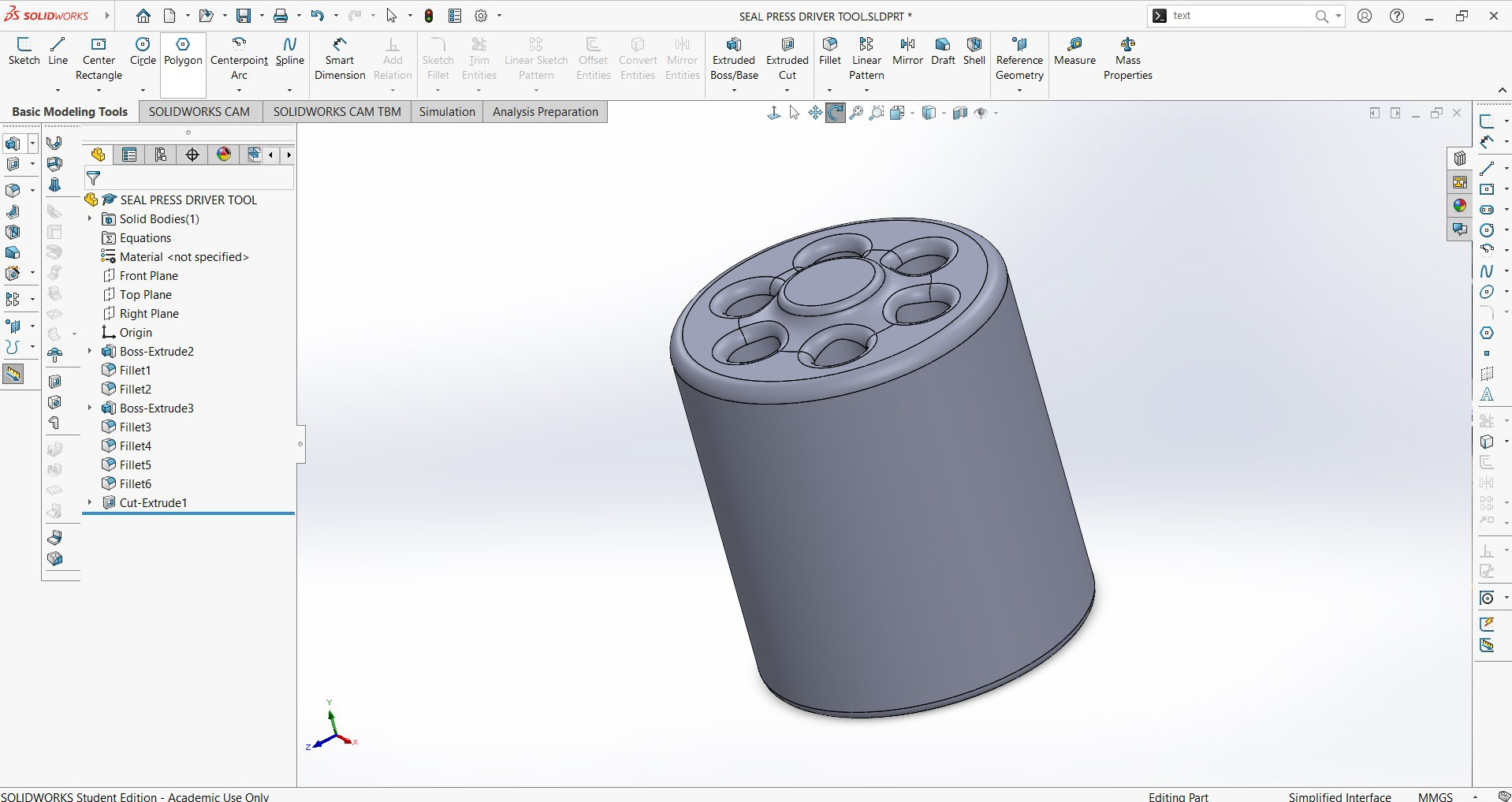

Designed a light tool (Custom Axle Seal Driver)

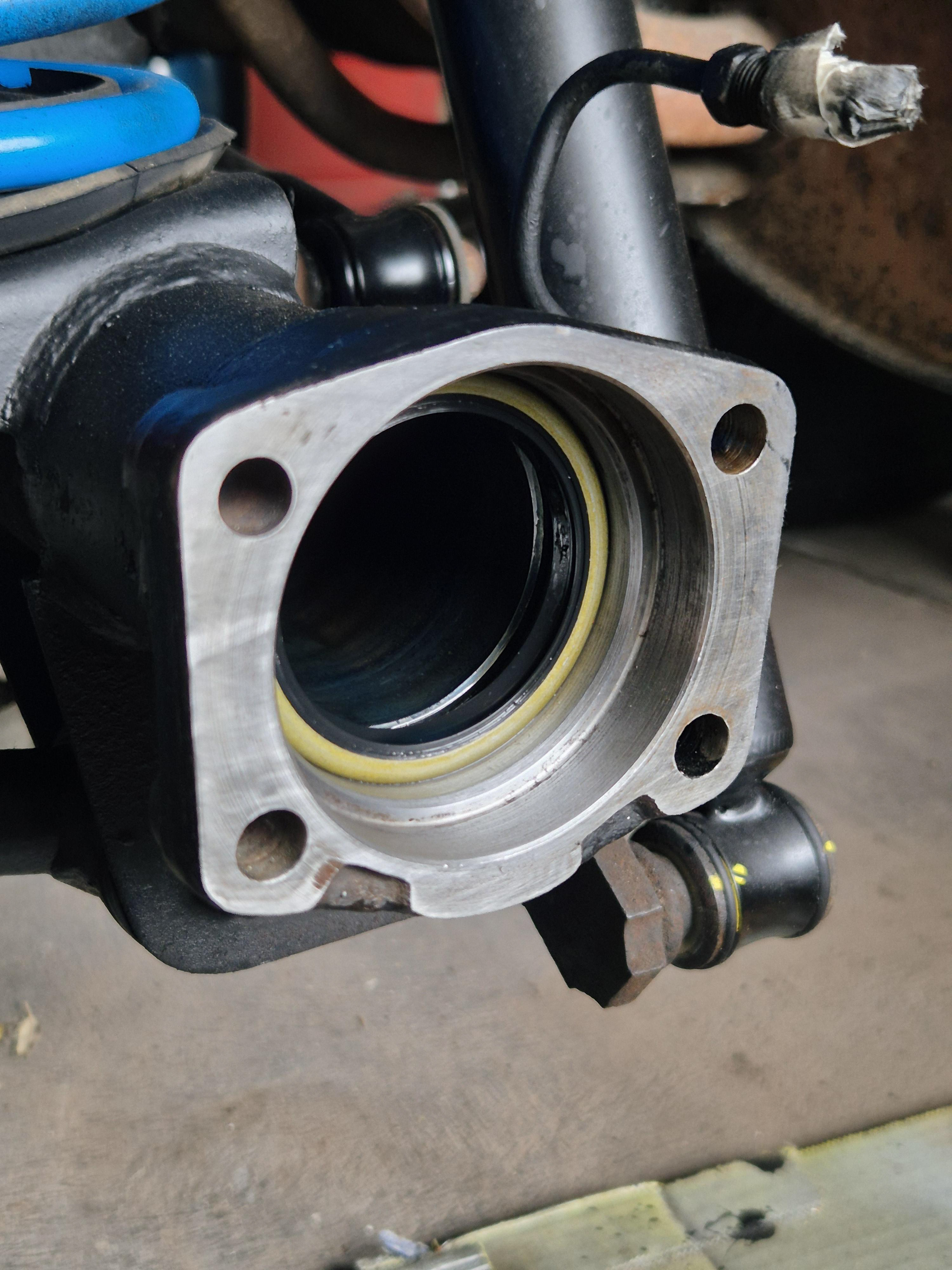

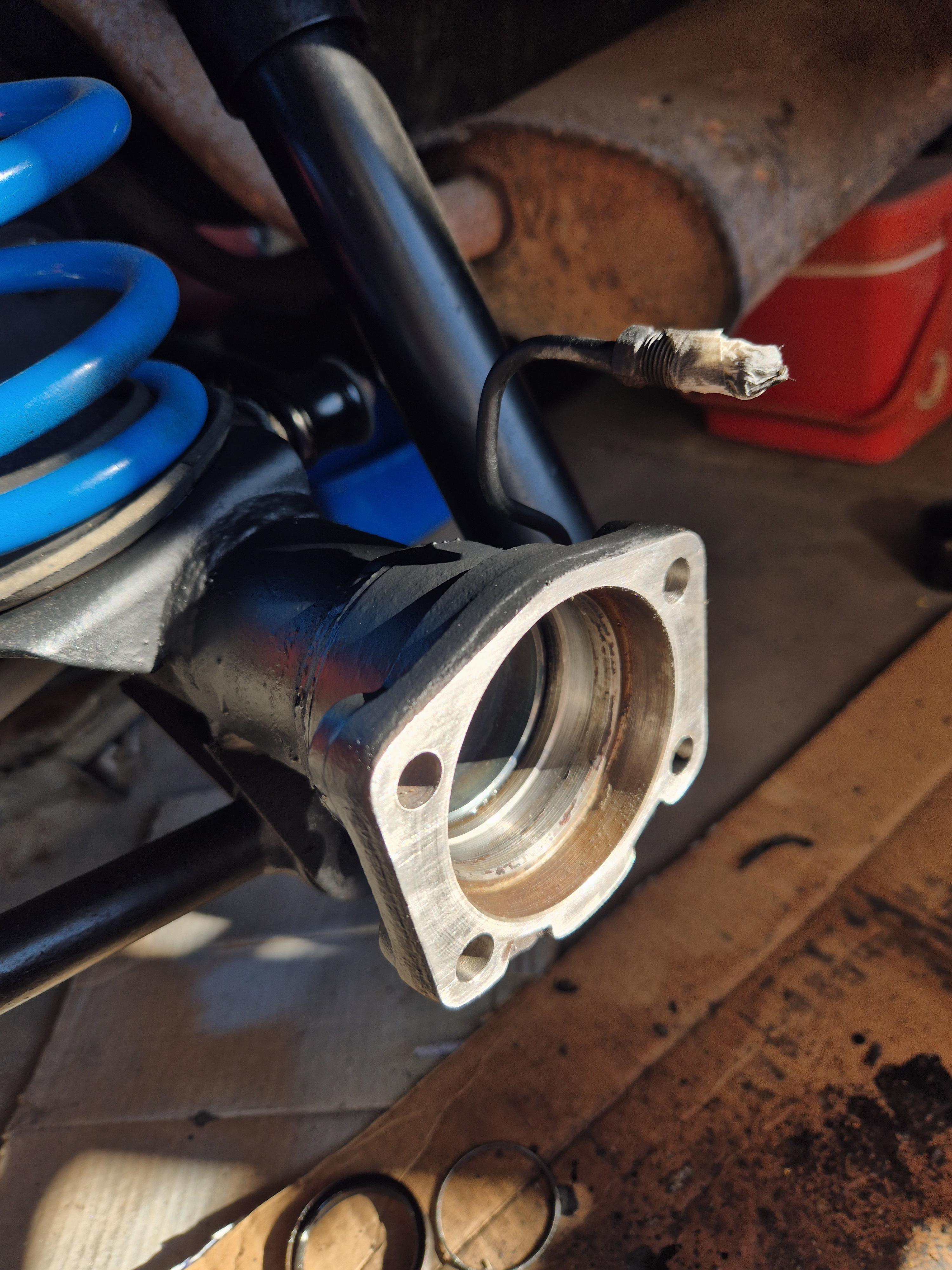

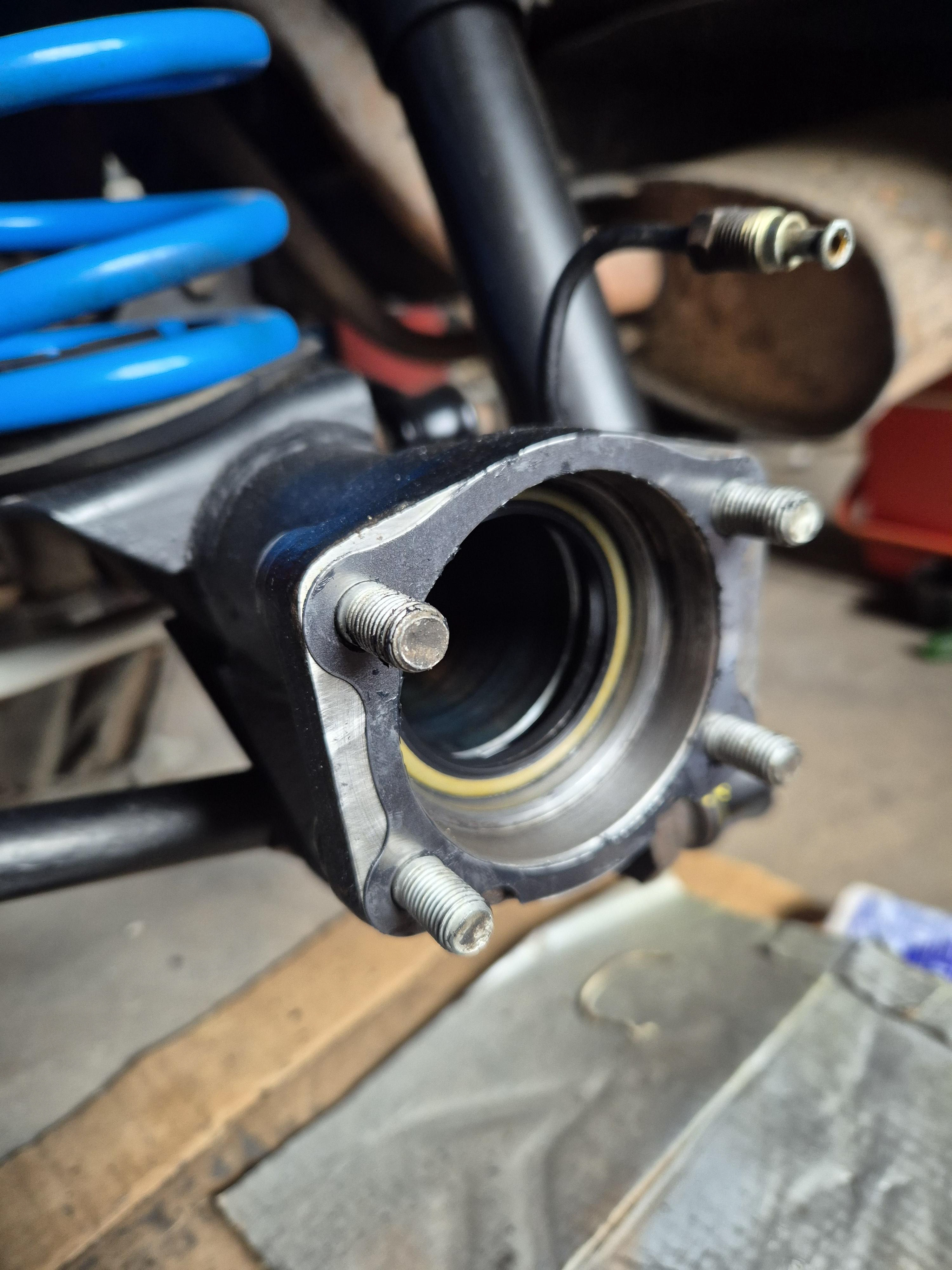

Painted - Final Result ready for seals, gaskets and axle assembly to go in

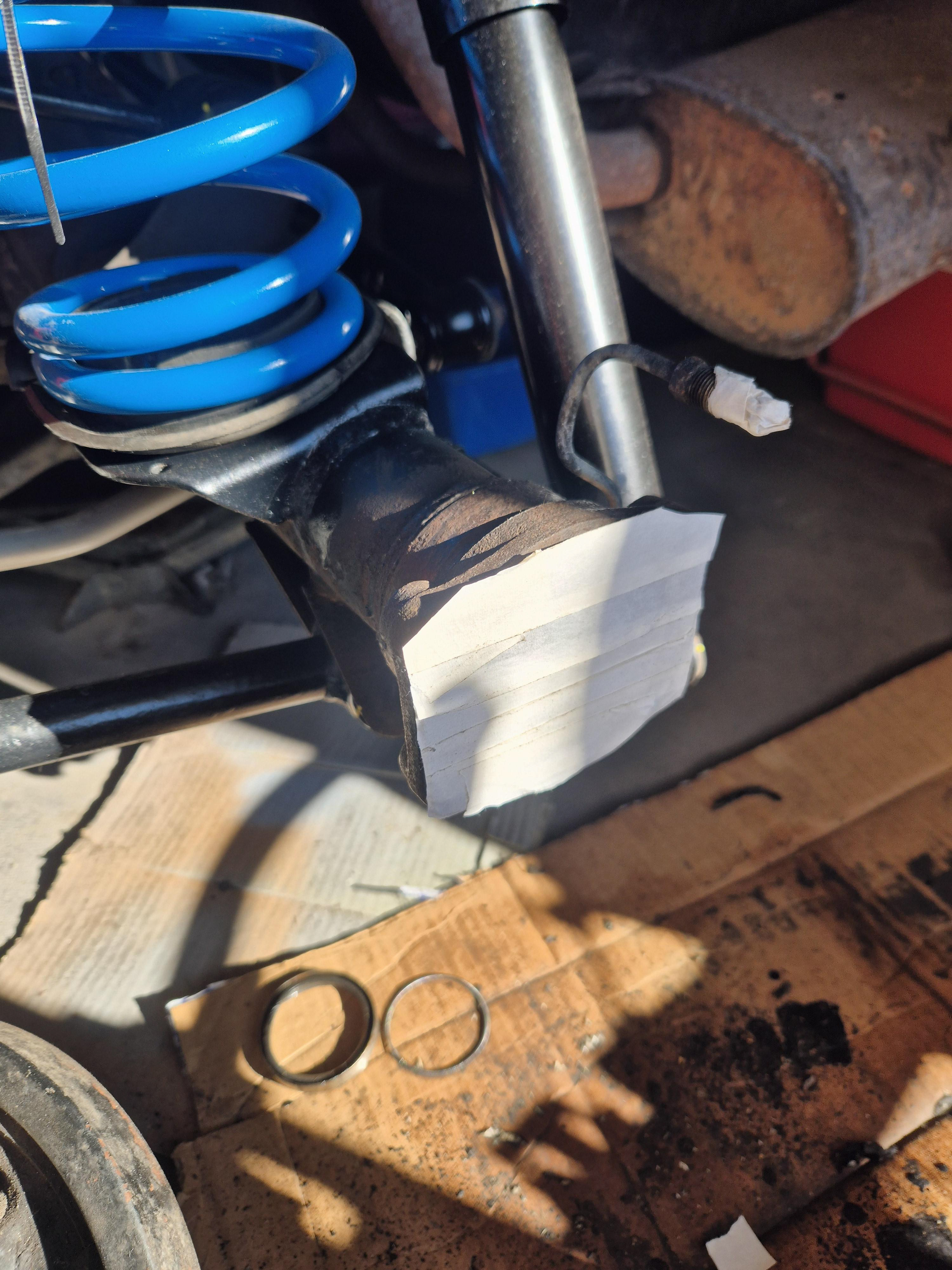

Masked Off for Paint

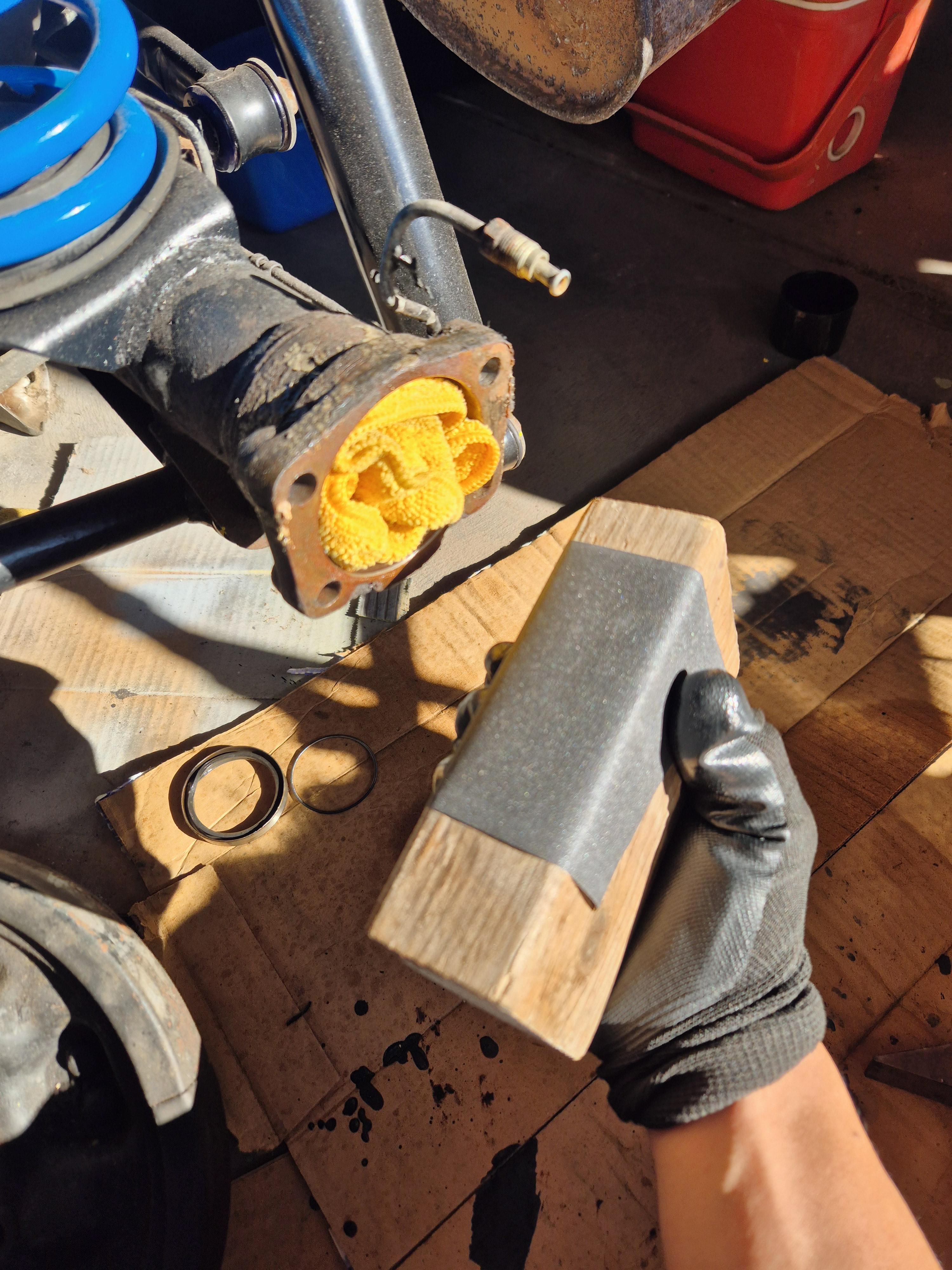

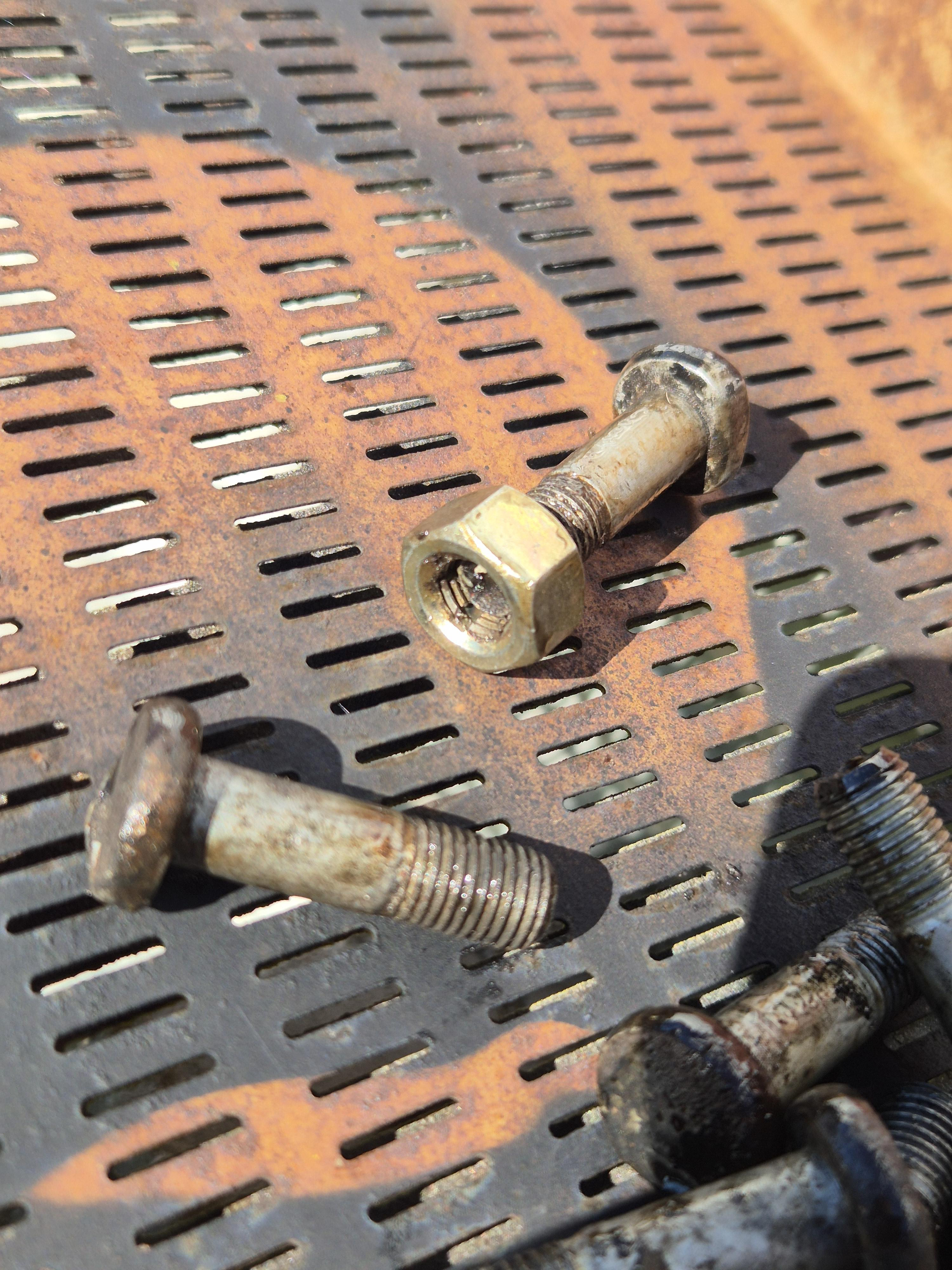

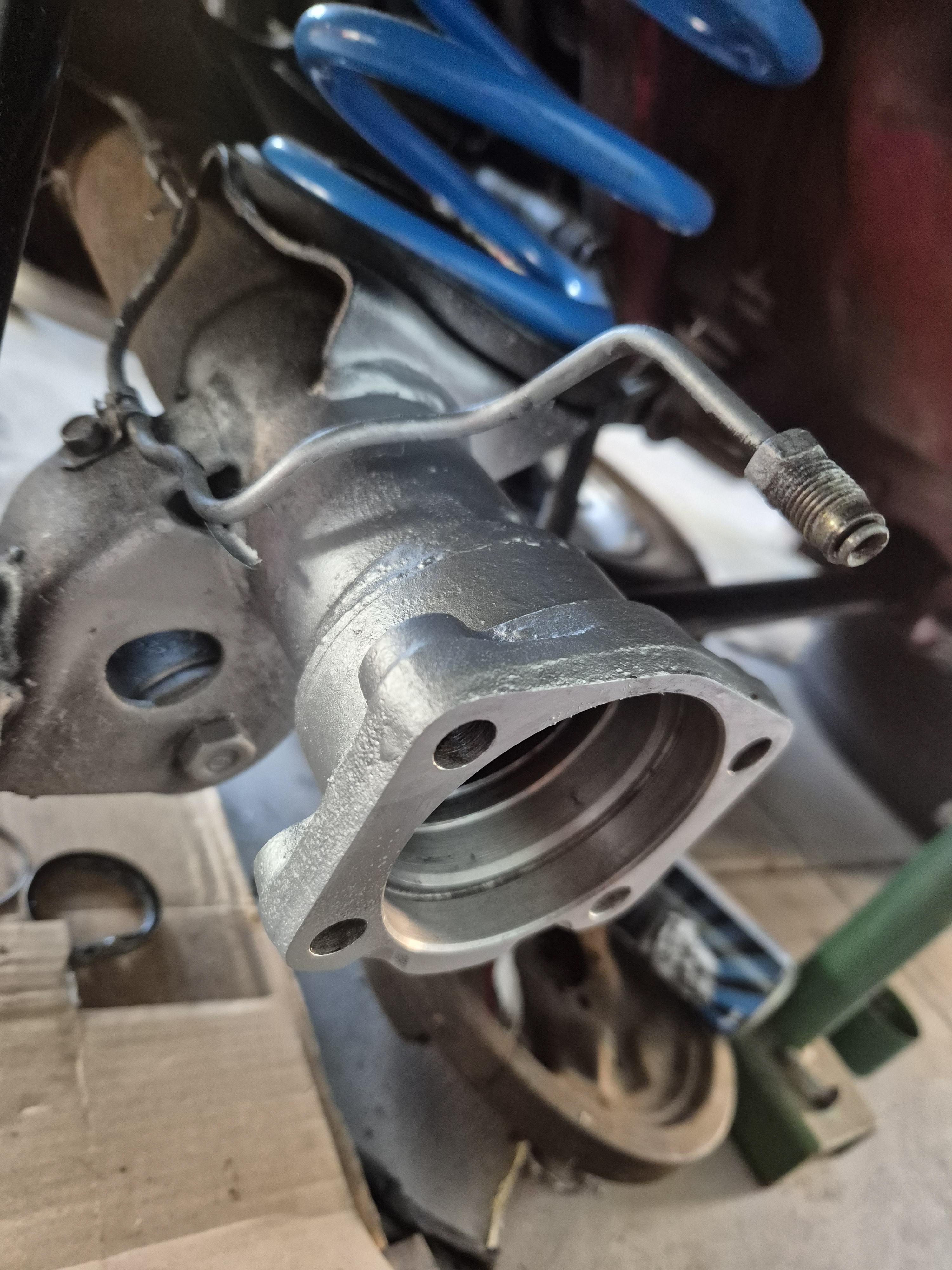

400 Grit surface refinish in preperation for Gasket + FIPG, Thread chased axle bolts and cleaned out the bolt holes

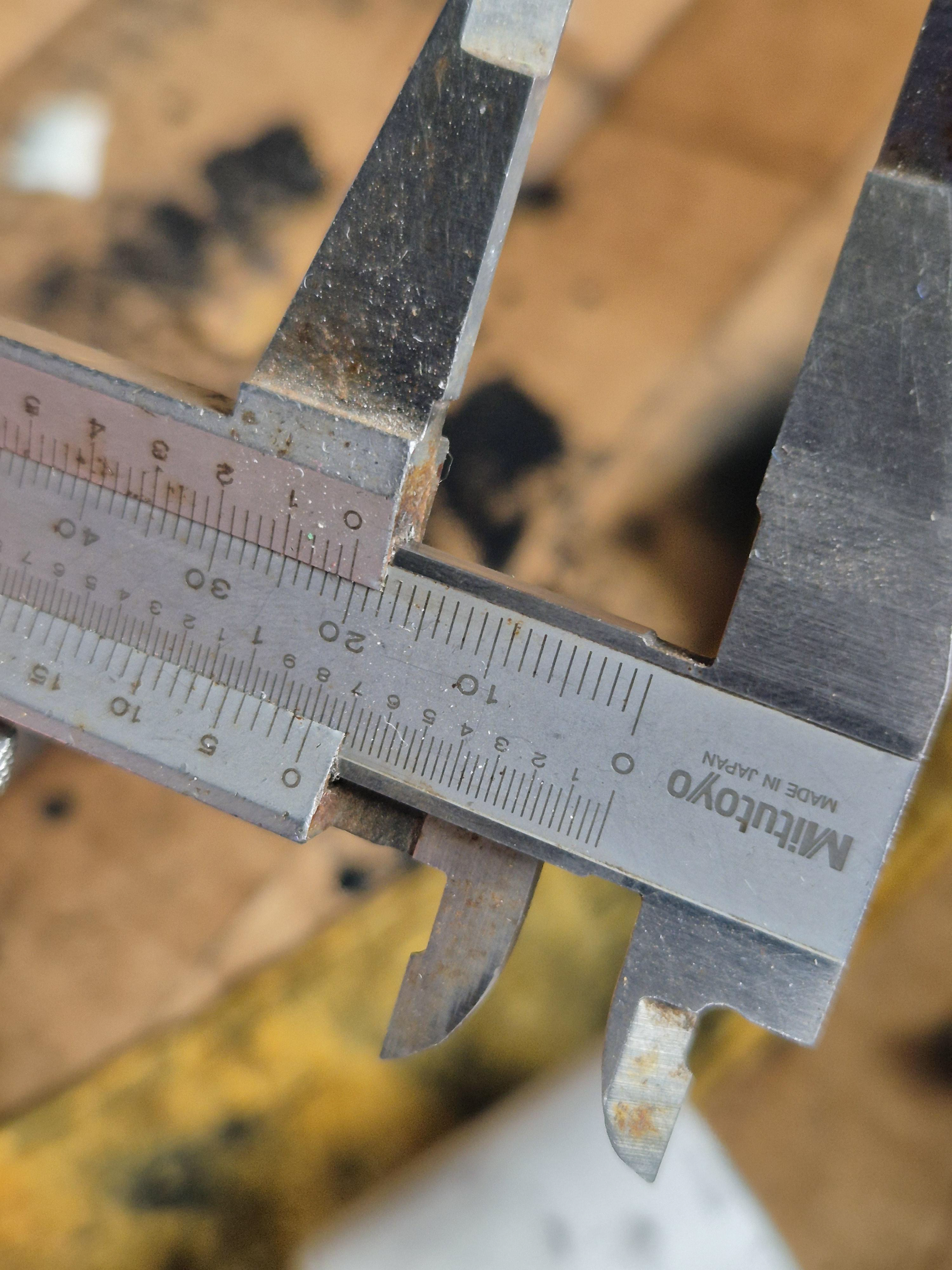

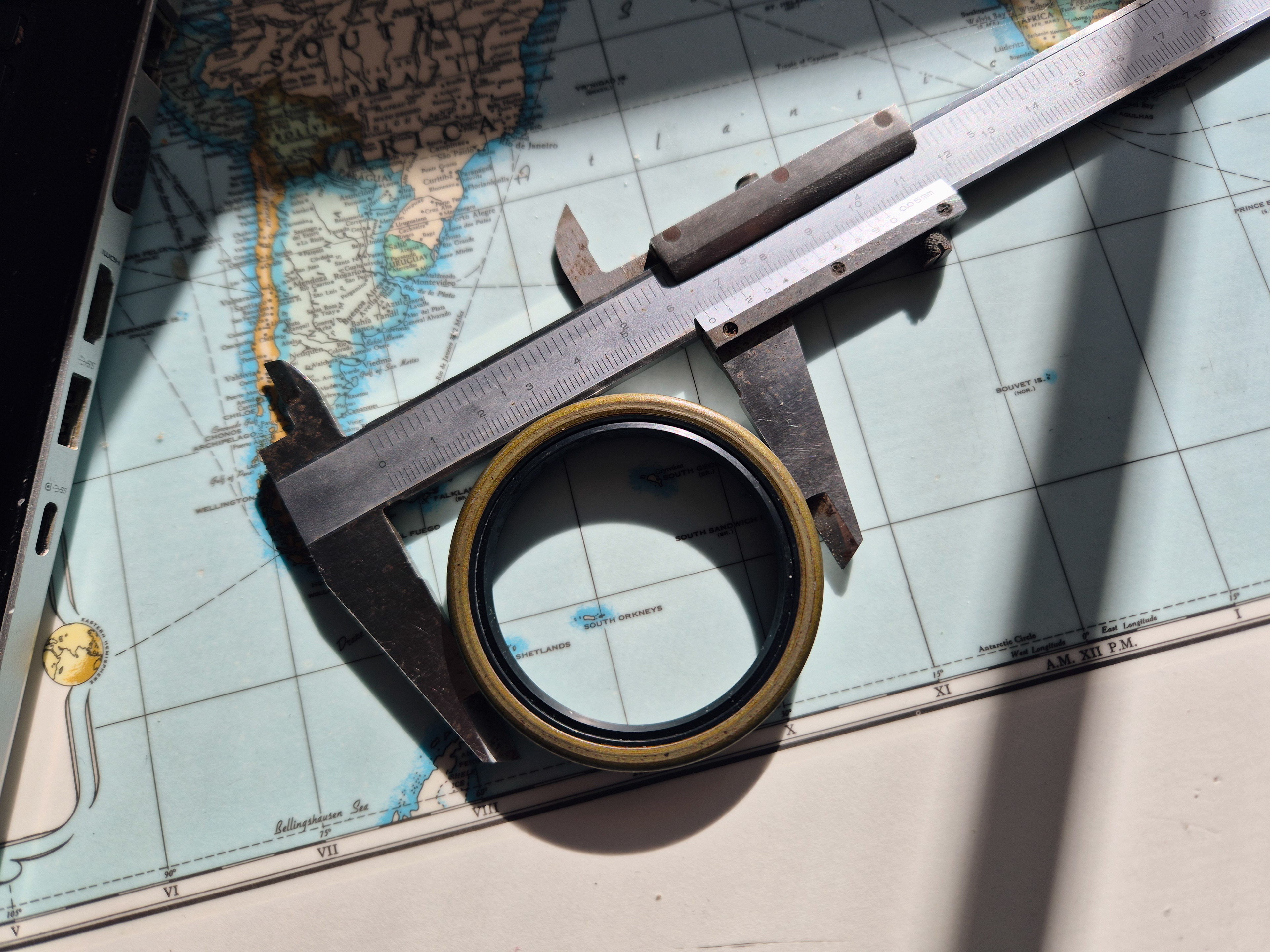

Taking measurements on new axle seals to make a driver tool

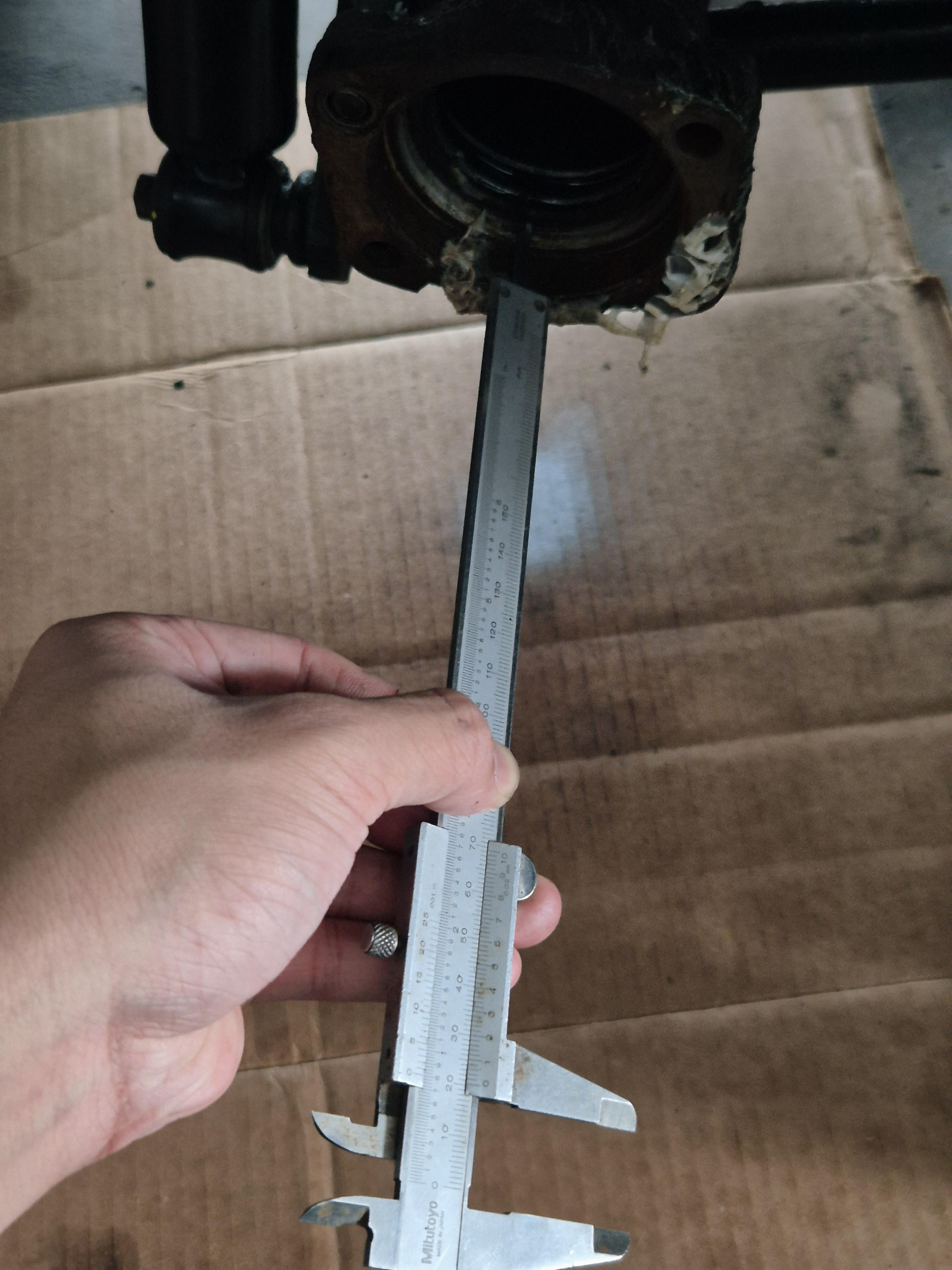

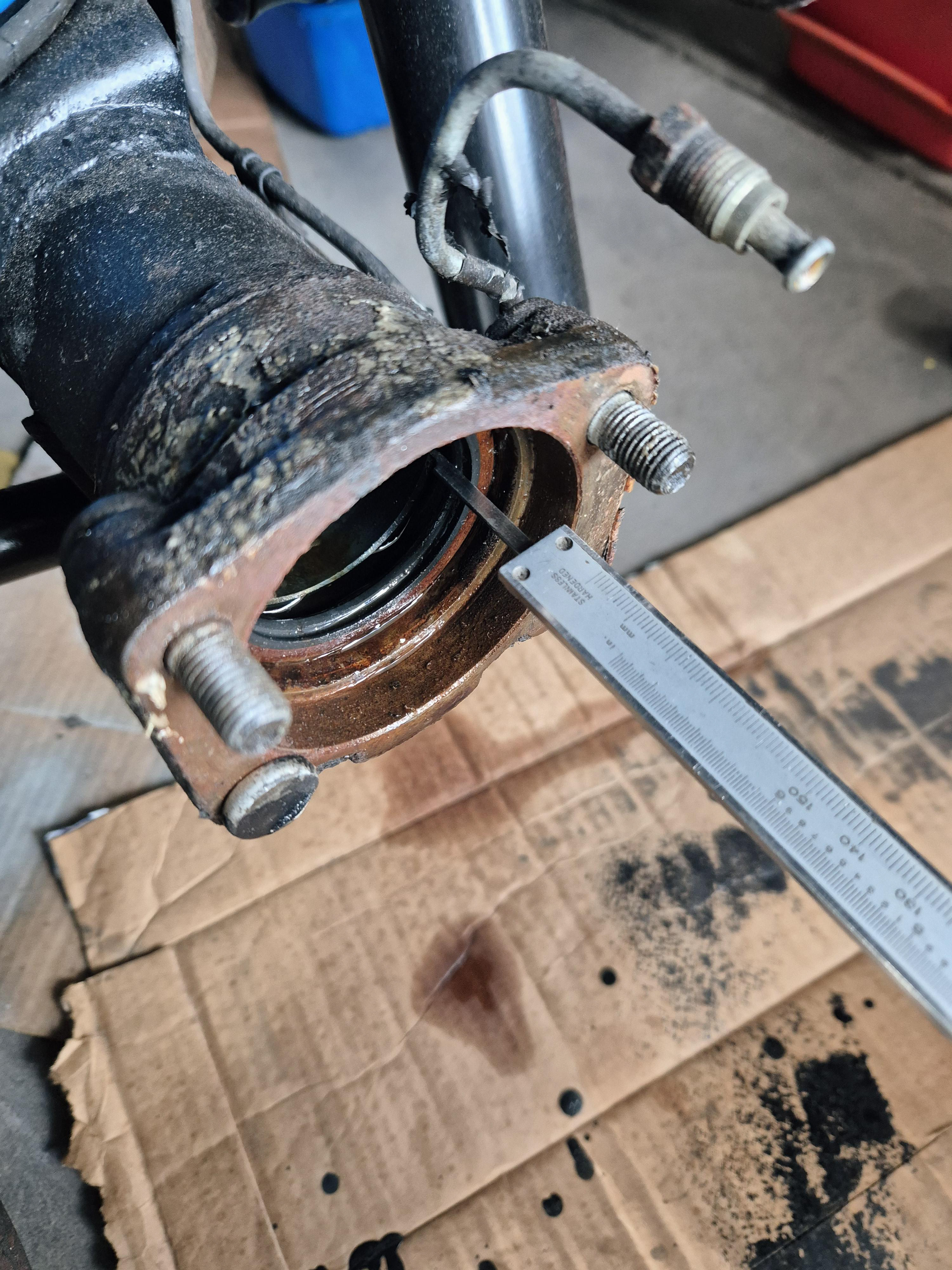

Taking measurements to design a custom seal driver tool

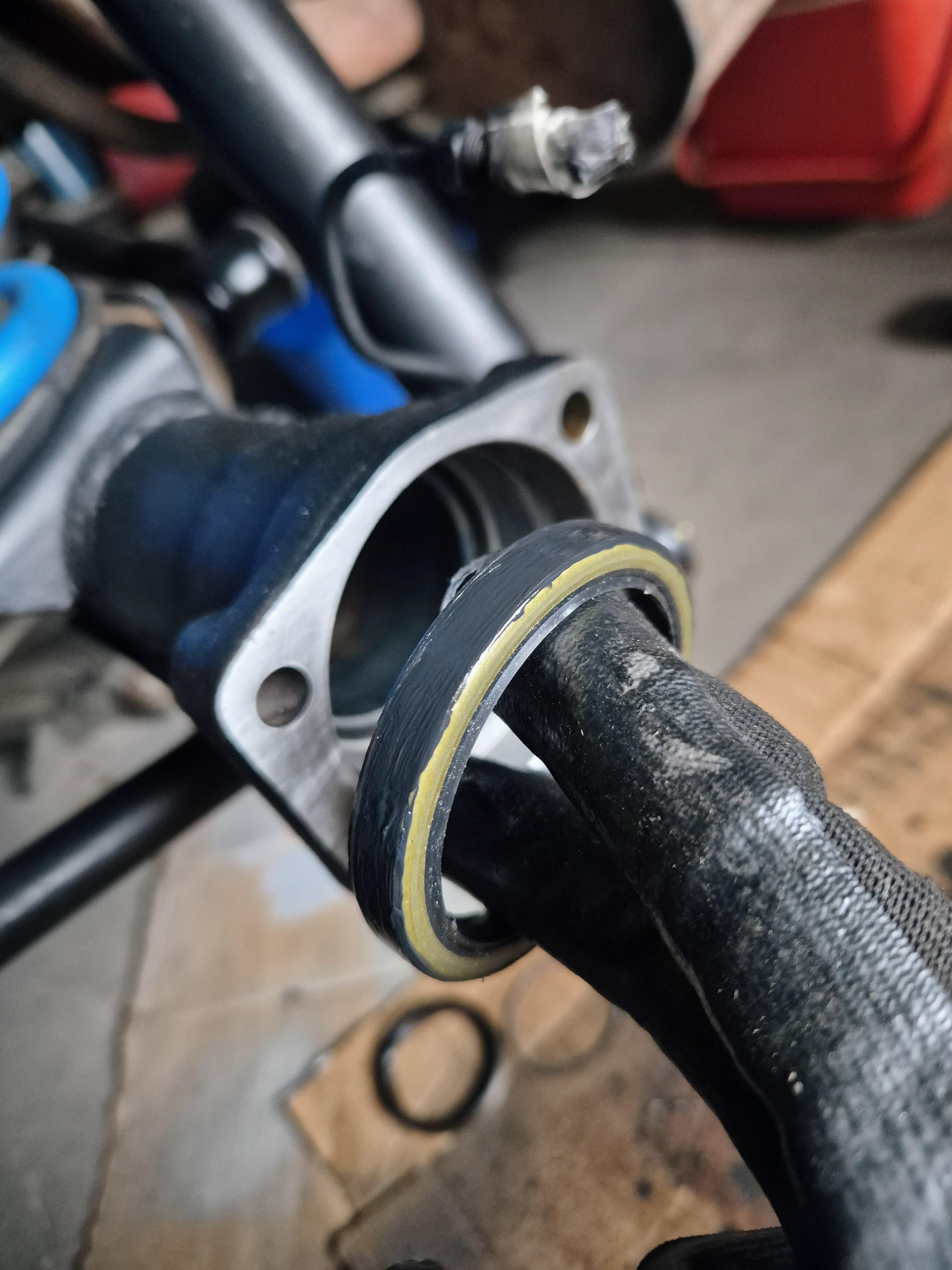

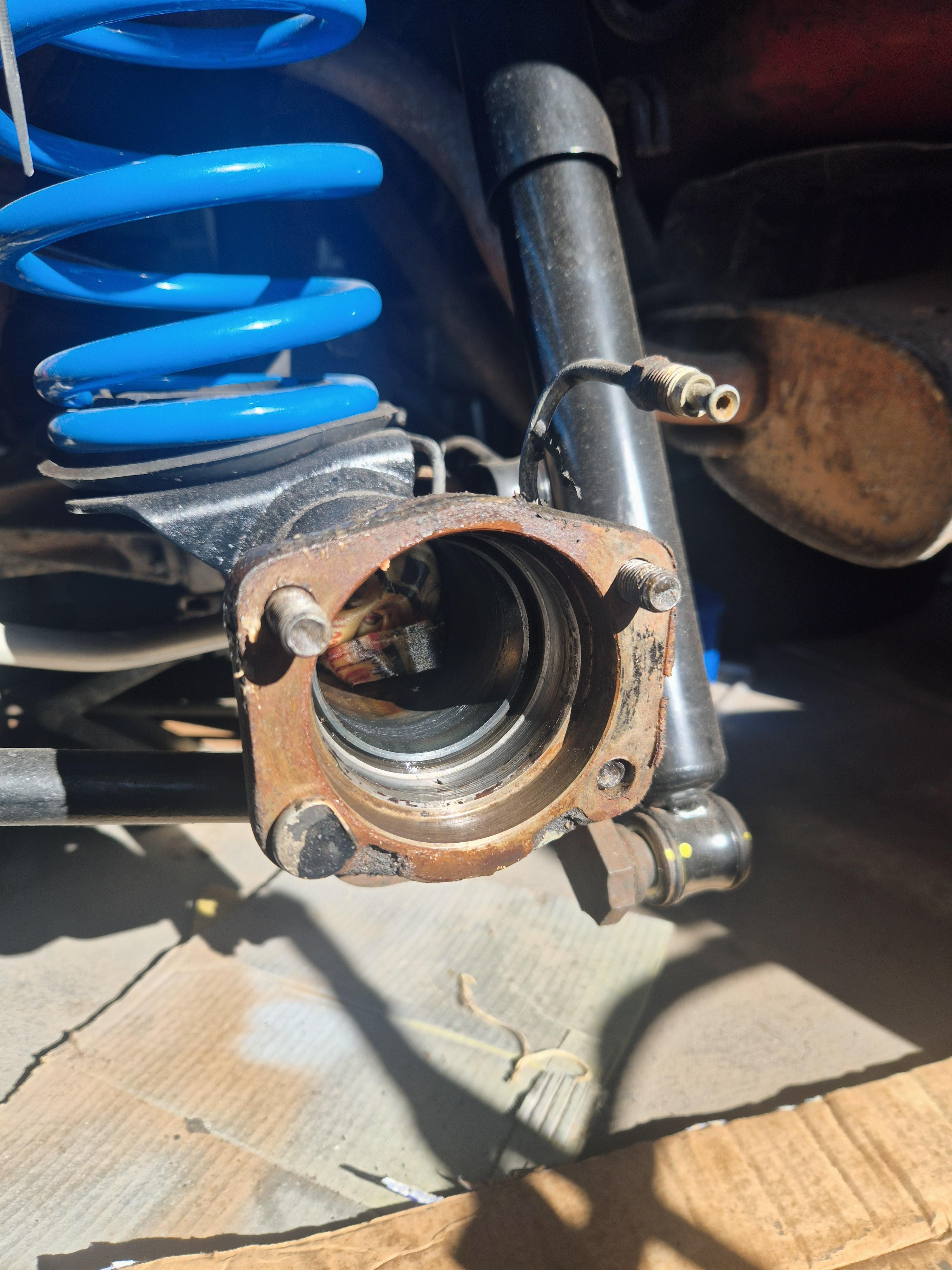

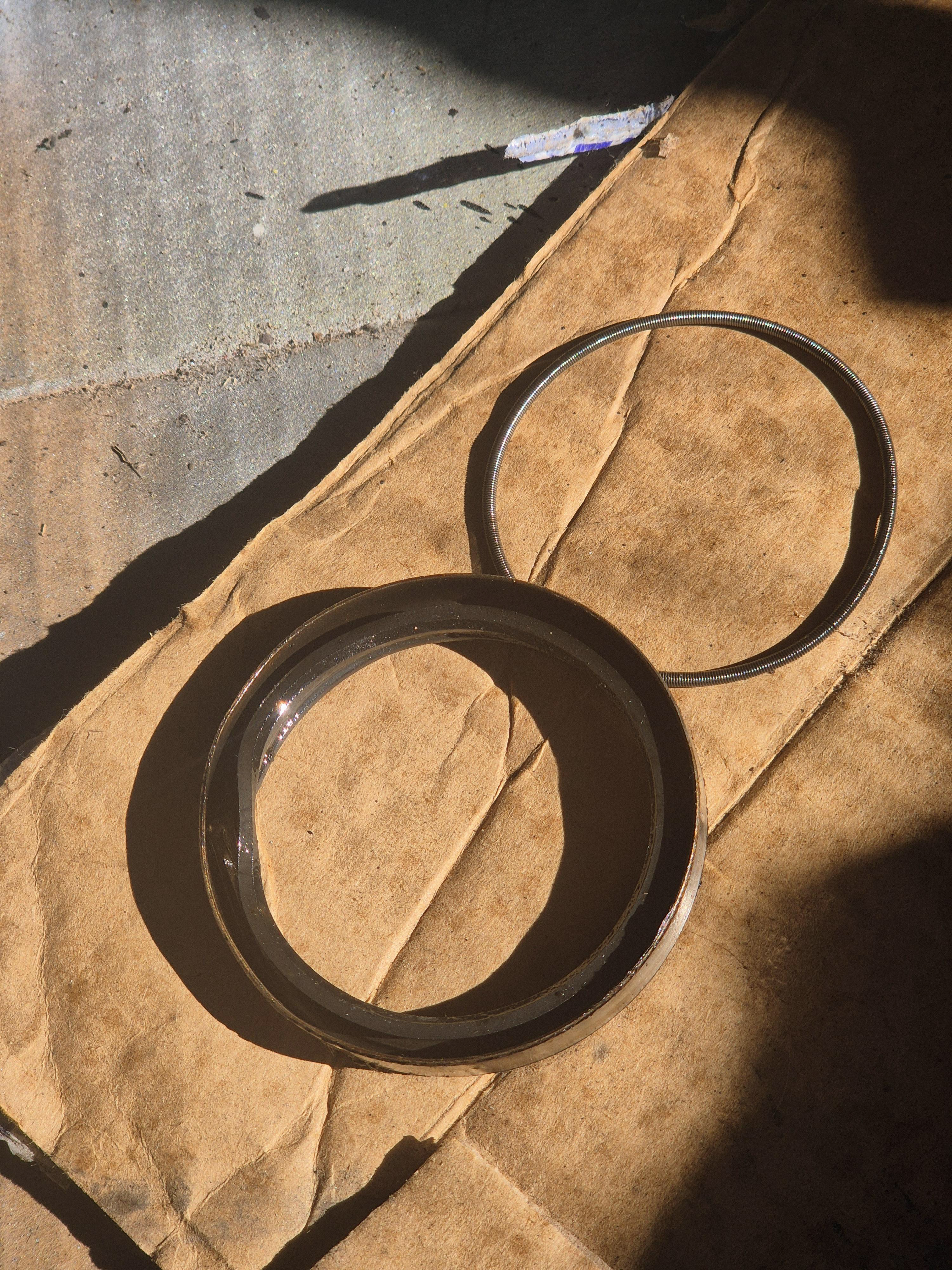

Punched out the old seals

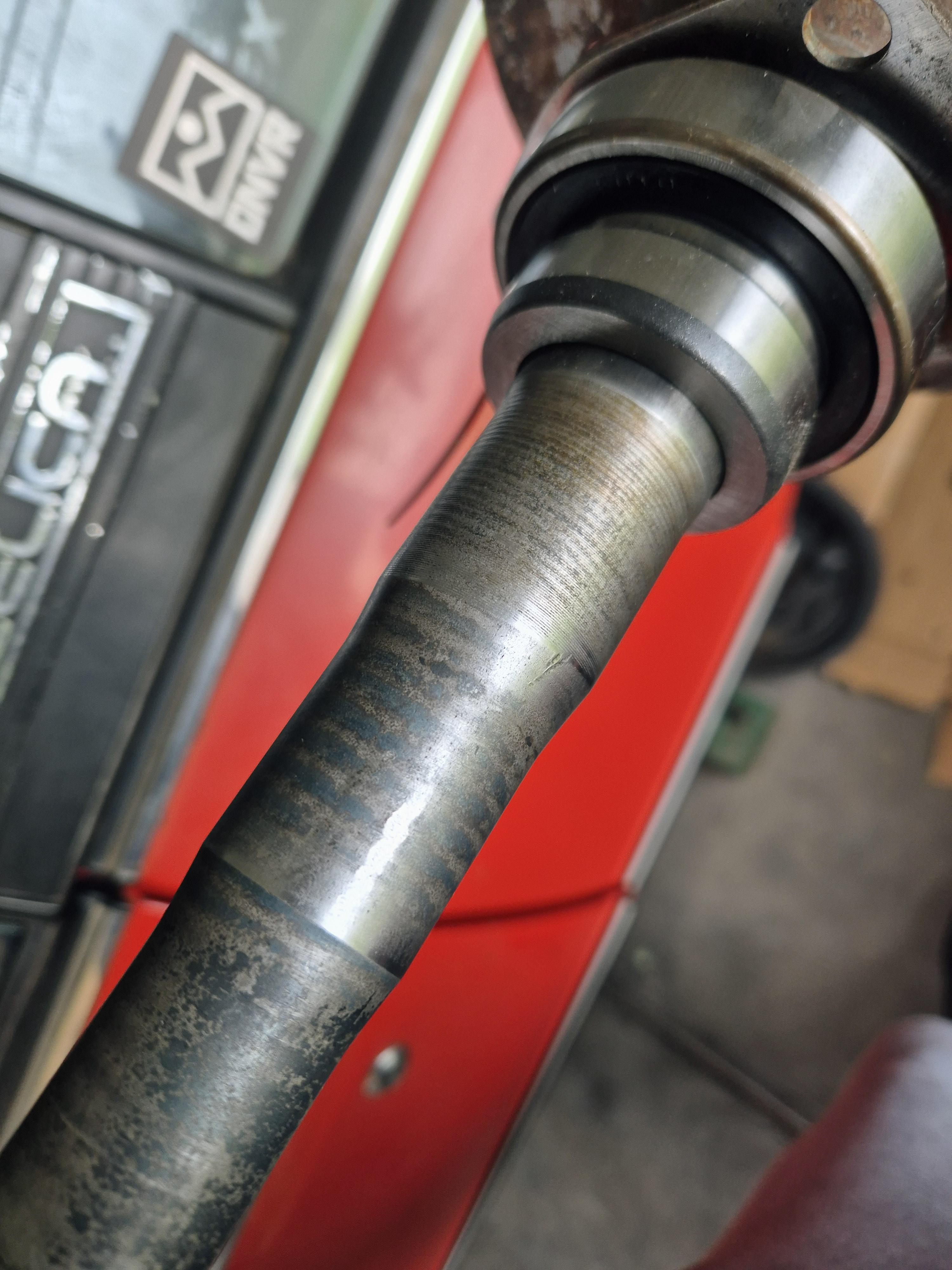

400-600 Grit Sand and Minor polish

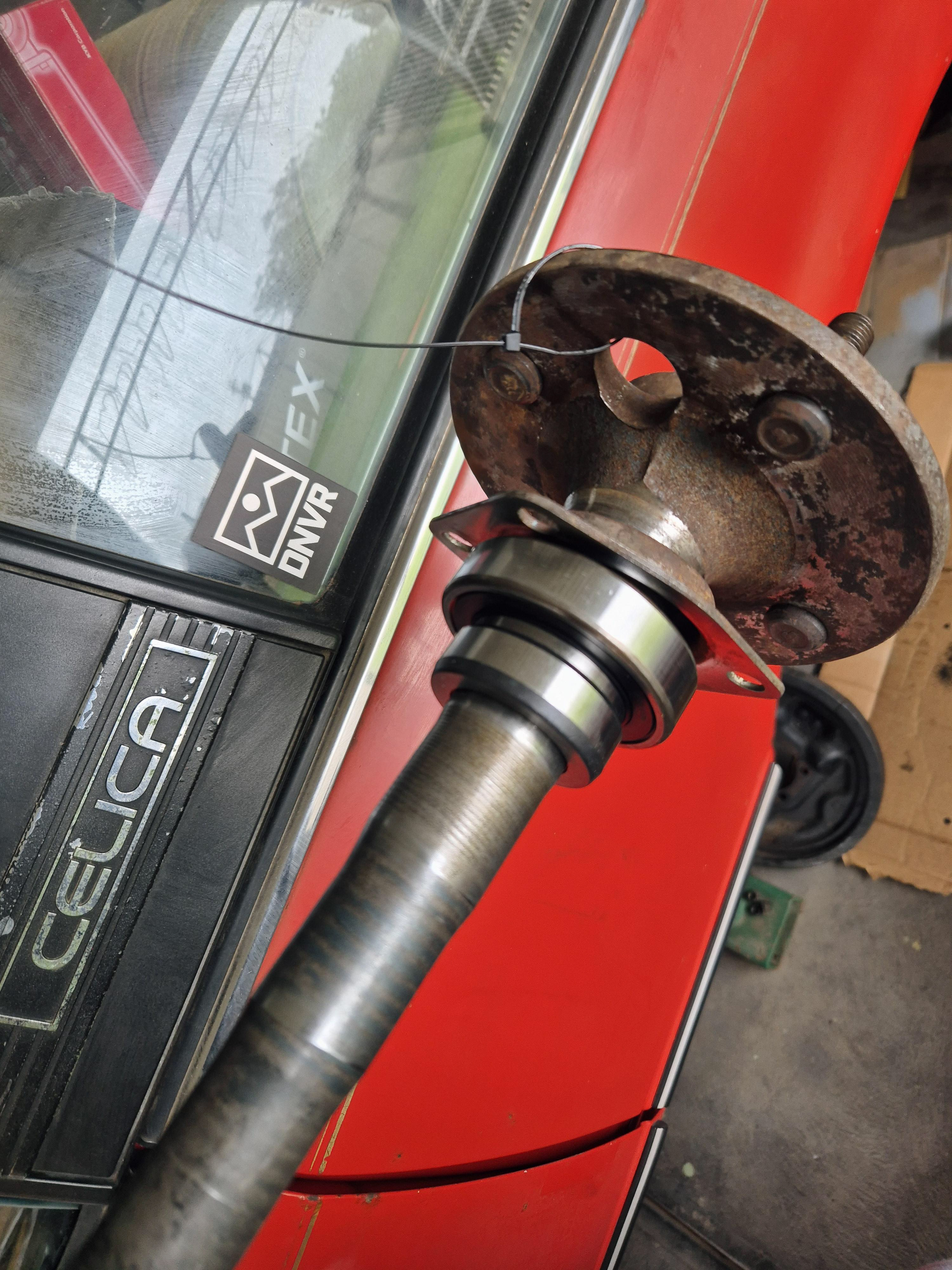

Knicks reduced and were now smooth reducing chance of cracking

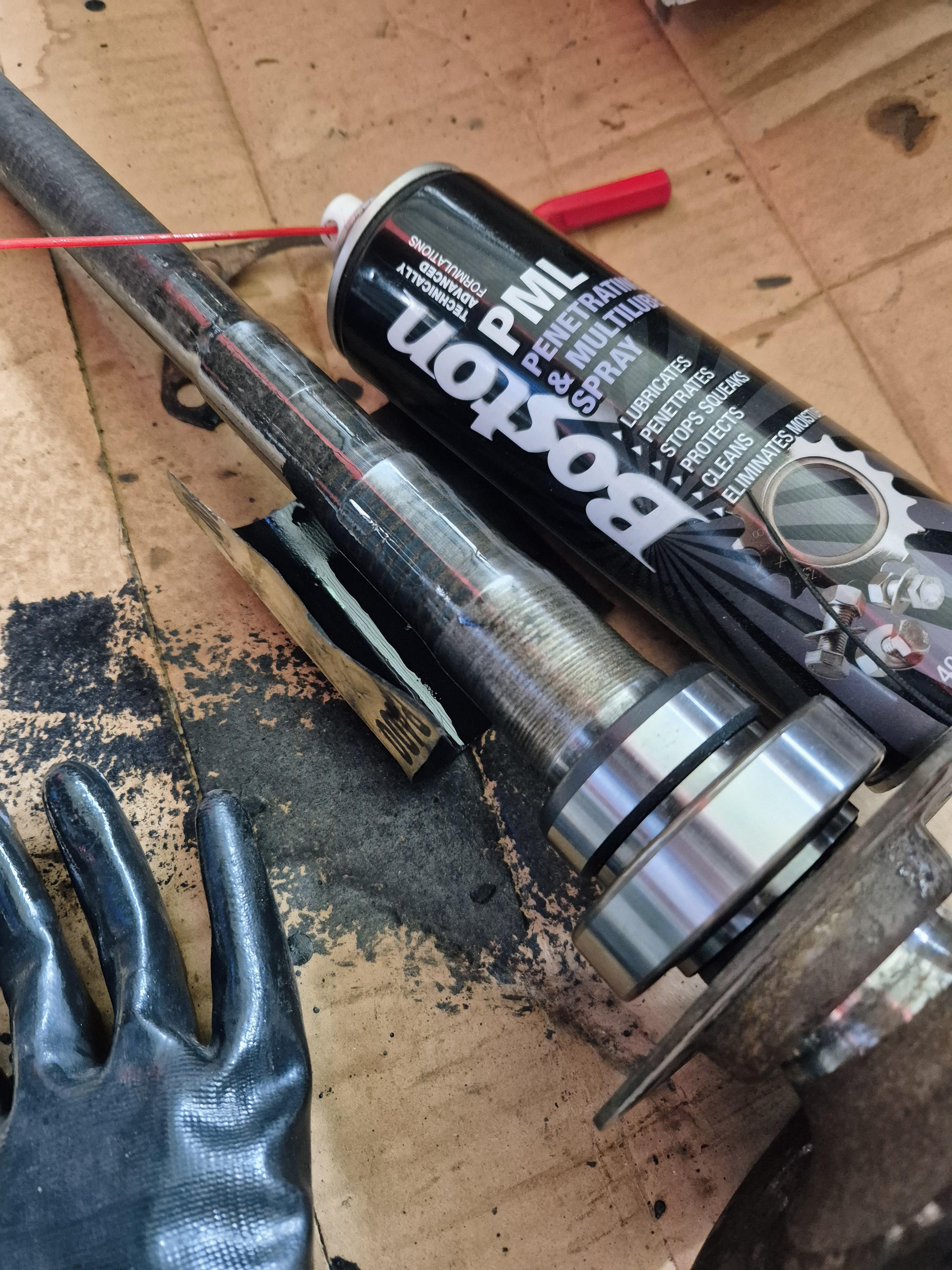

Sanded the shaft doen using 400Grit & Lubricant

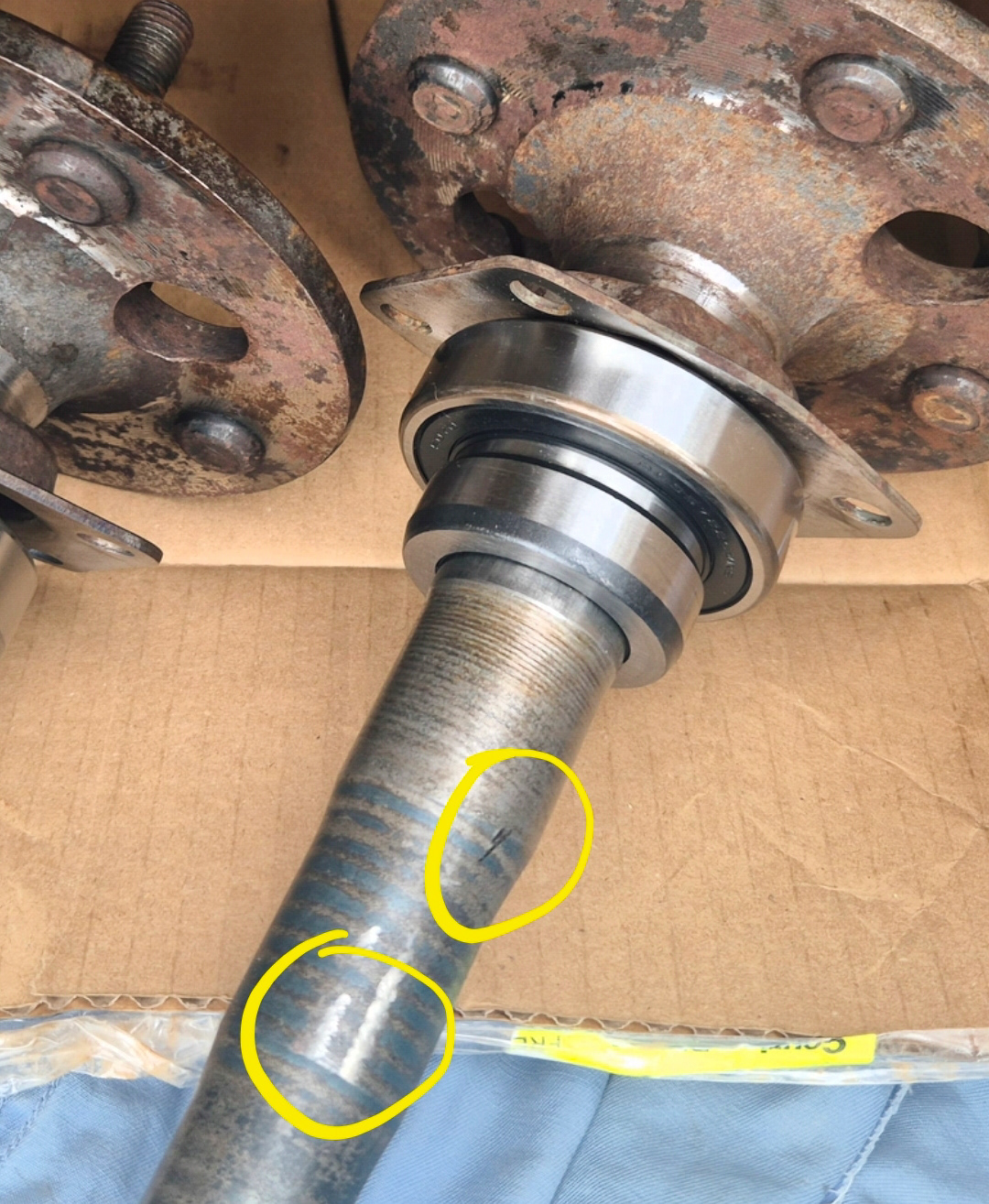

After getting my axles back from the shop they created a few knicks in the shaft

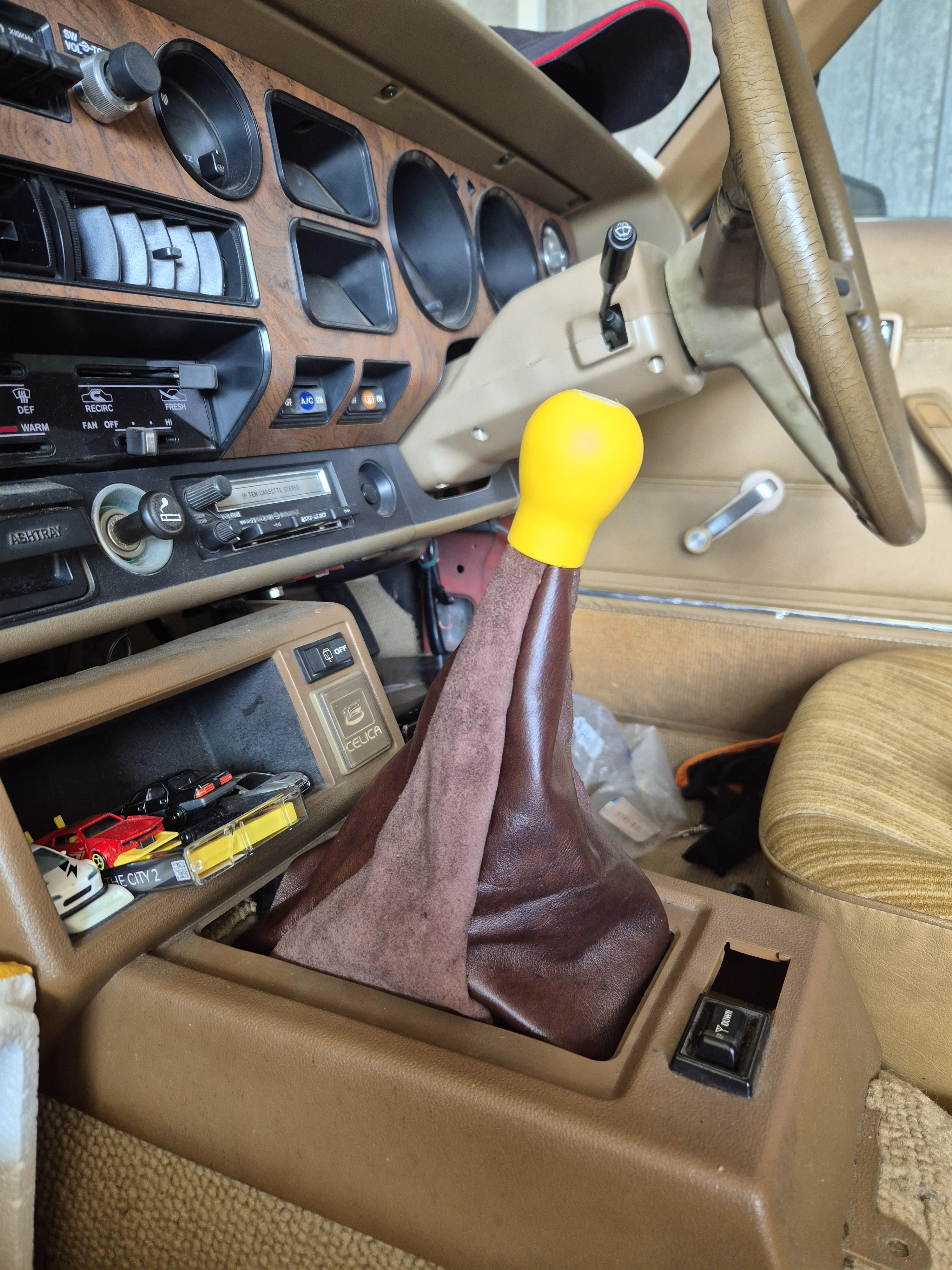

Final Product, needs to be trimmed shorter and attatched

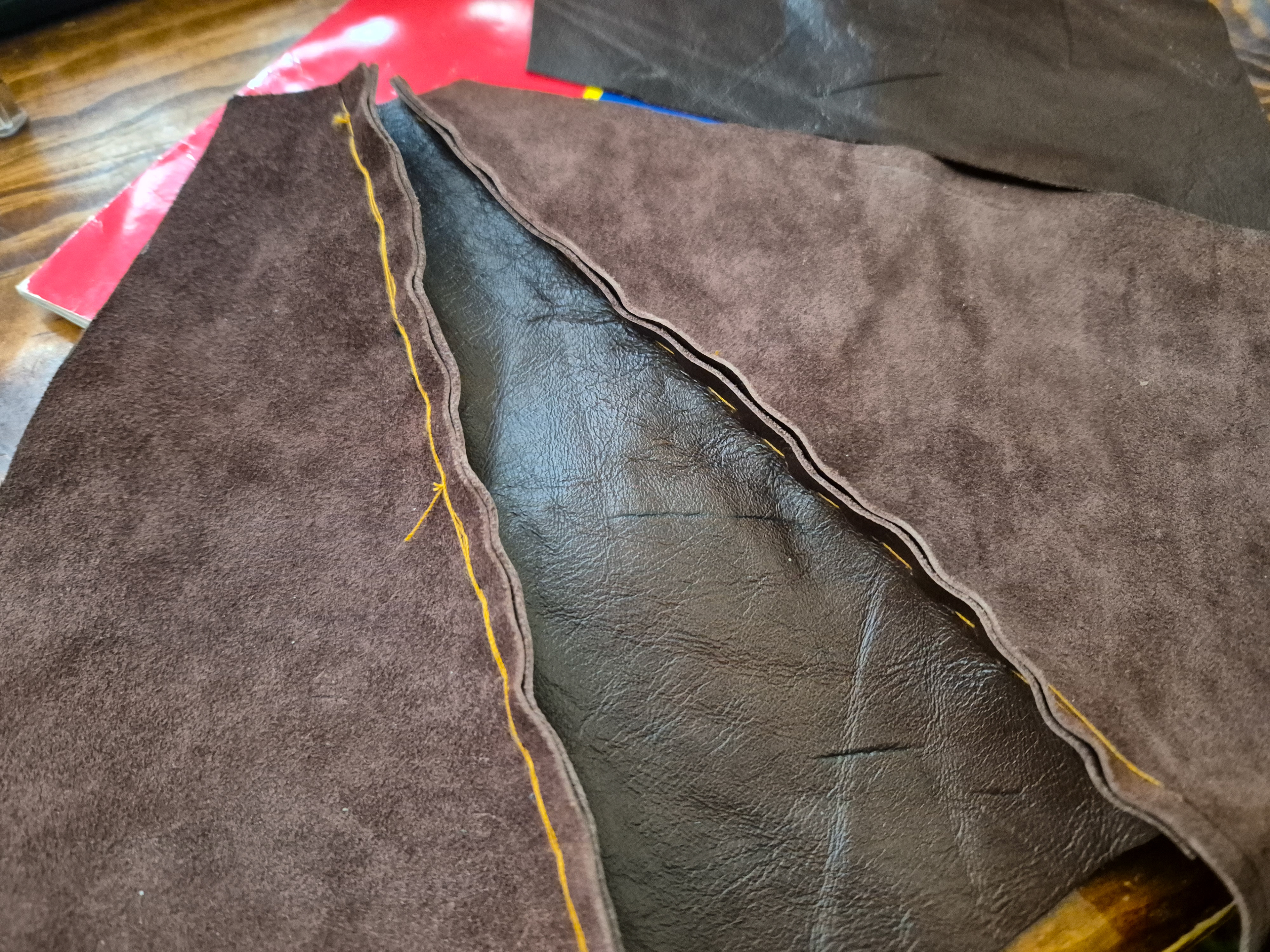

Sewn Together

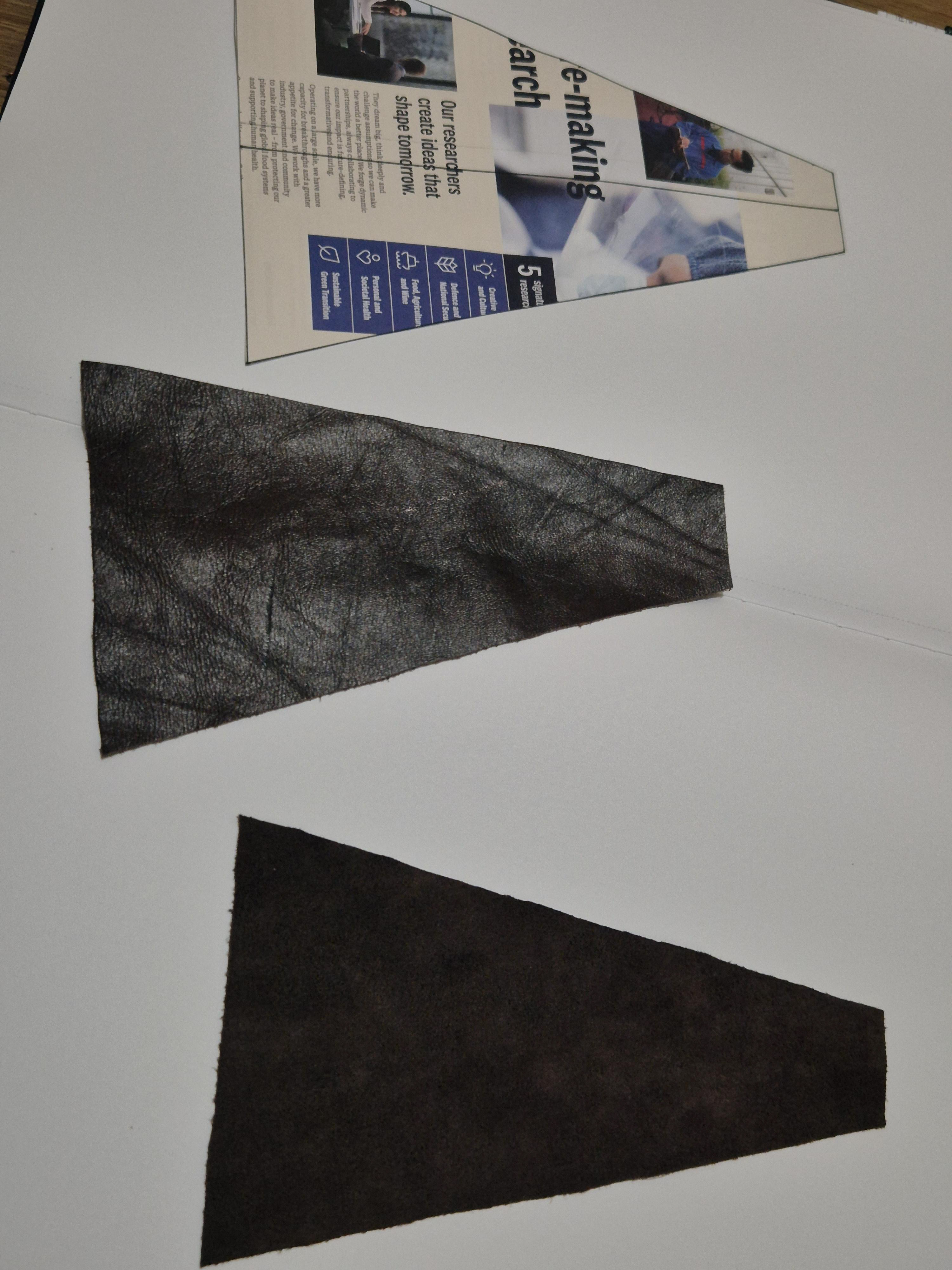

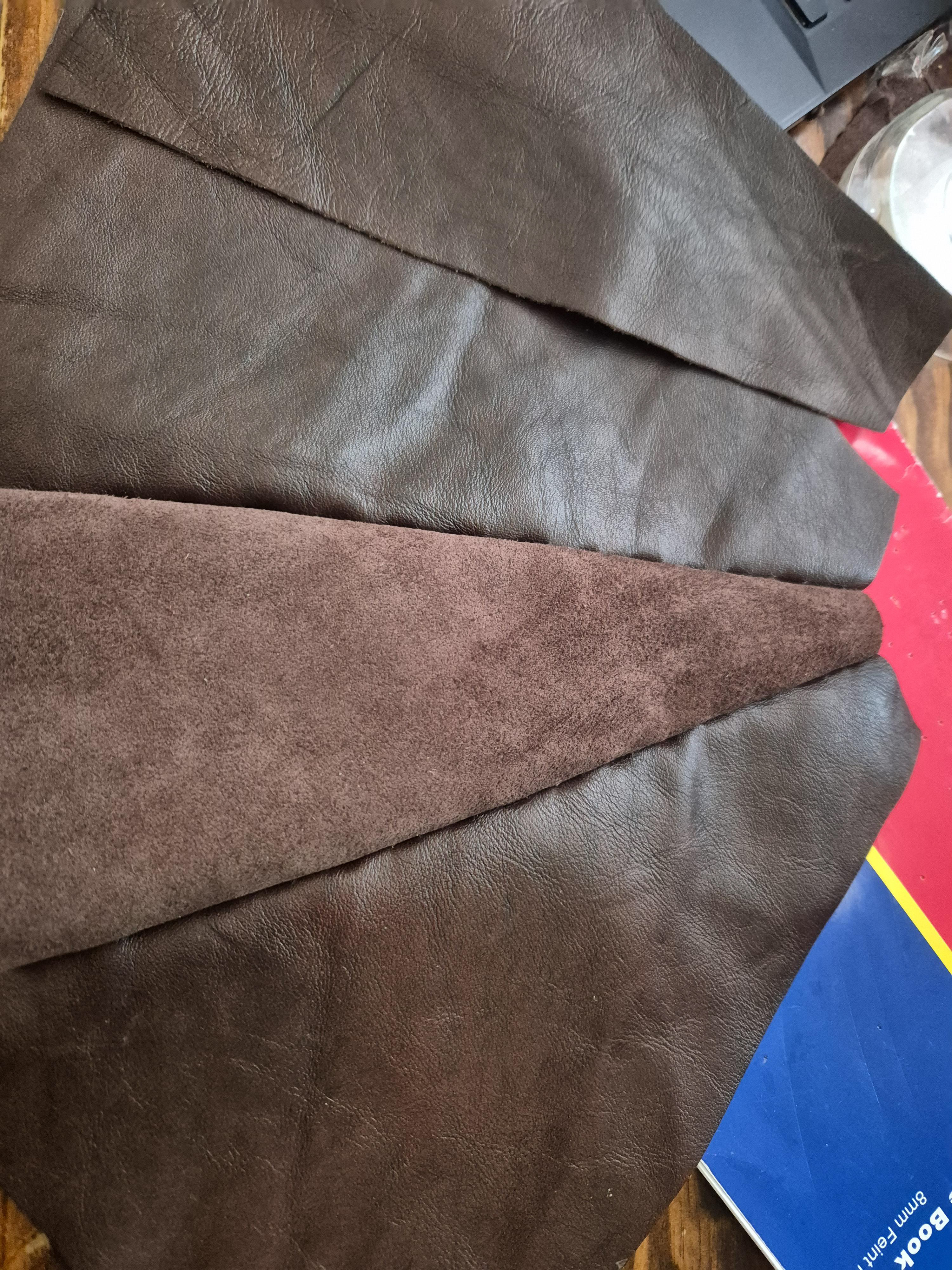

Templates

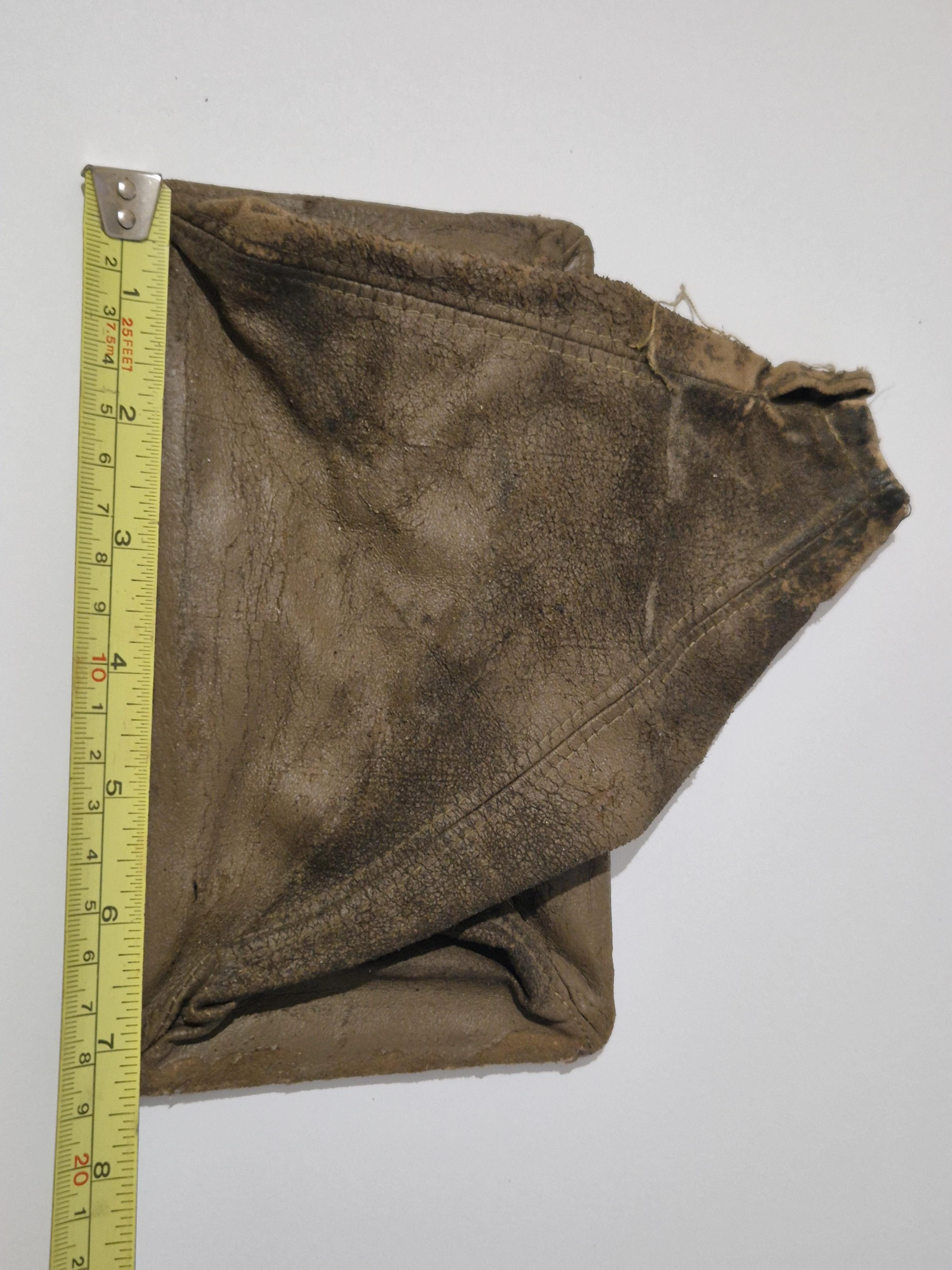

Measuring boot dimensions to re-trim from orginal style leather

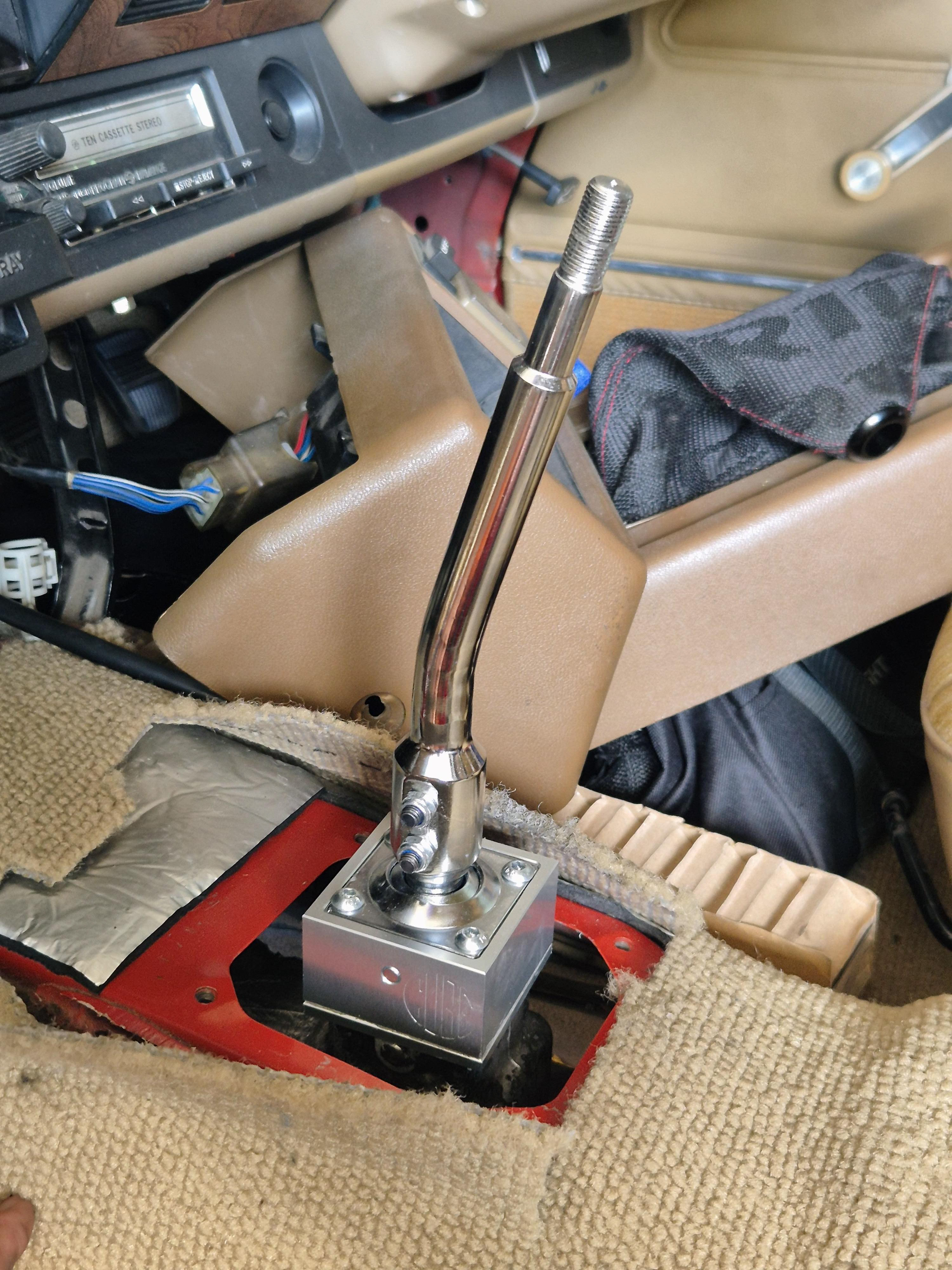

Installed to specification

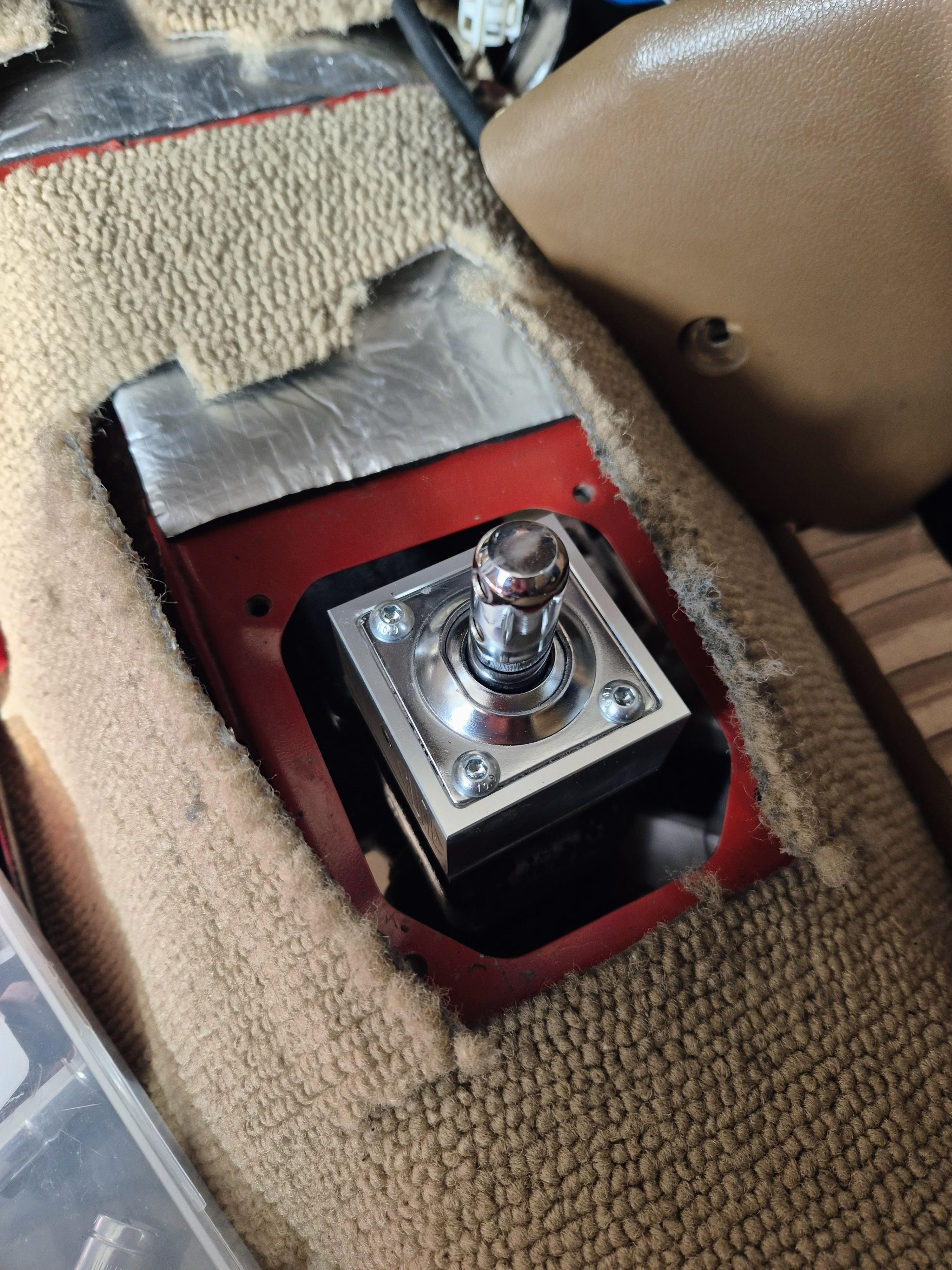

Aftermarket upgraded billet short shifter

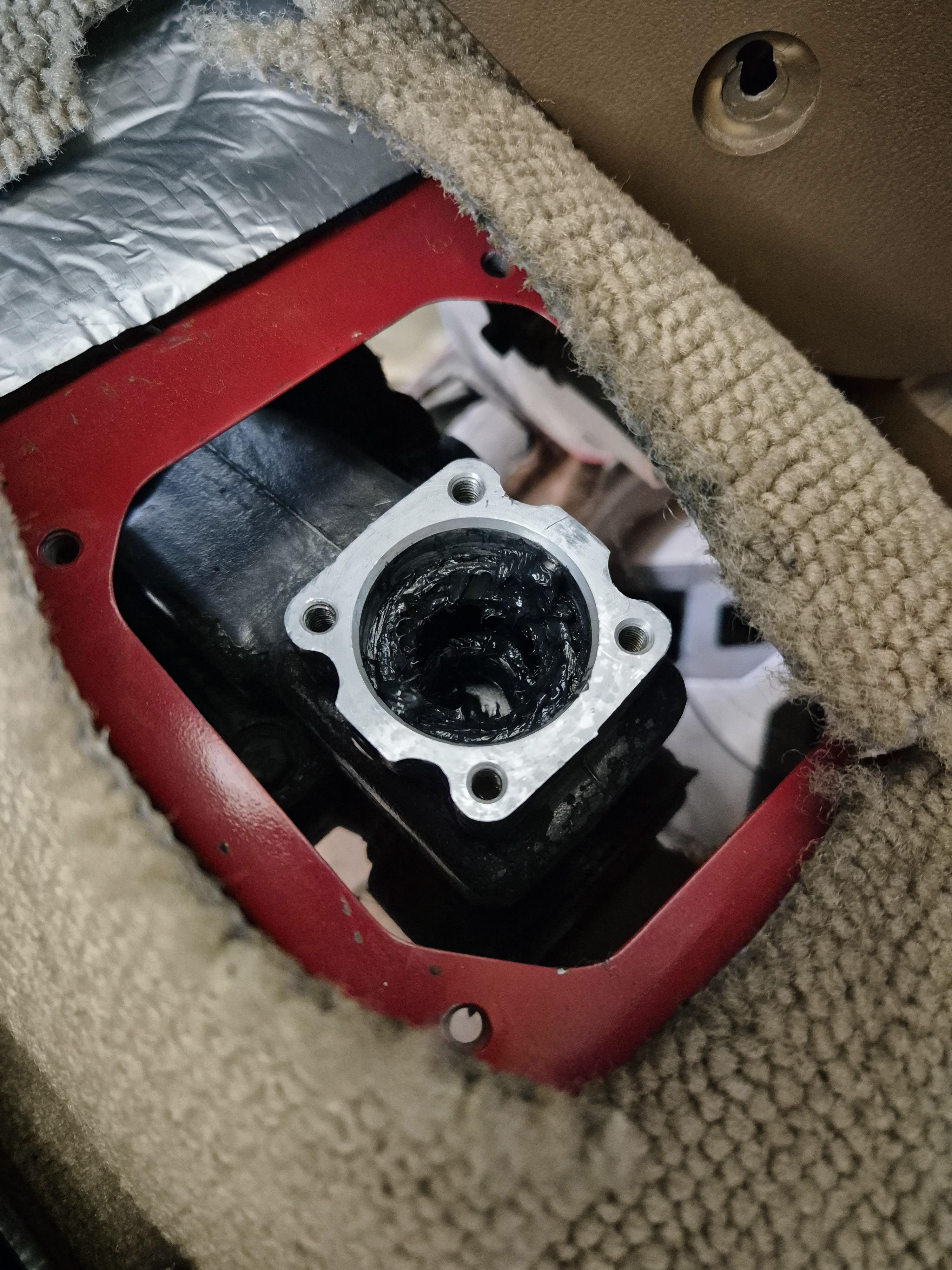

New OE Bushing, Rubber and grease

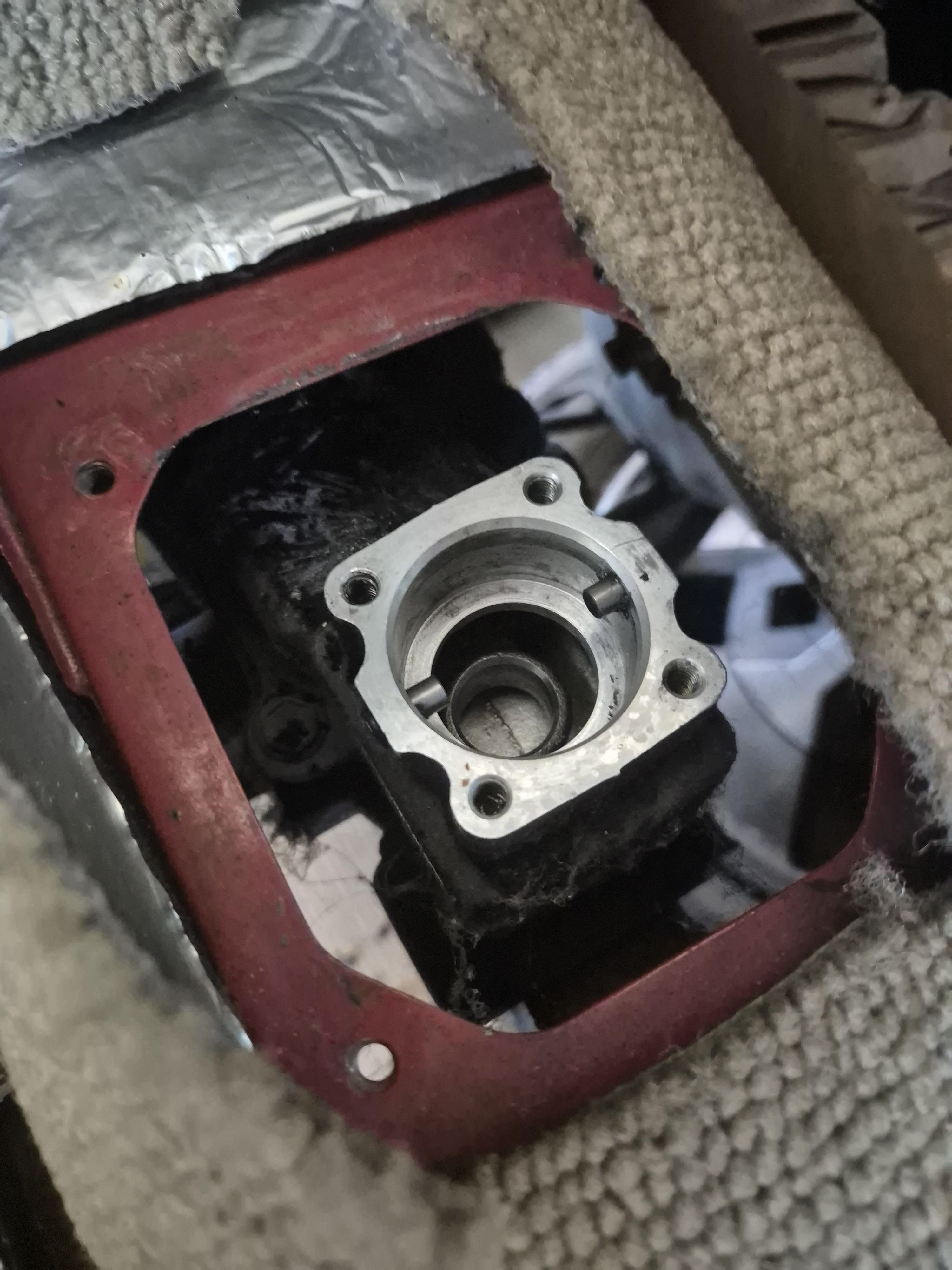

Transmission shifter service

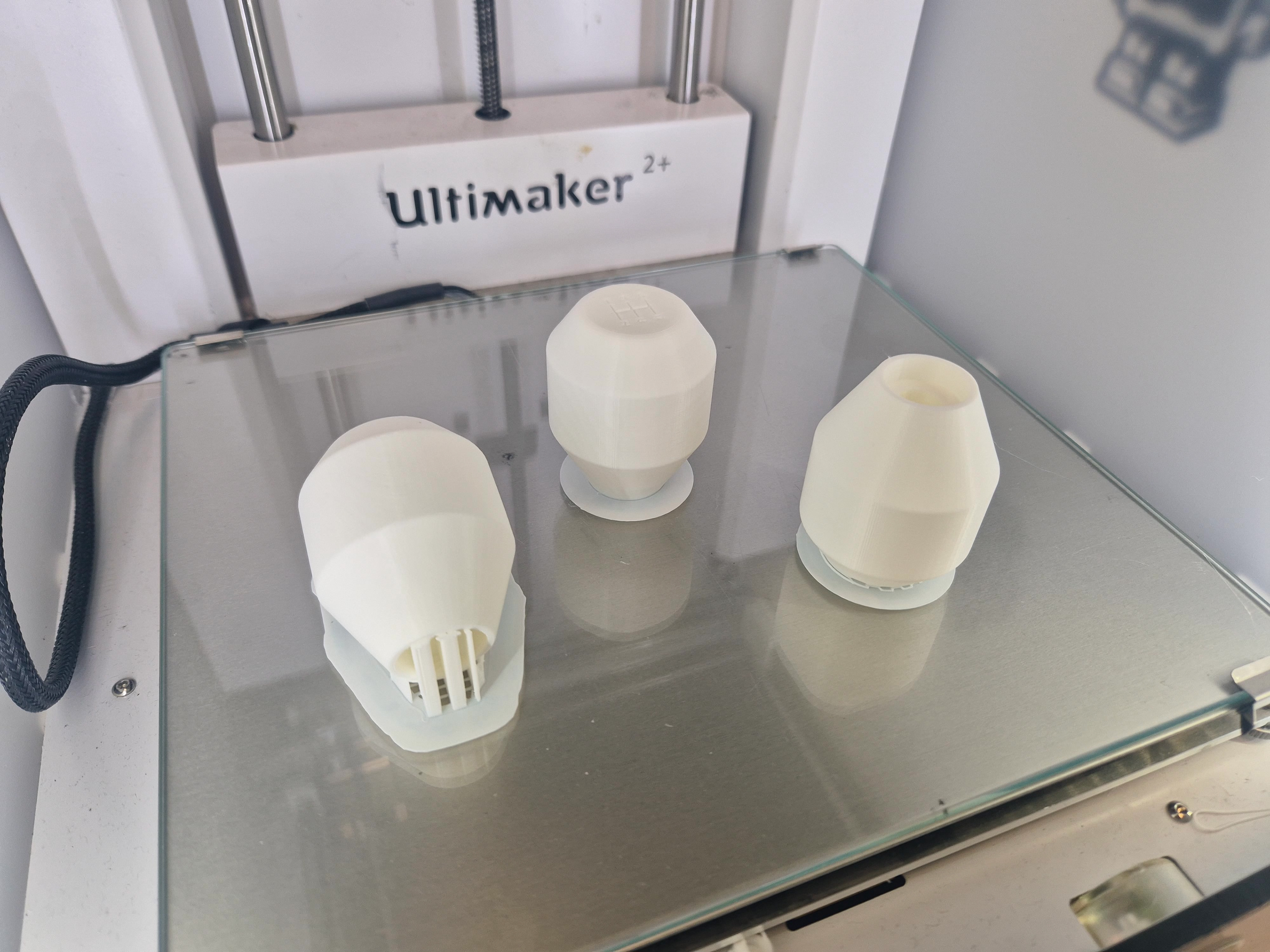

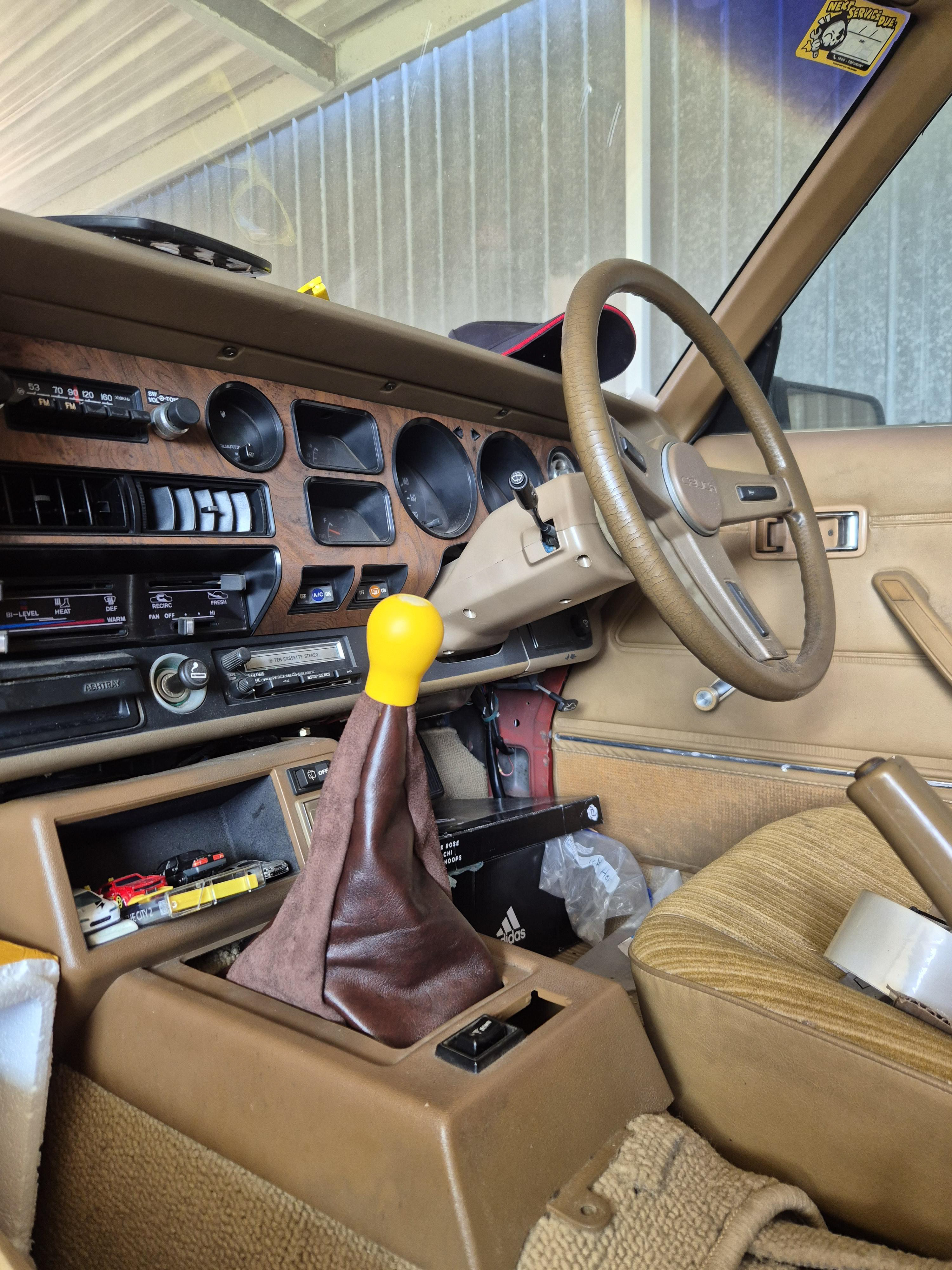

Custom Shift Knob, Size and Ergonimcs testing before getting Machined

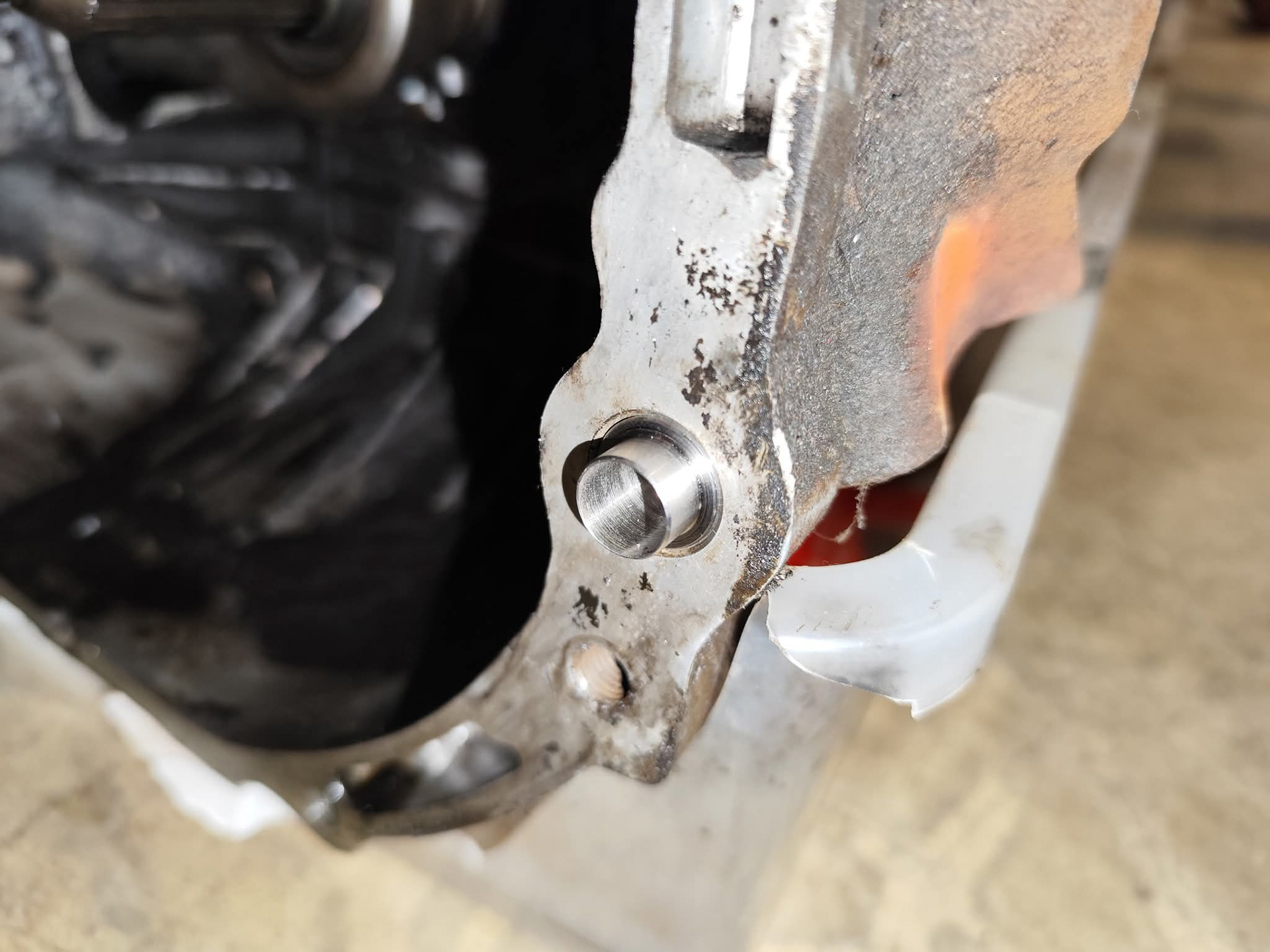

Installed Dowells

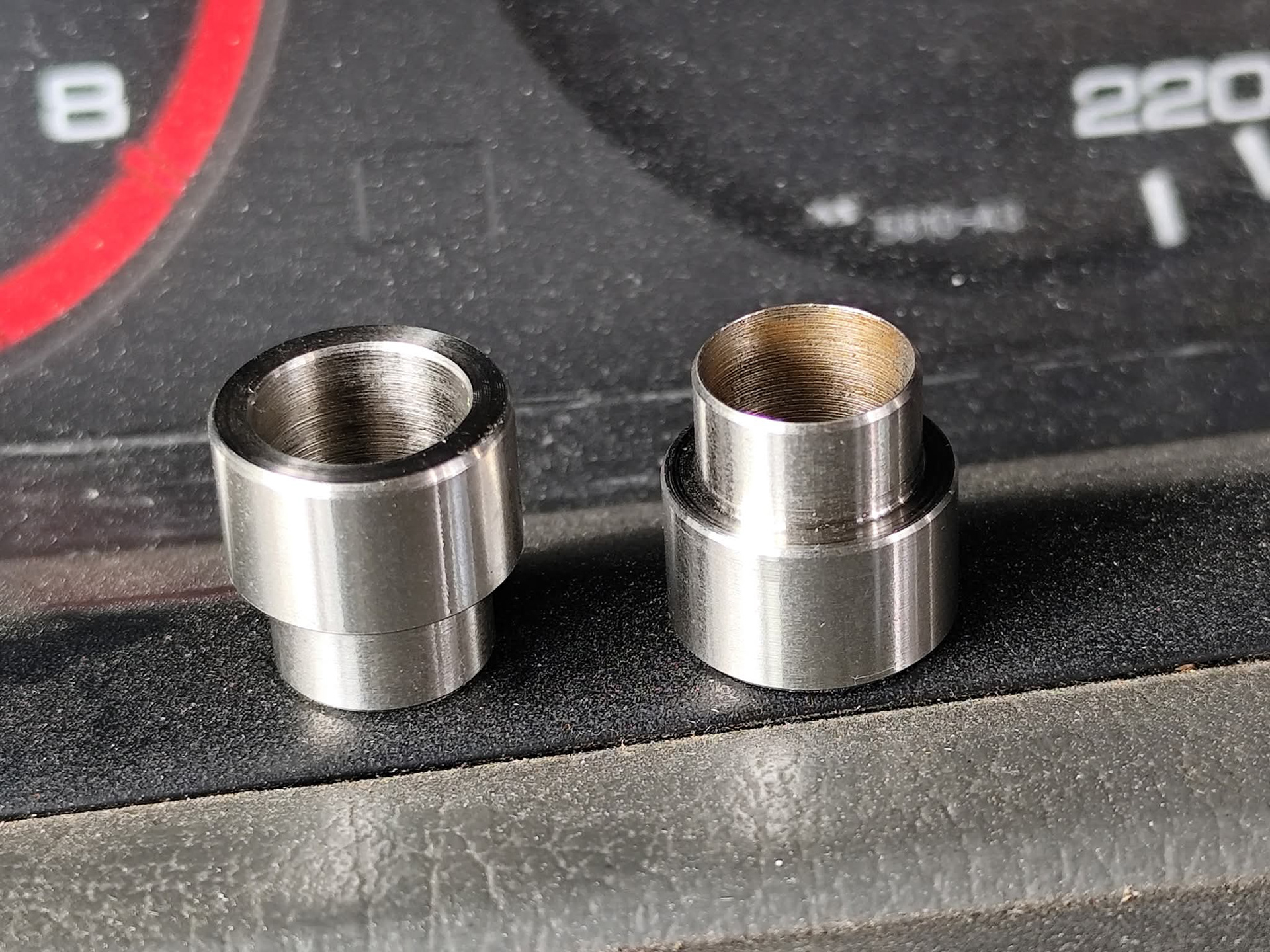

Machined Steel Step Down Dowells

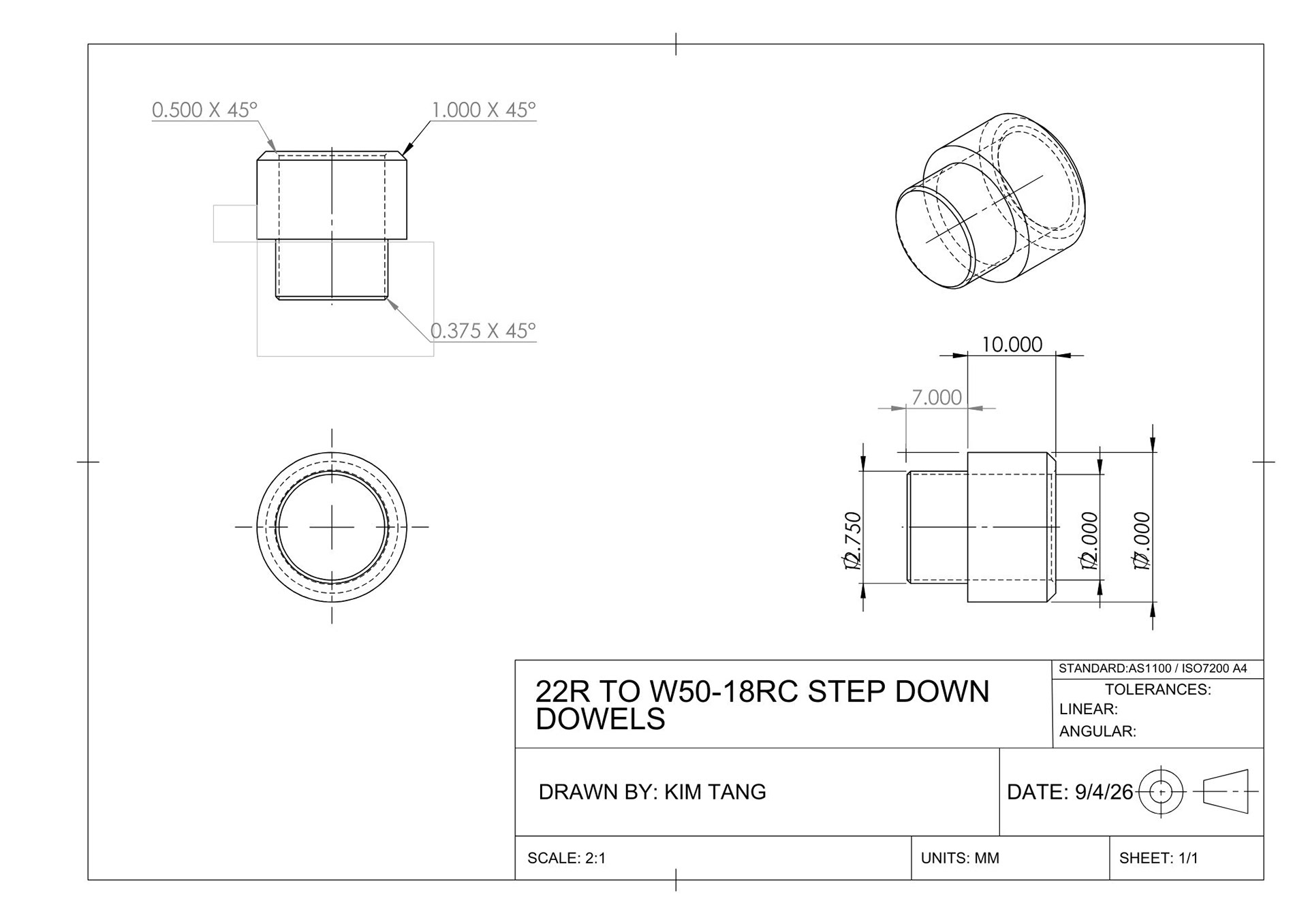

Engineering Drawing for Machine Shop

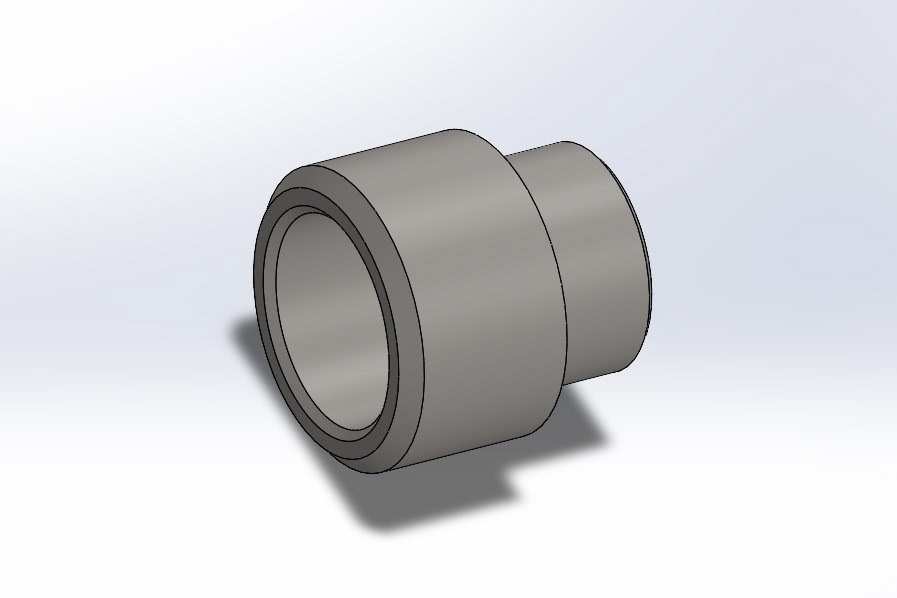

Step Down Dowells to mate transmission to engine for engine swap

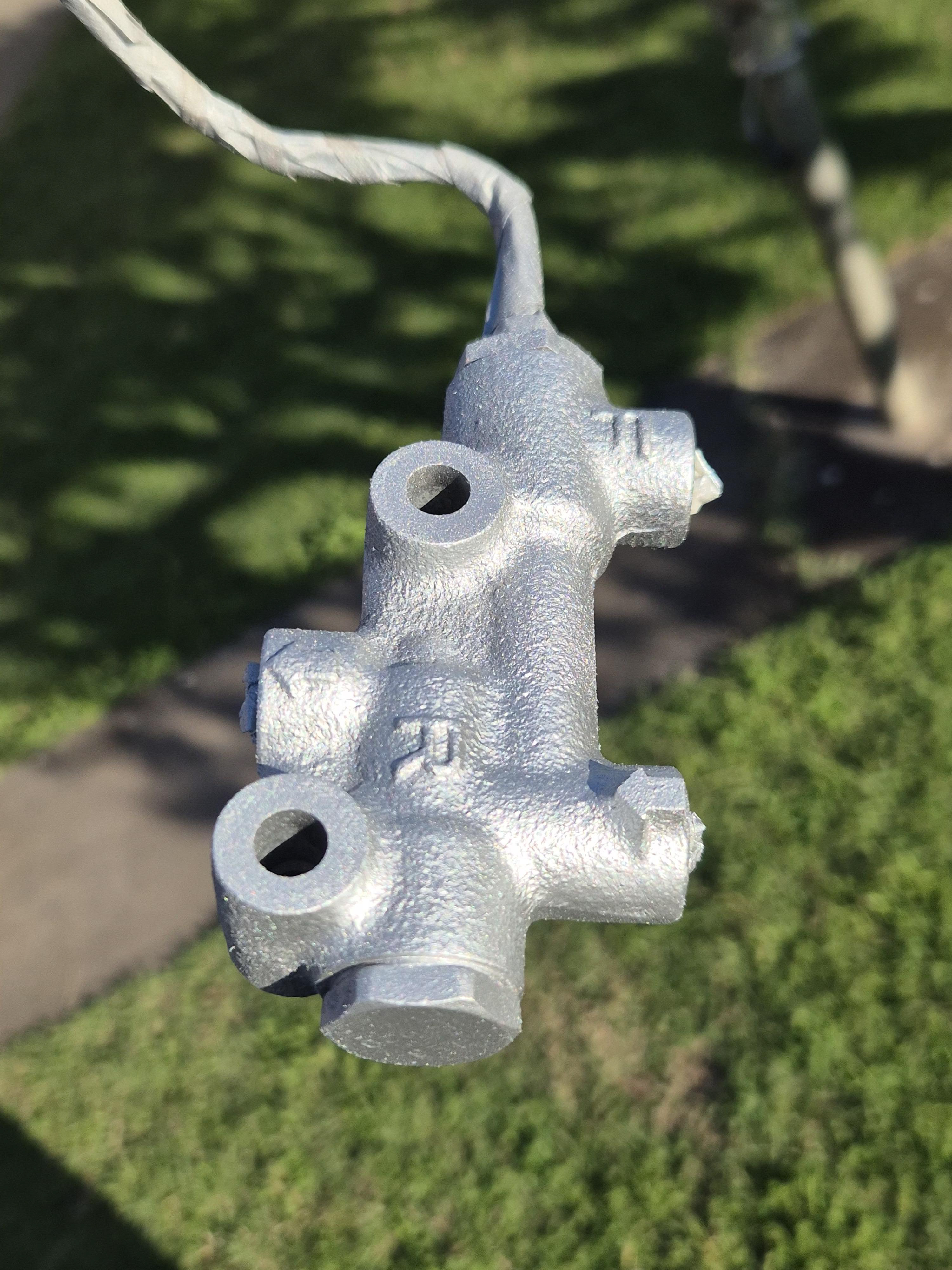

Zinc Coated

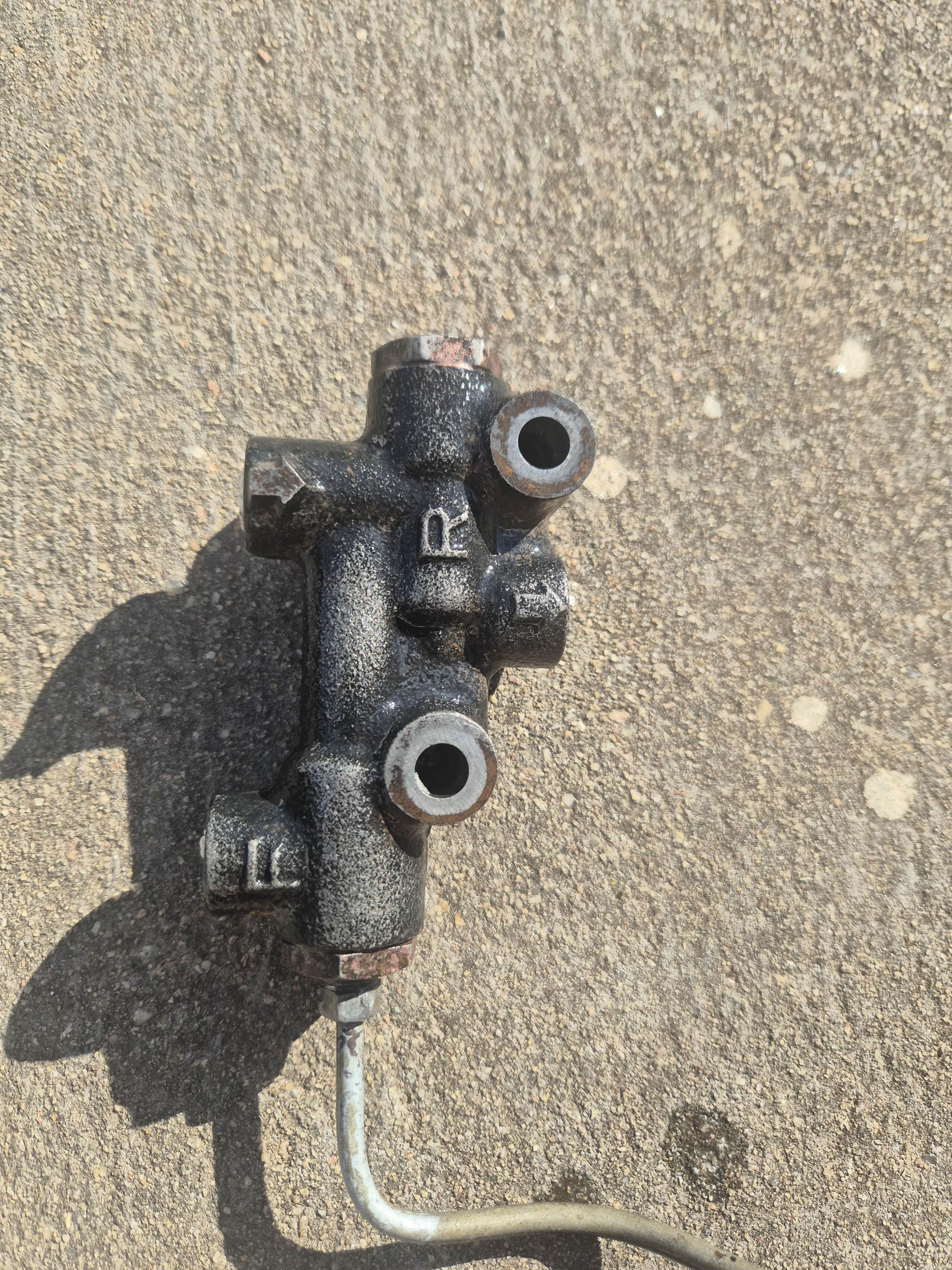

Cleaned and Prepped

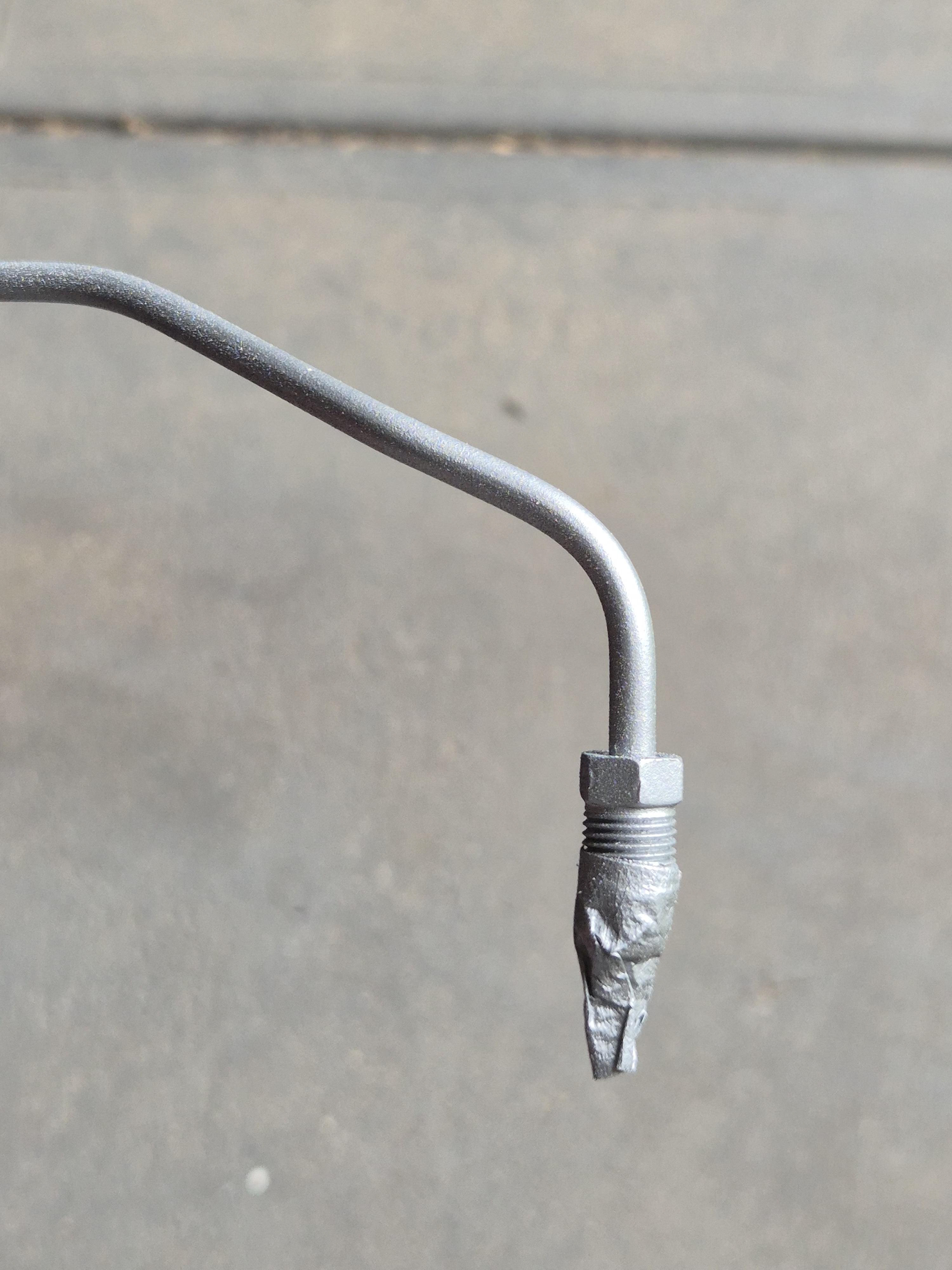

Zinc Coated

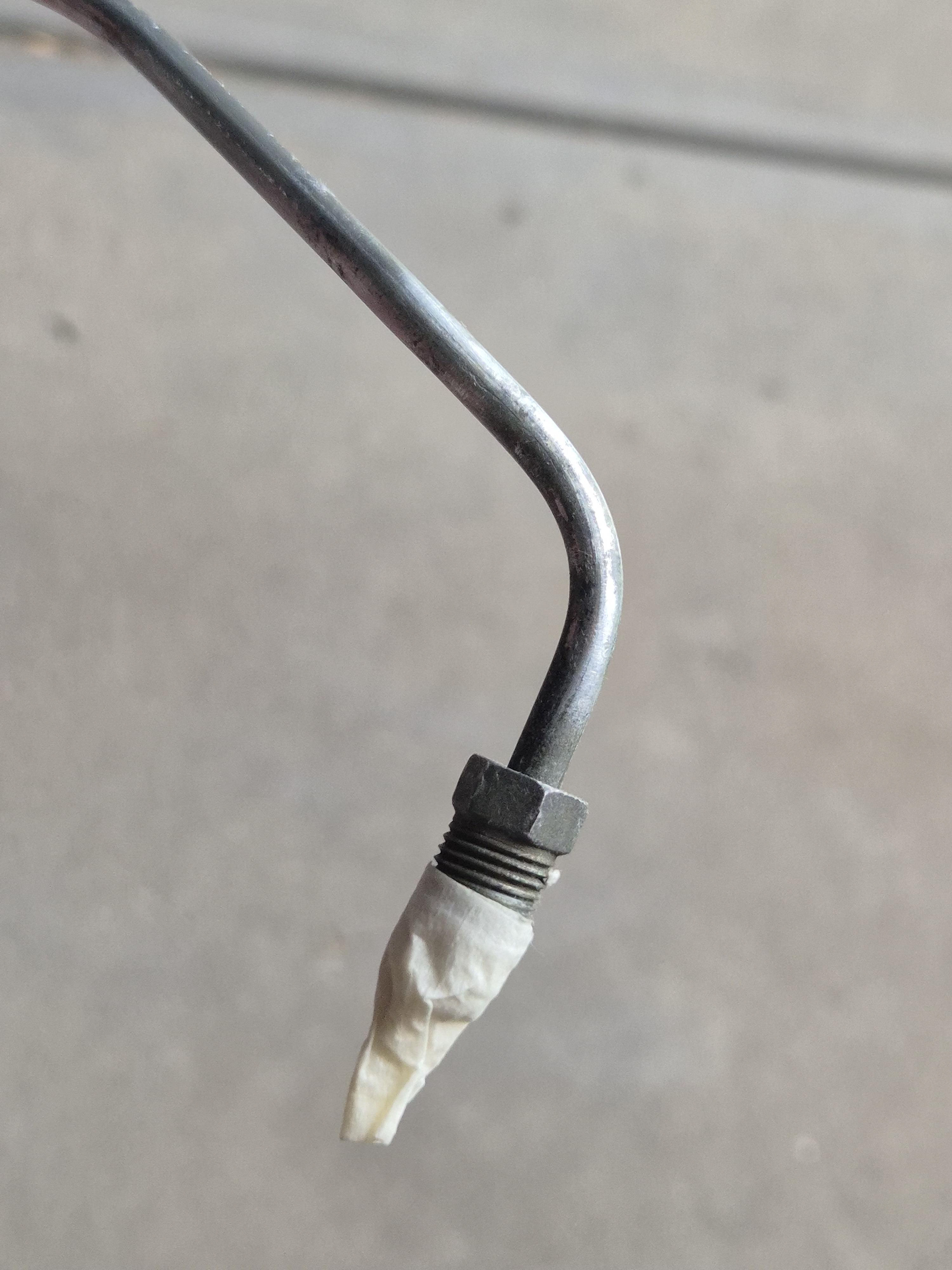

Prepped

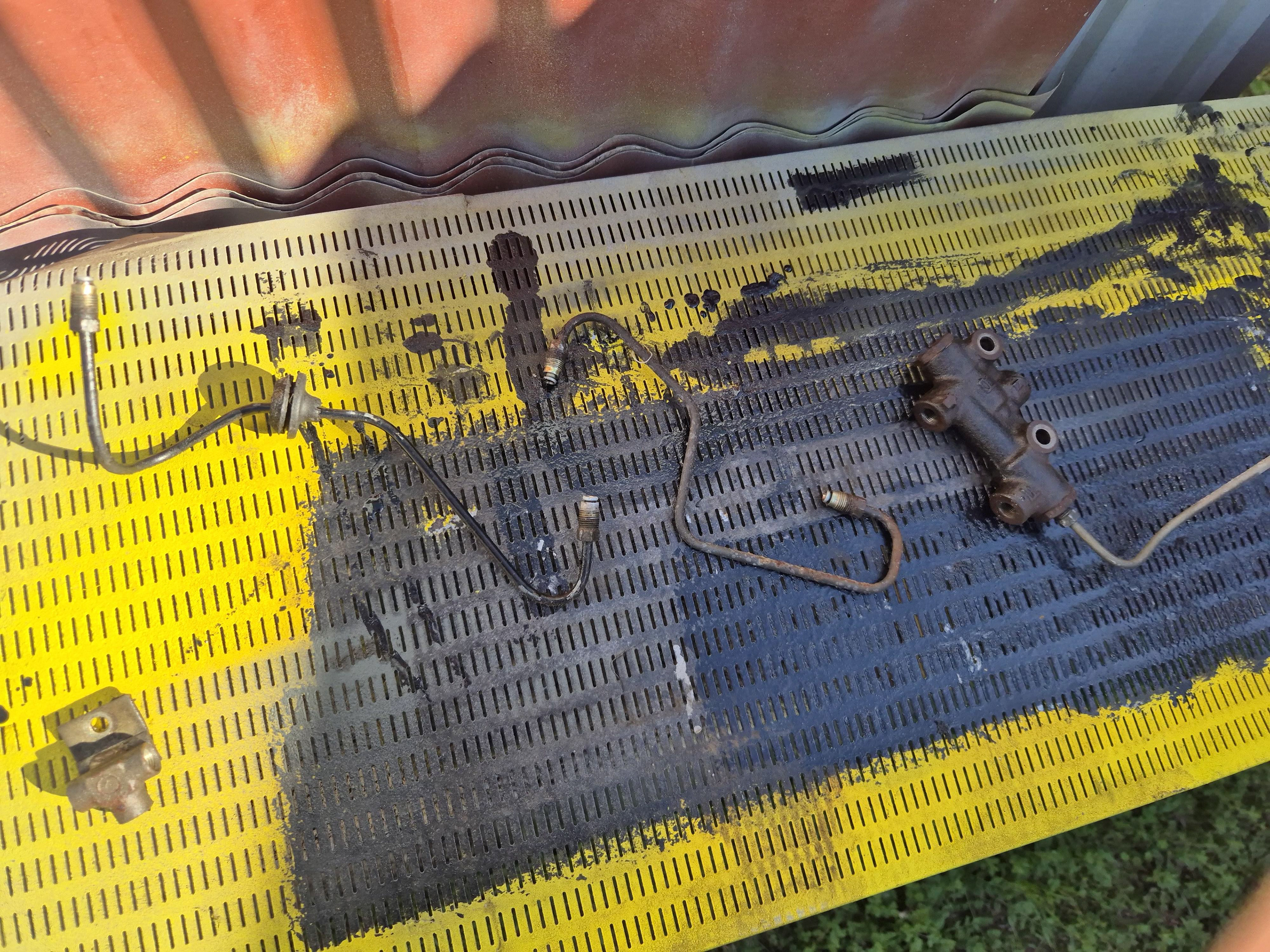

Stripping engine bay hardlines for restoration

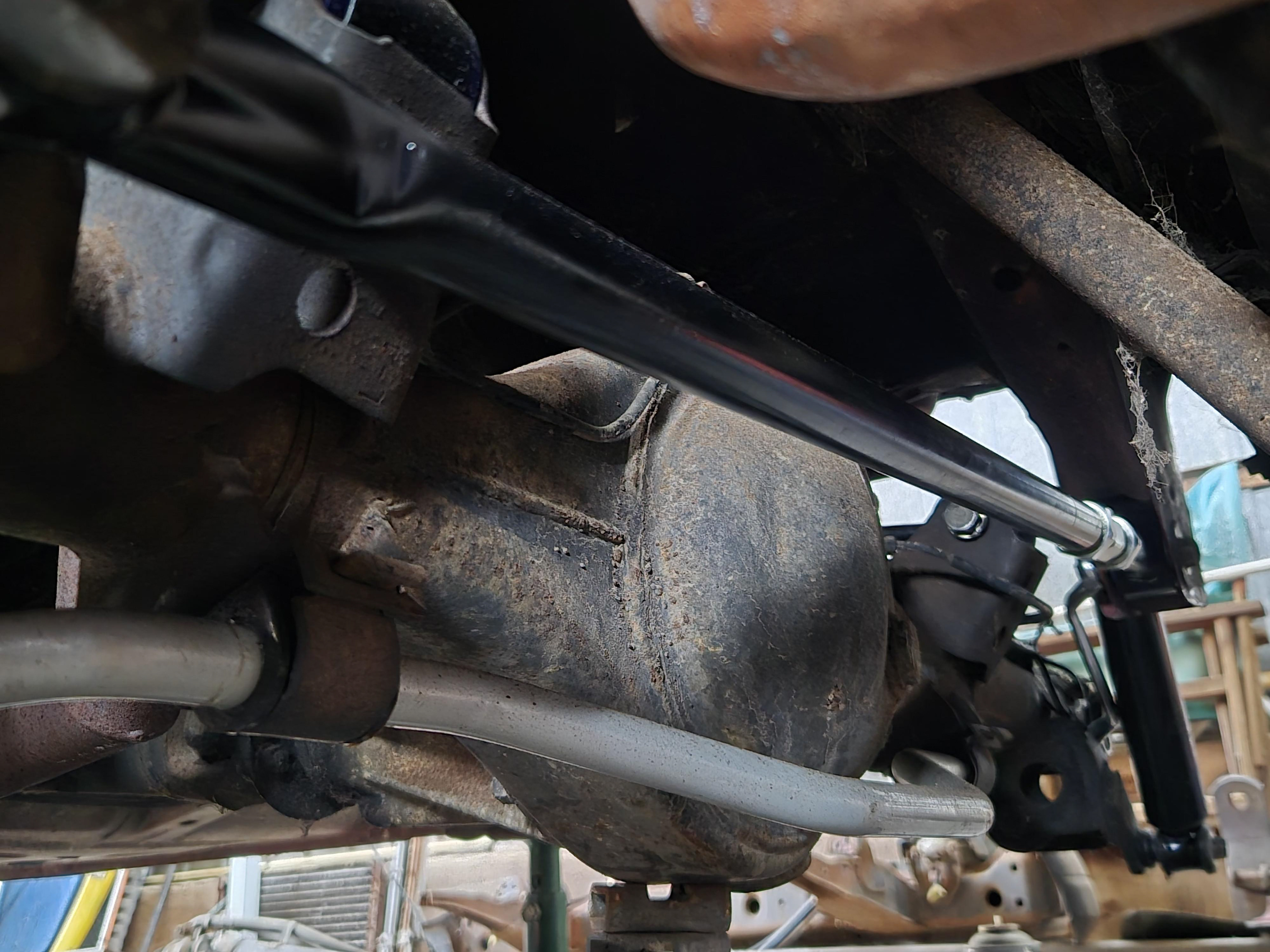

Upgraded Rear Swaybar, Adjustable Panhard Rod and Poly Bushings
Installed new suspension

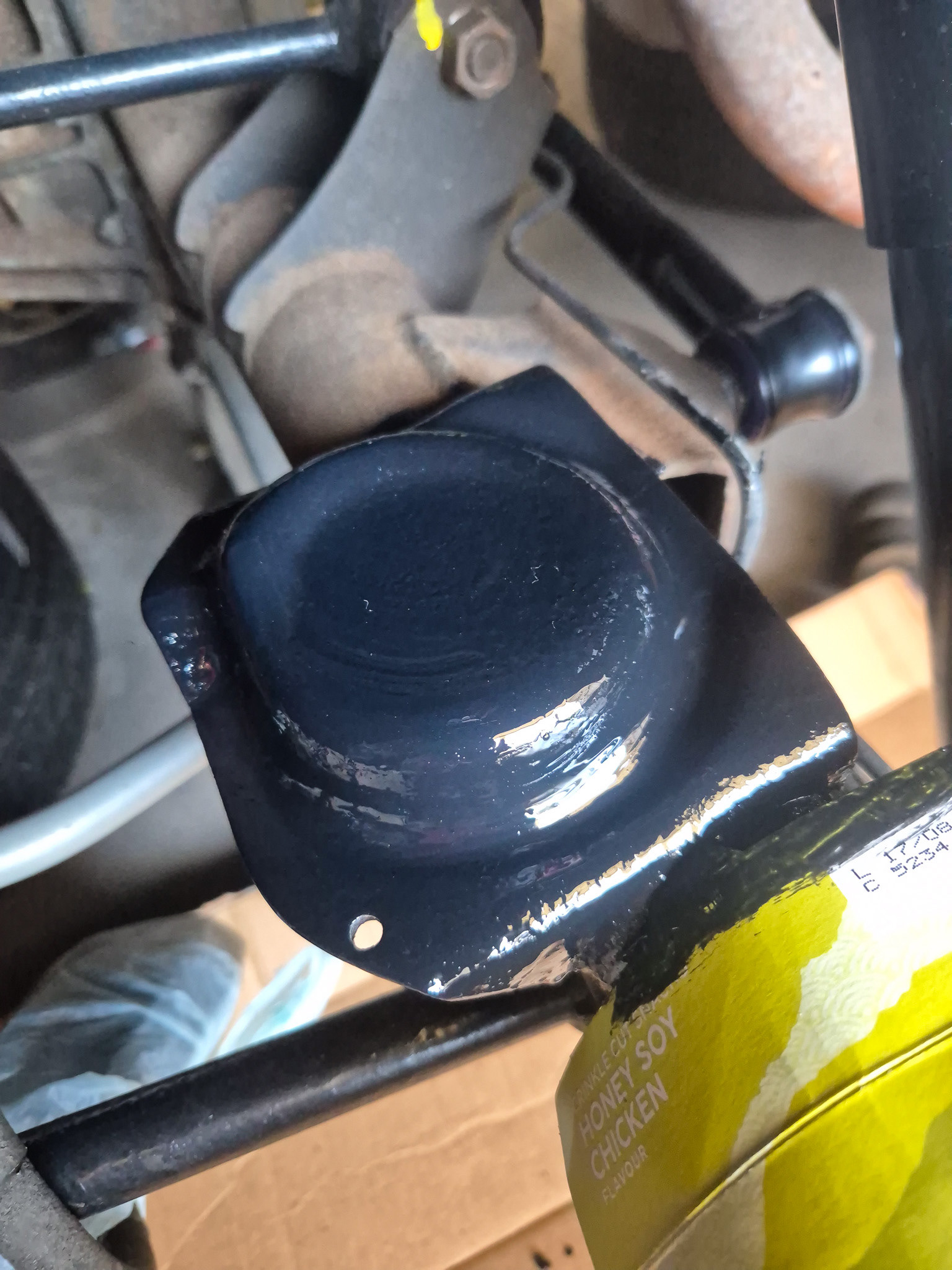

Painted the spring seats in Chasis Paint

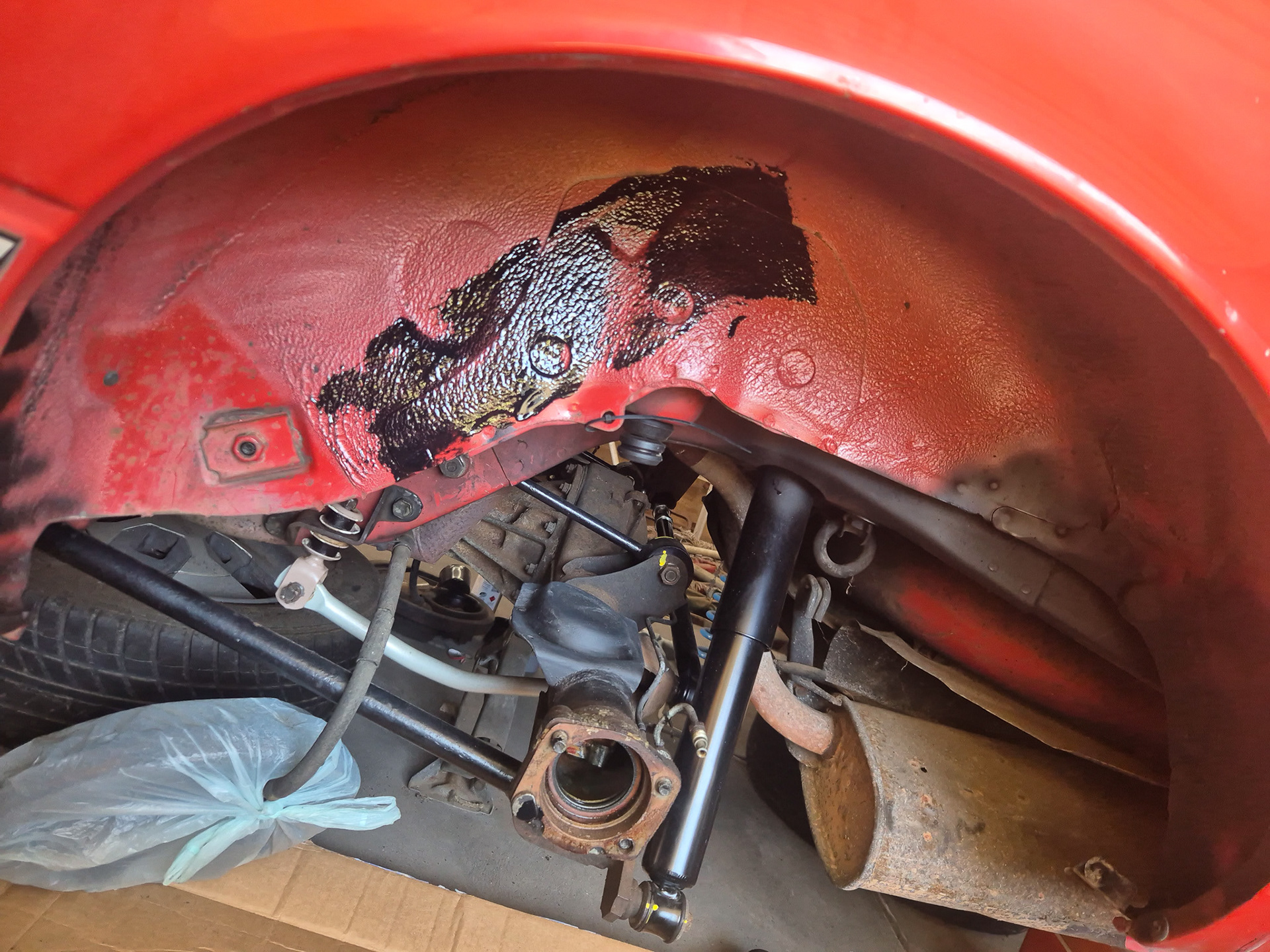

Cleaned and prepped ready for paint

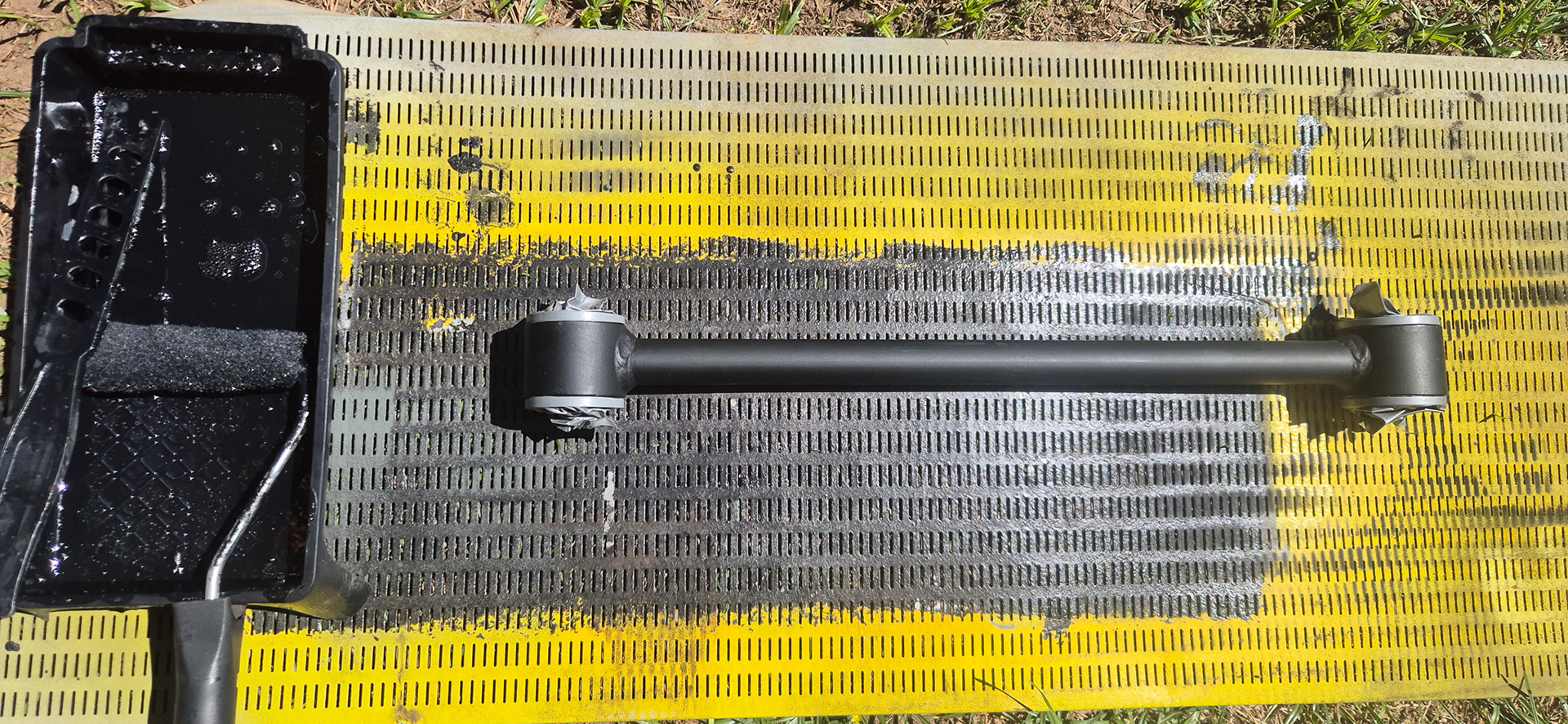

Prep for parinting trailing arms for the 4 Link Rear Suspension

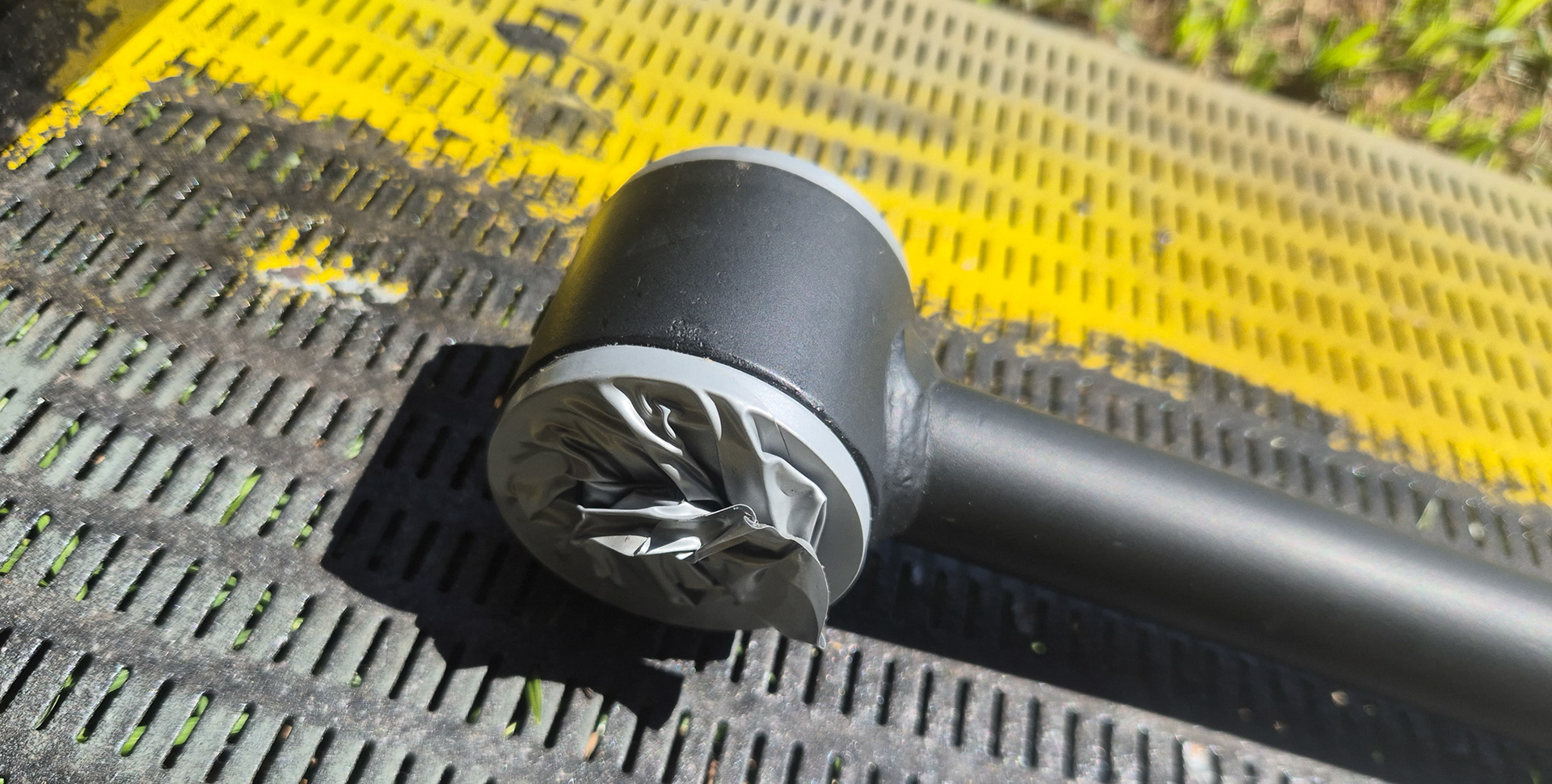

Masking and prep for chasis paint

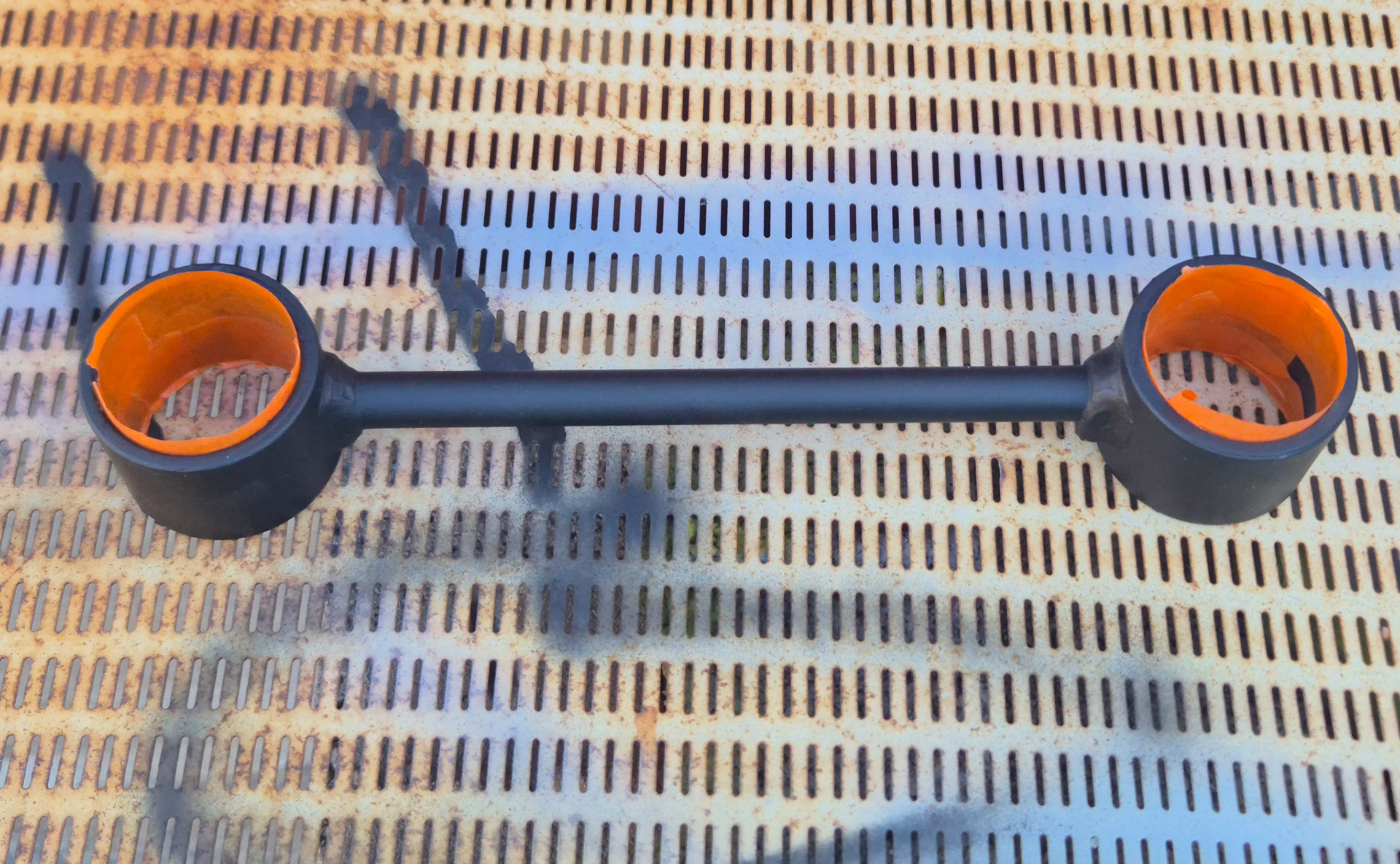

Rust Conversion Primer

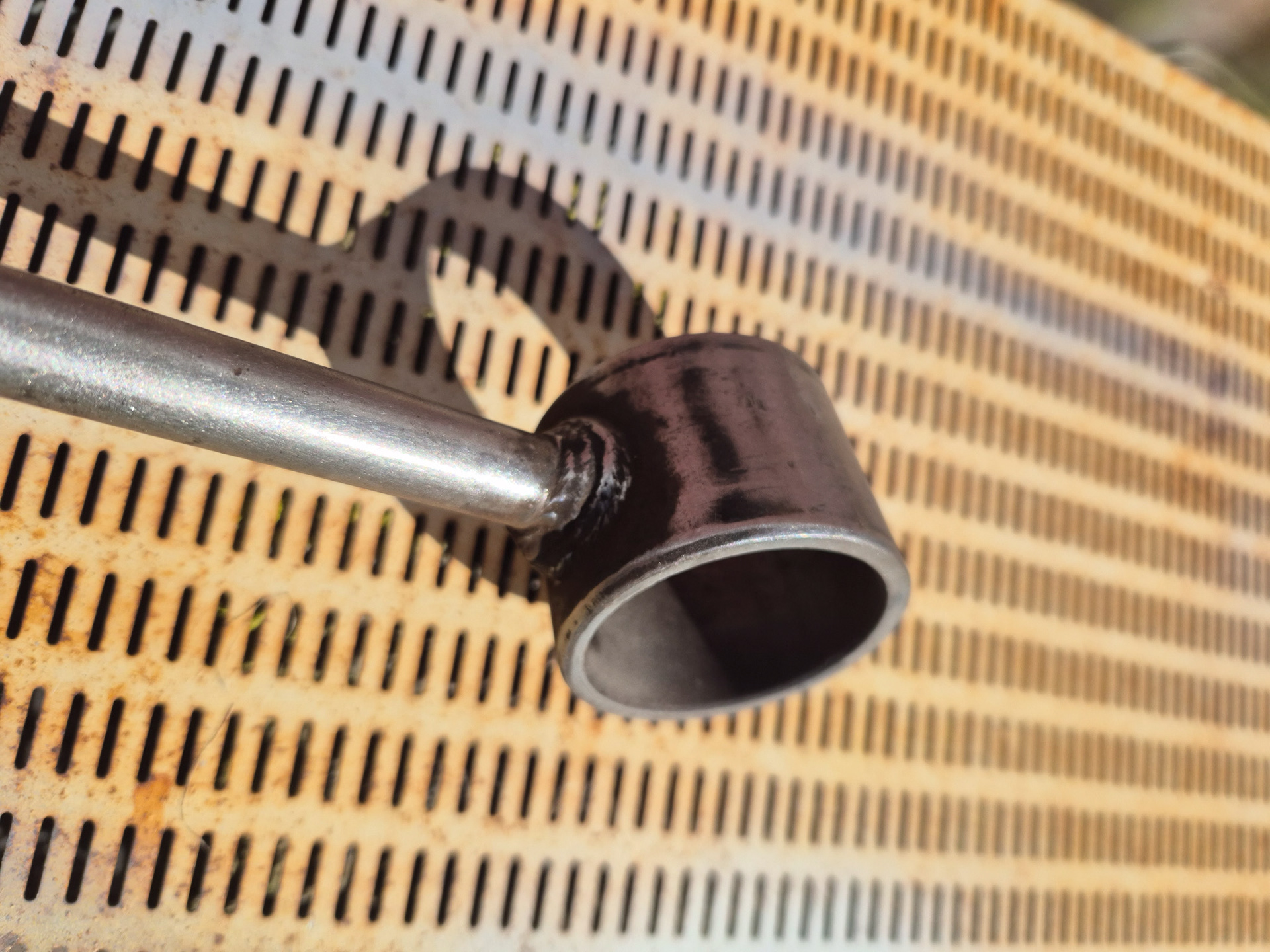

Sanded old paint and rust off

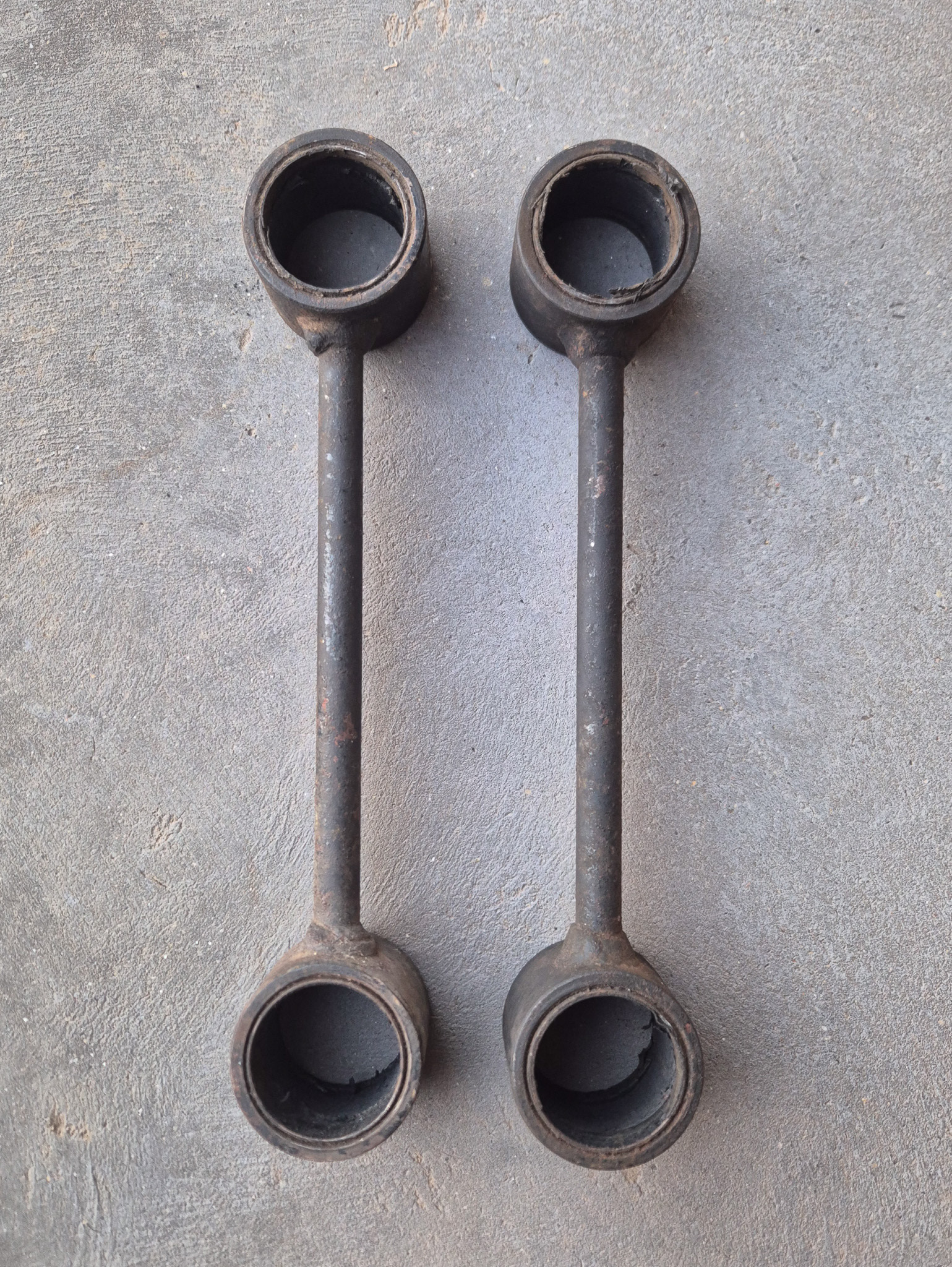

Original Condition

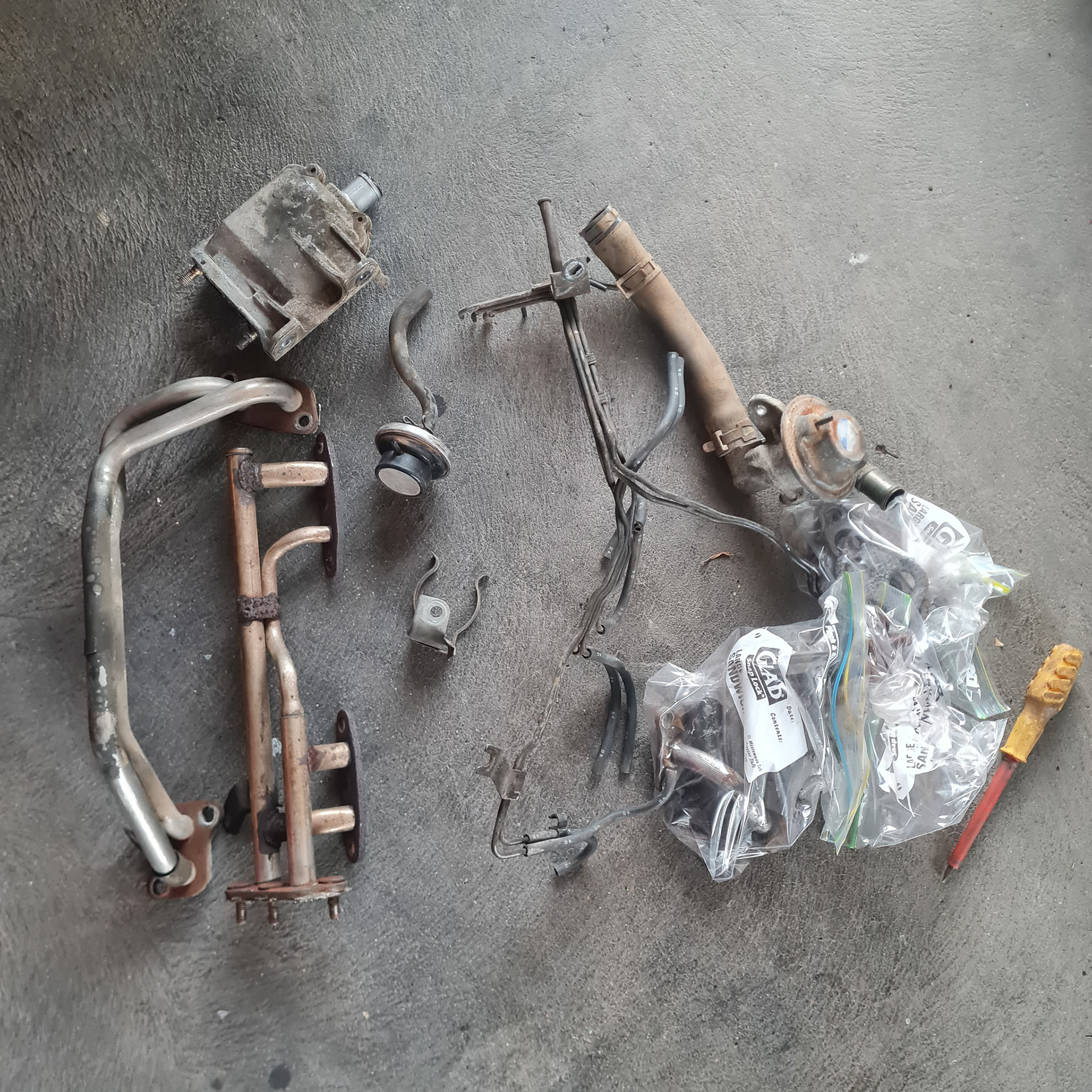

EGR & Emmisions Delete

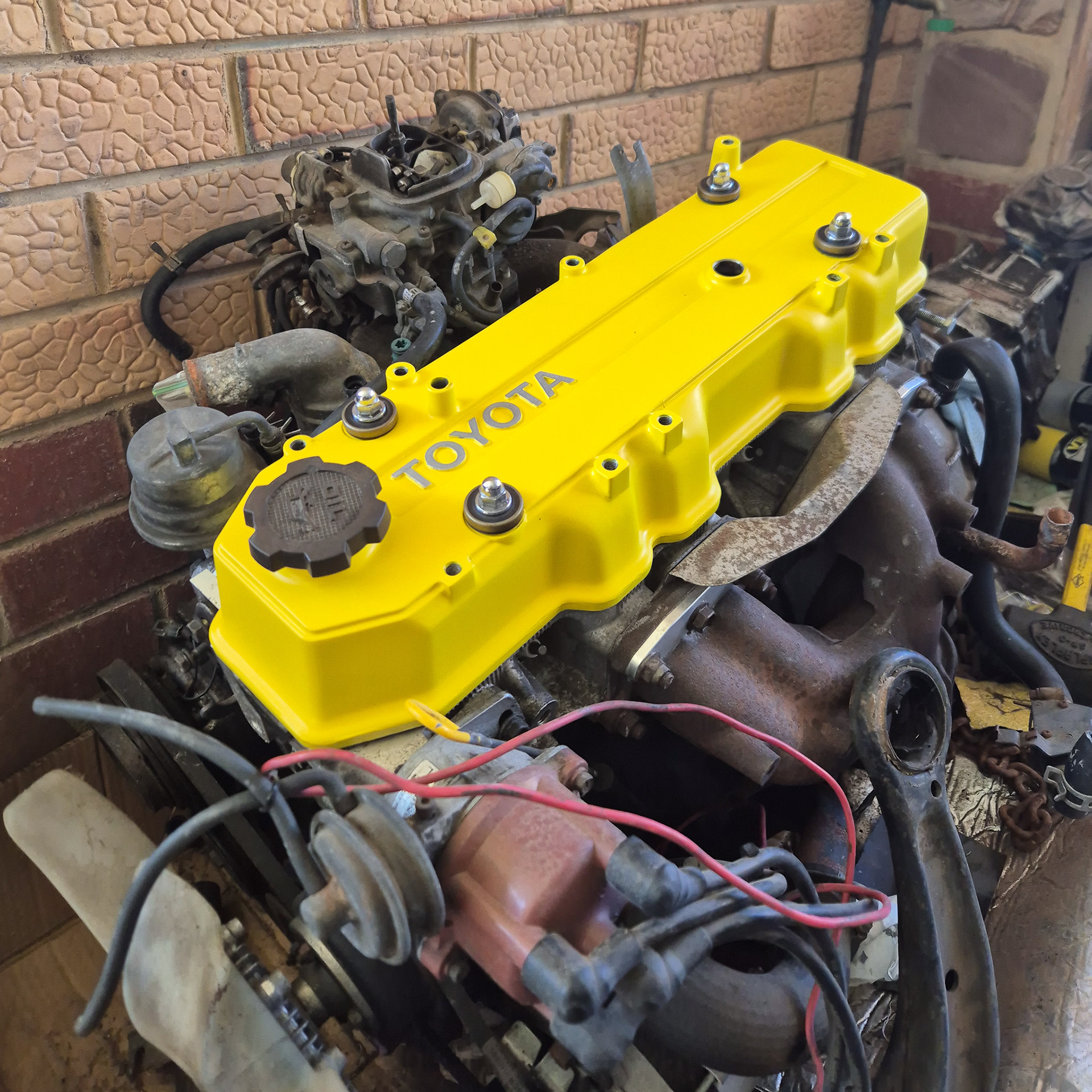

Final Results
Sanded Lettering and Clearcoated
Primed and Painted

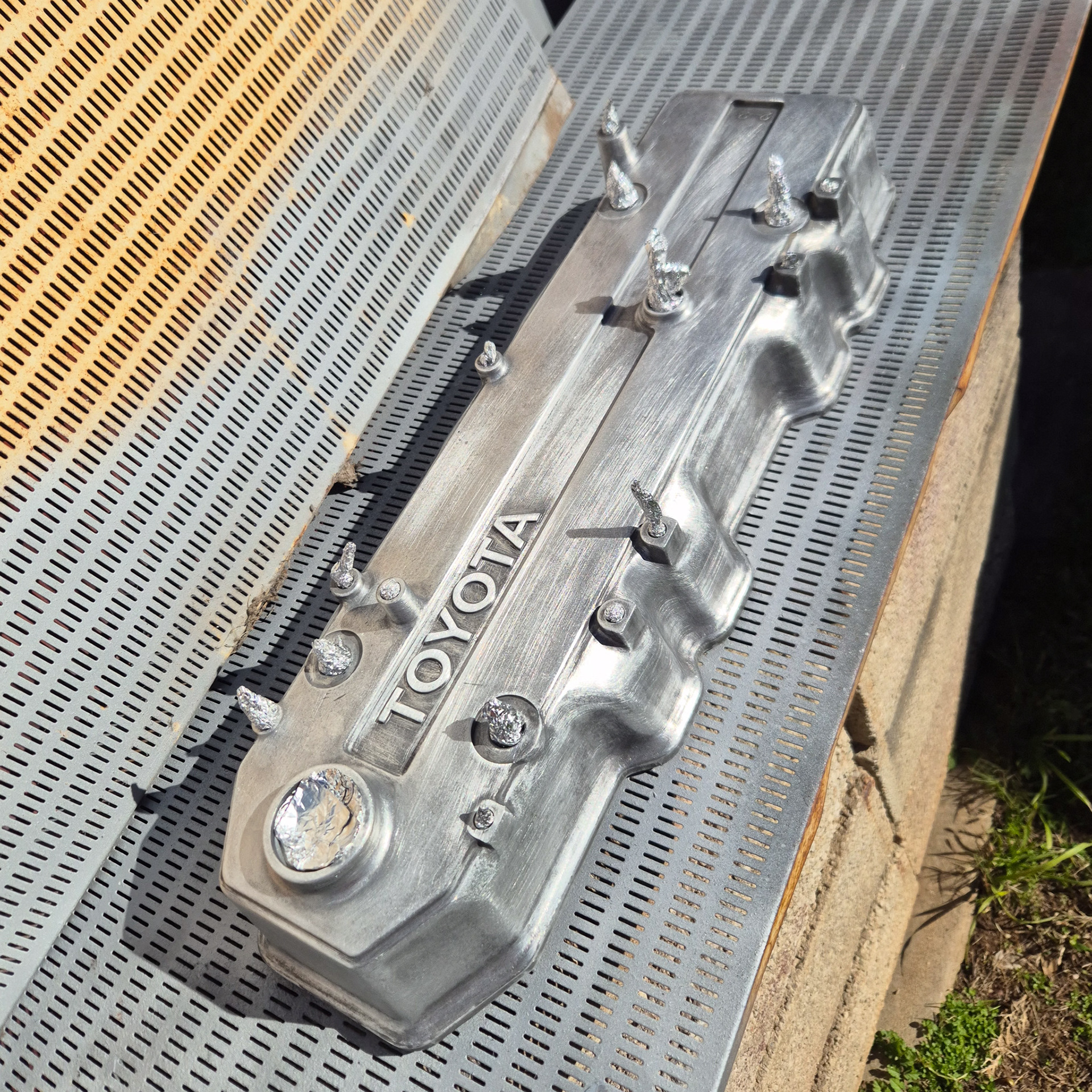

Sanded and Prepped Surface

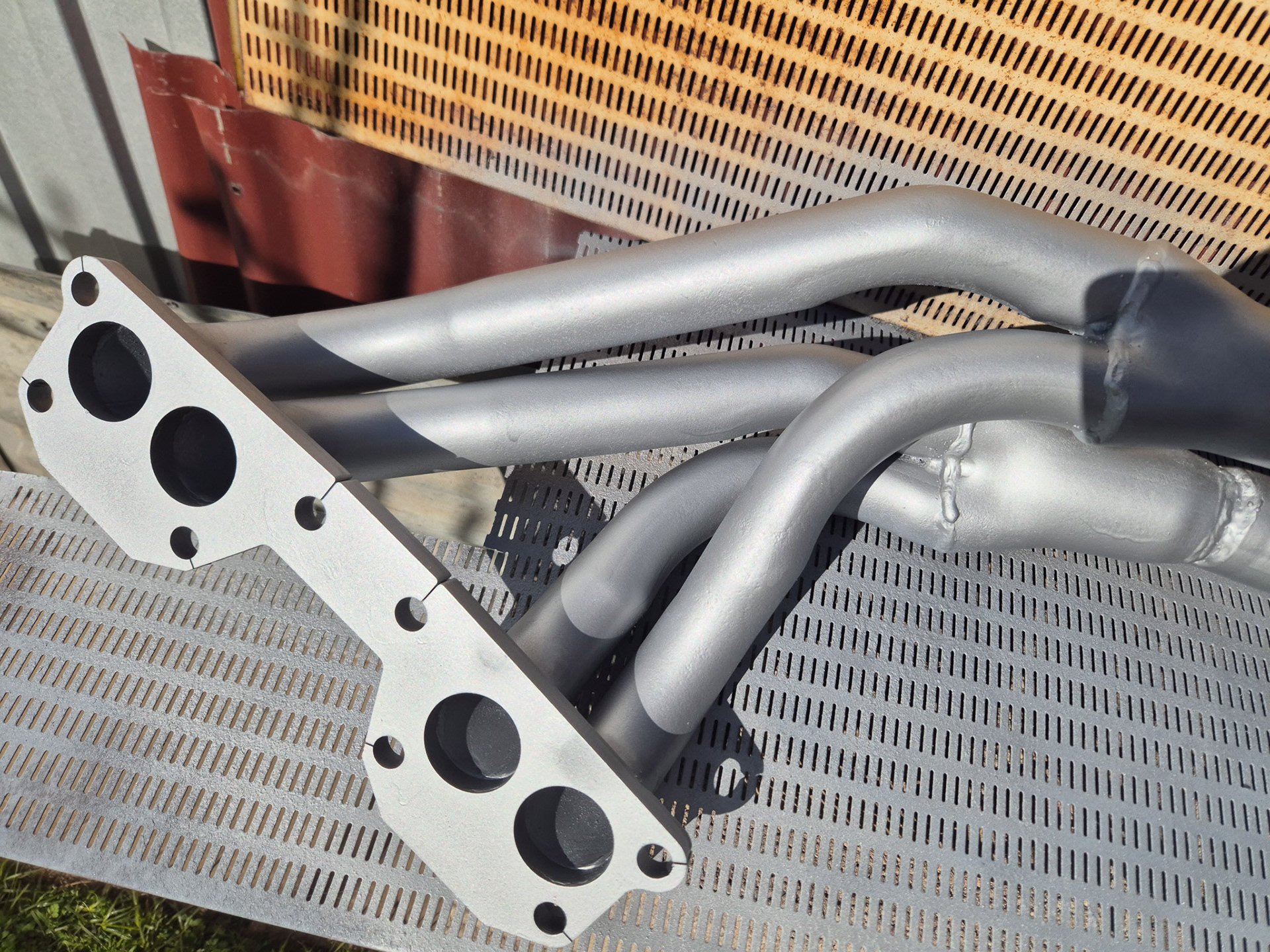

Final Results

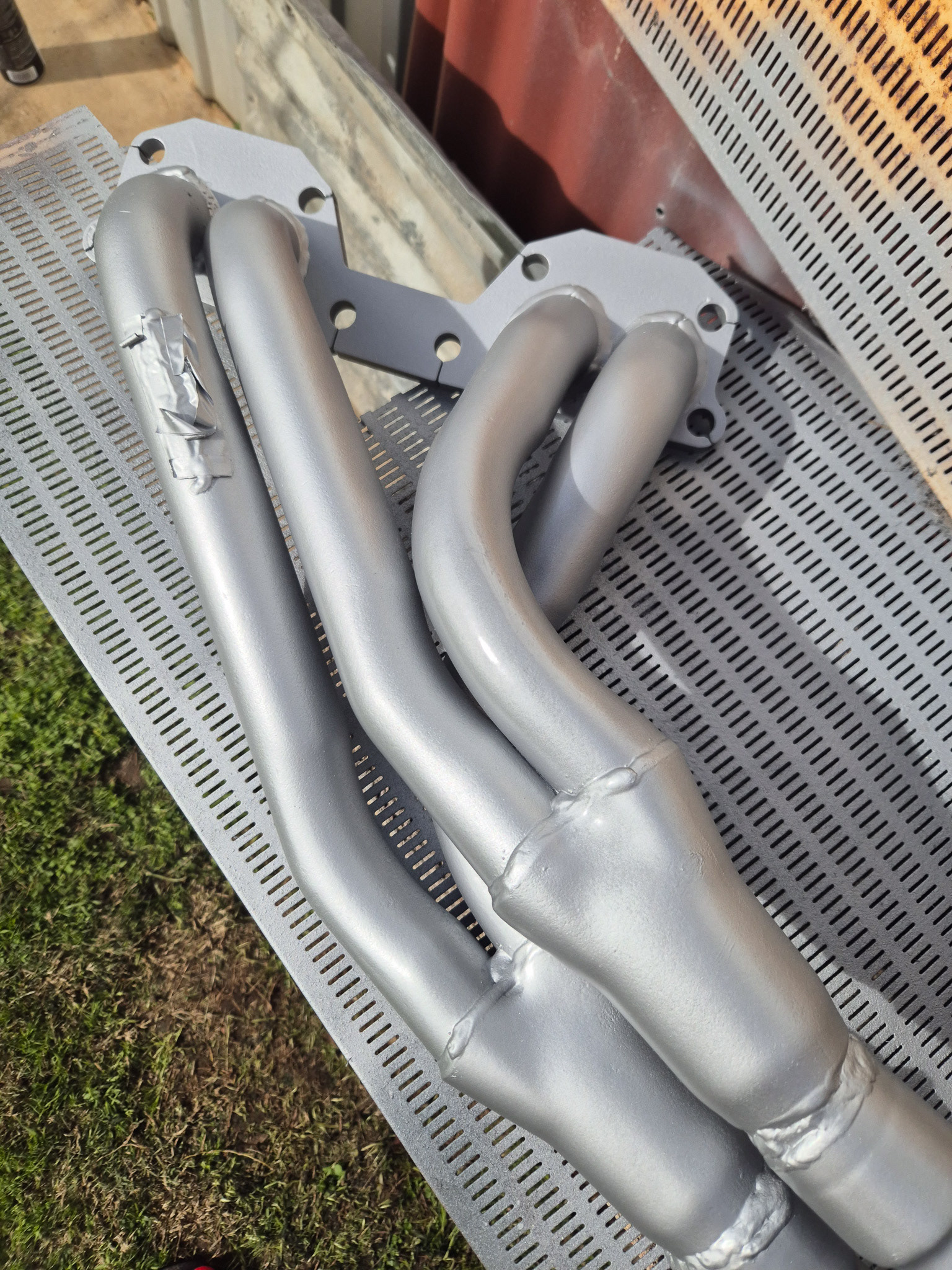

FInal Results

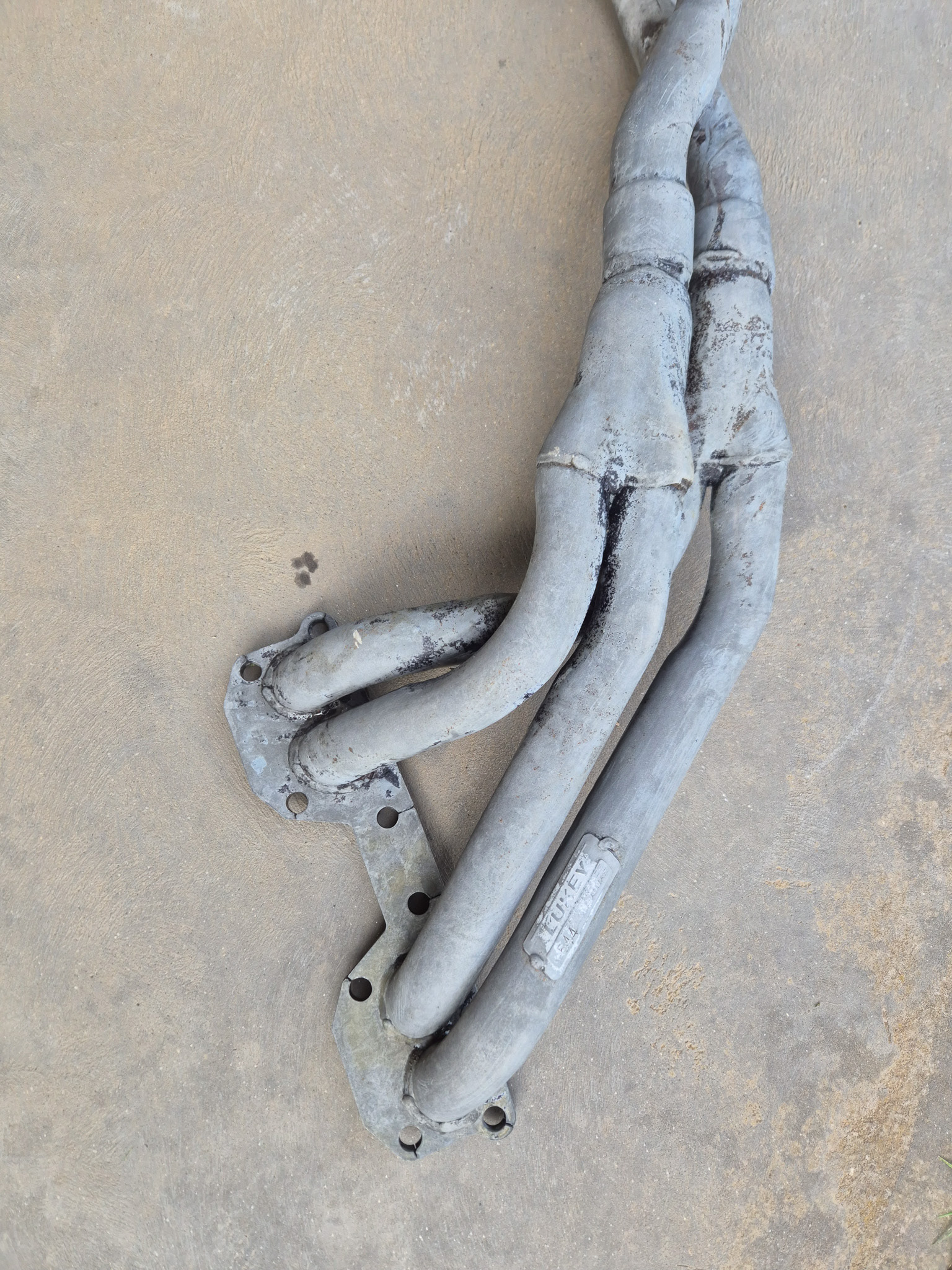

After Acid Cleaning

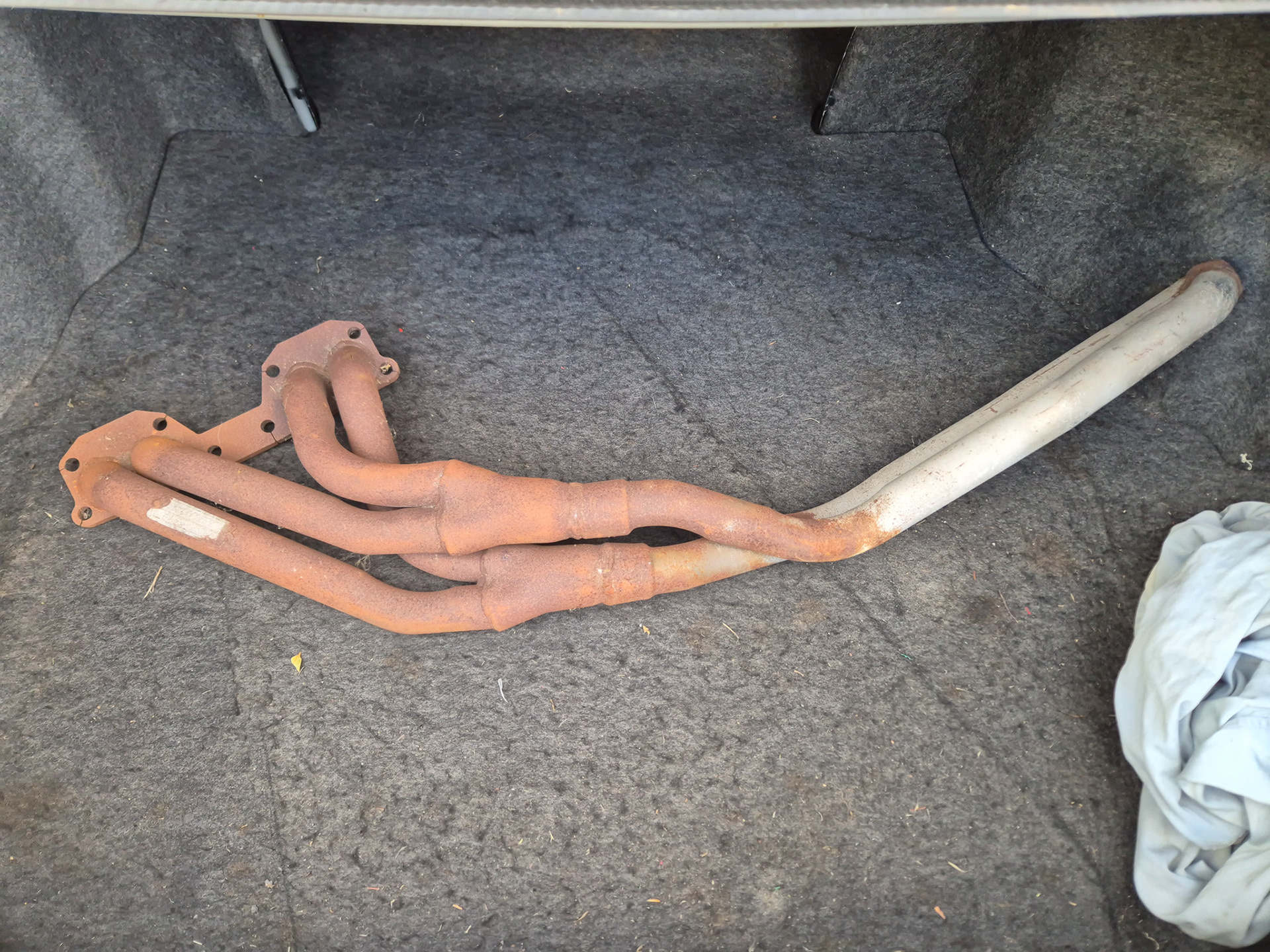

Original Condition (Lukey 544 Headers)

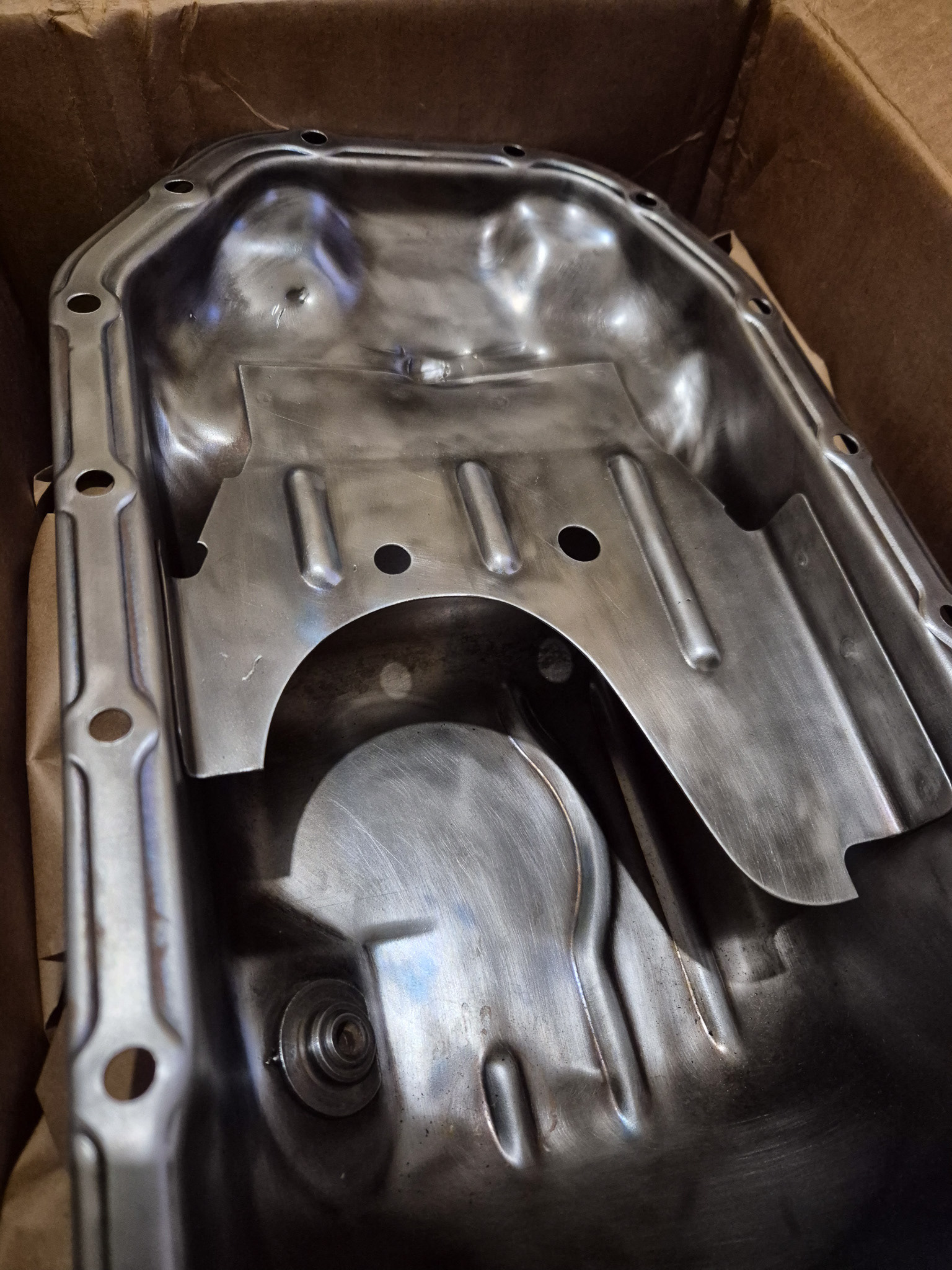

Cleaned up USA Spec Mid Sump

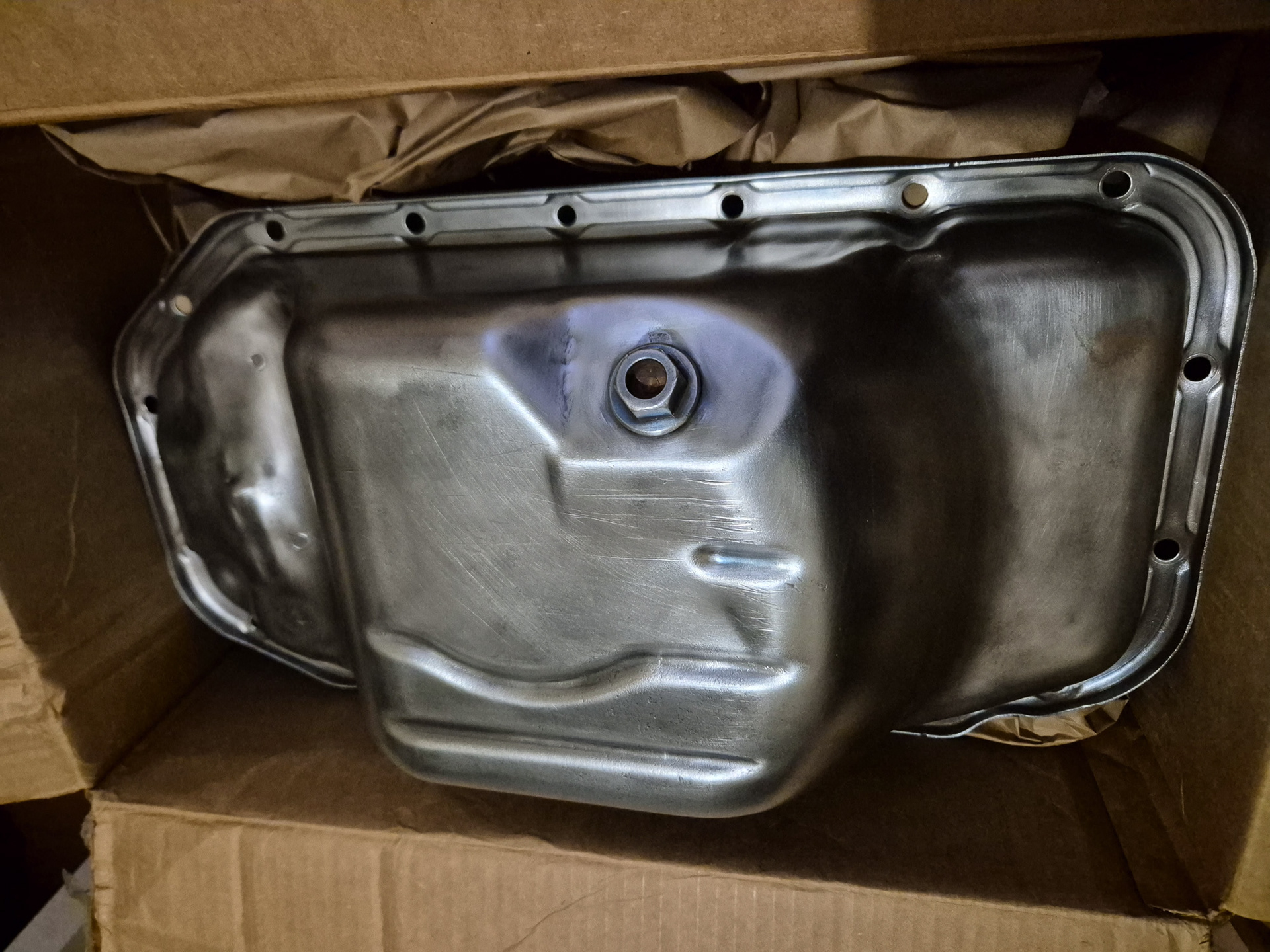

22R Mid Sump from USA to complete a GT conversion with Aus Spec Subframe
Old Engine is out

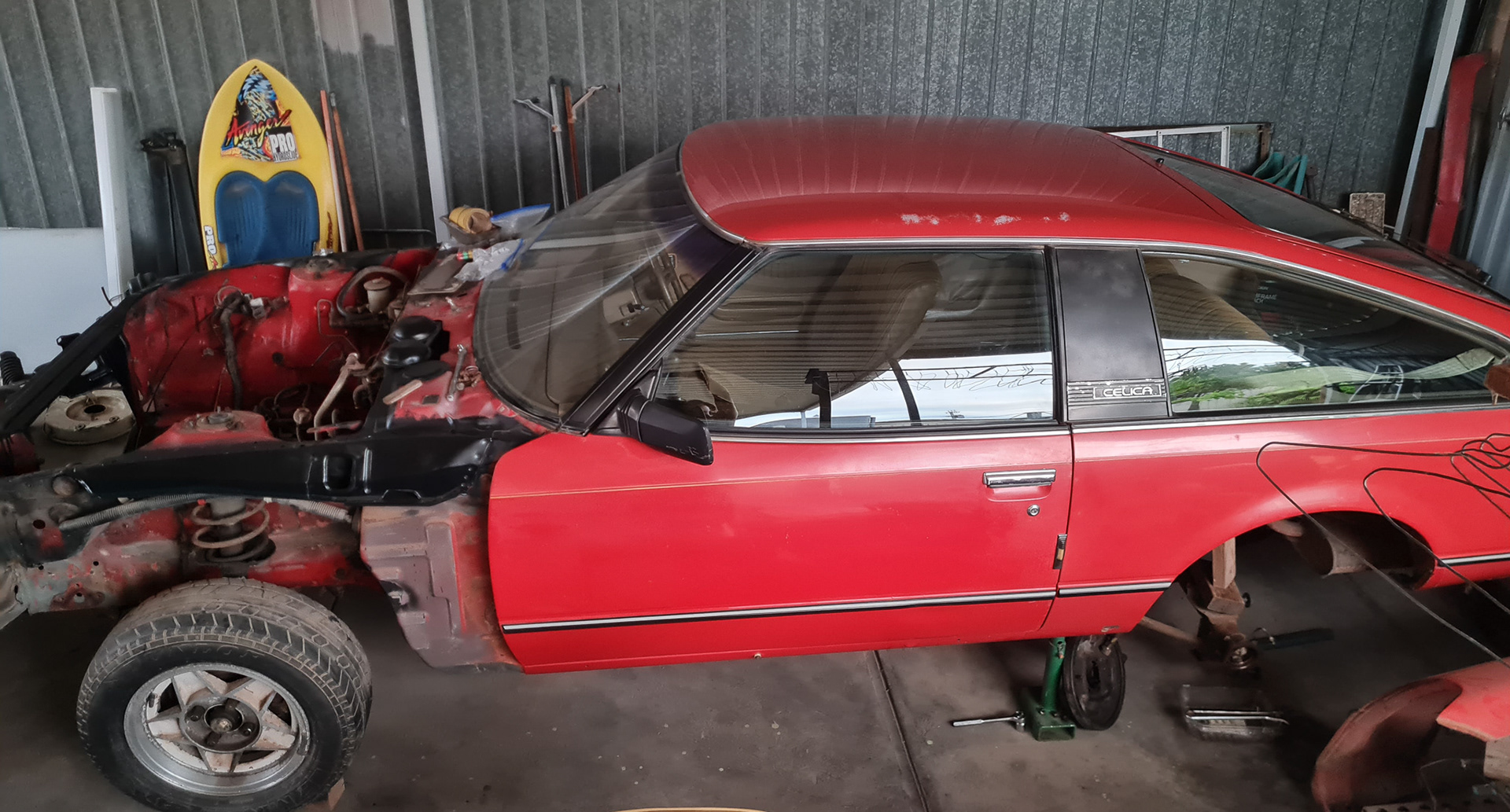

Side View

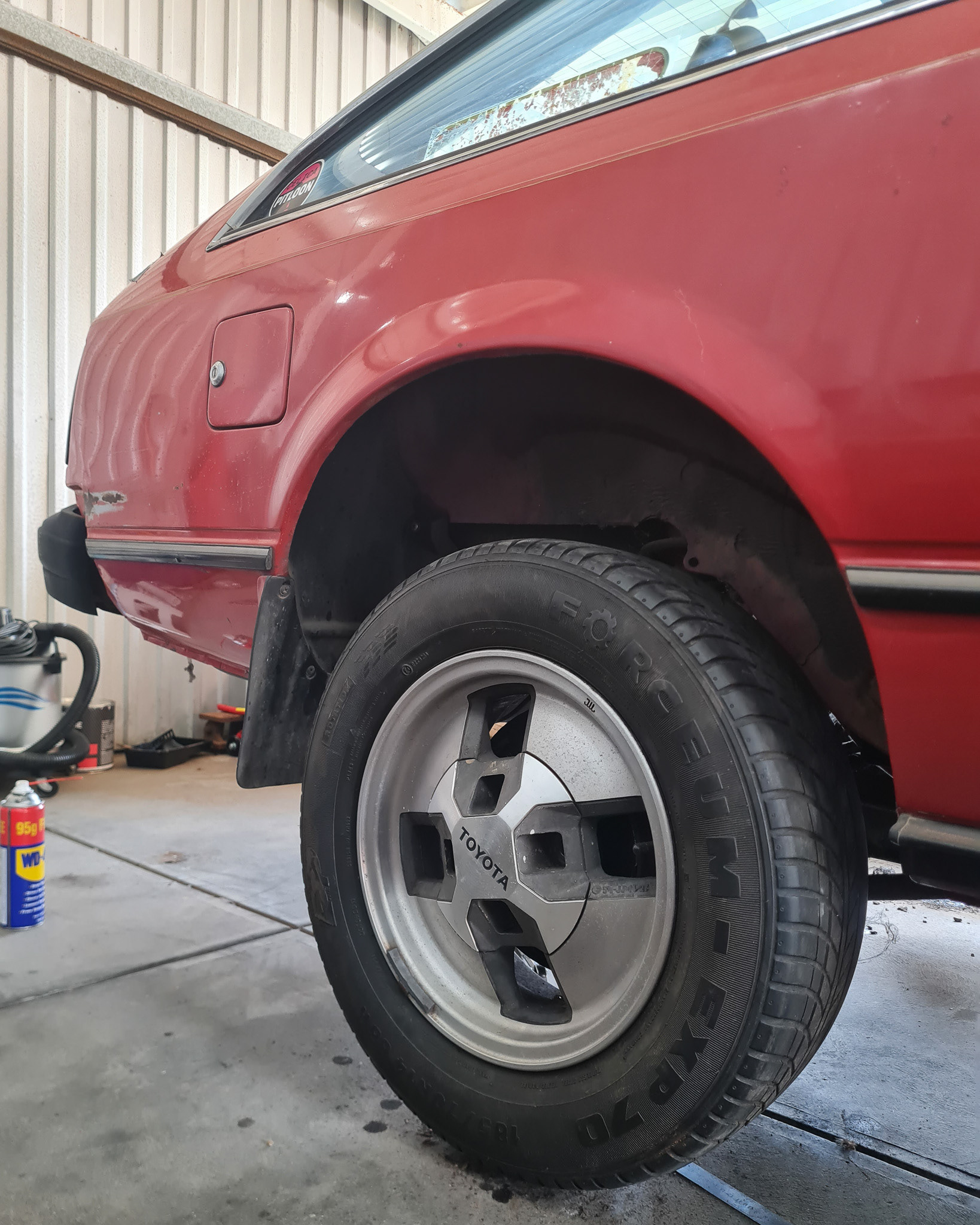

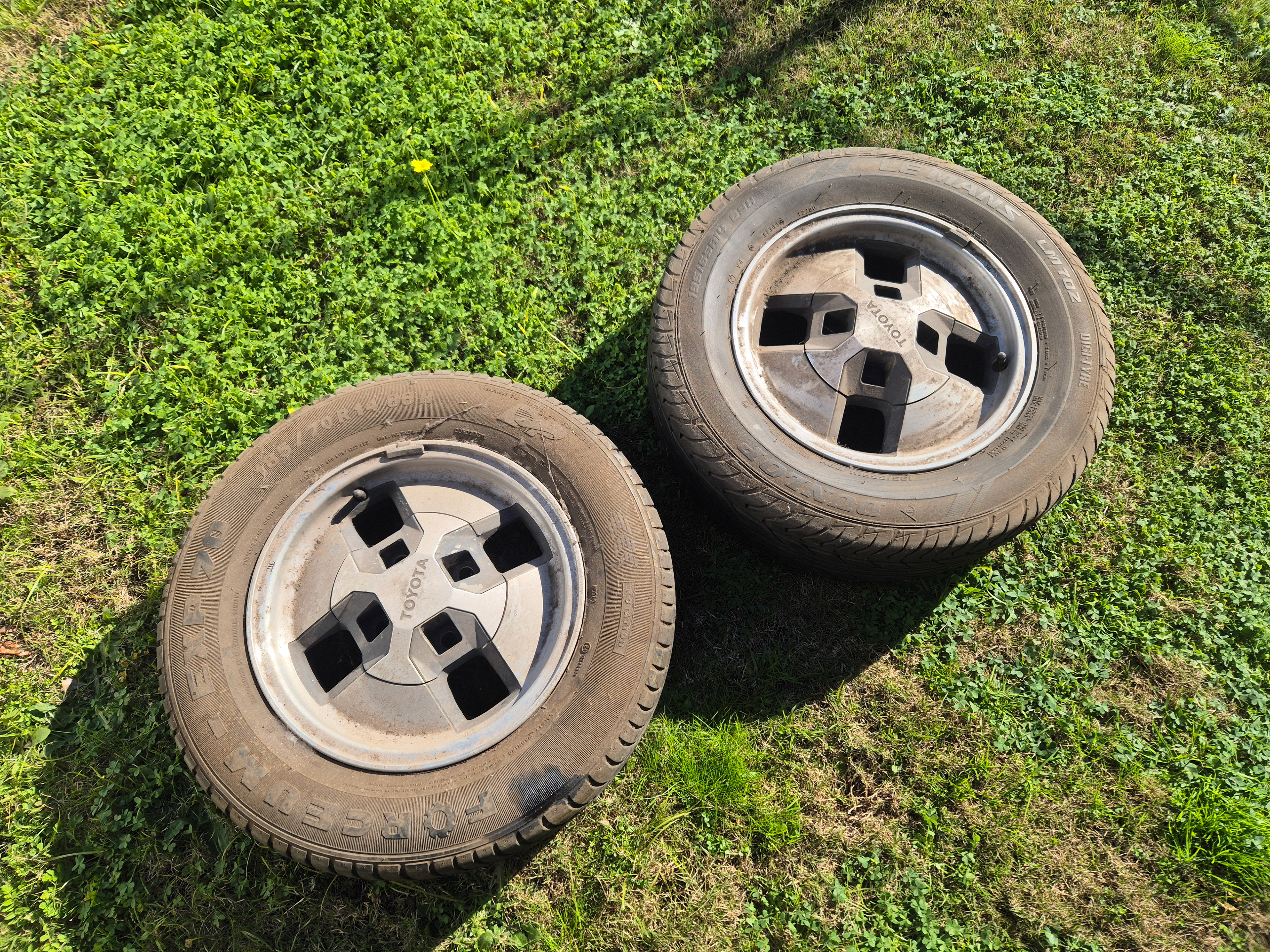

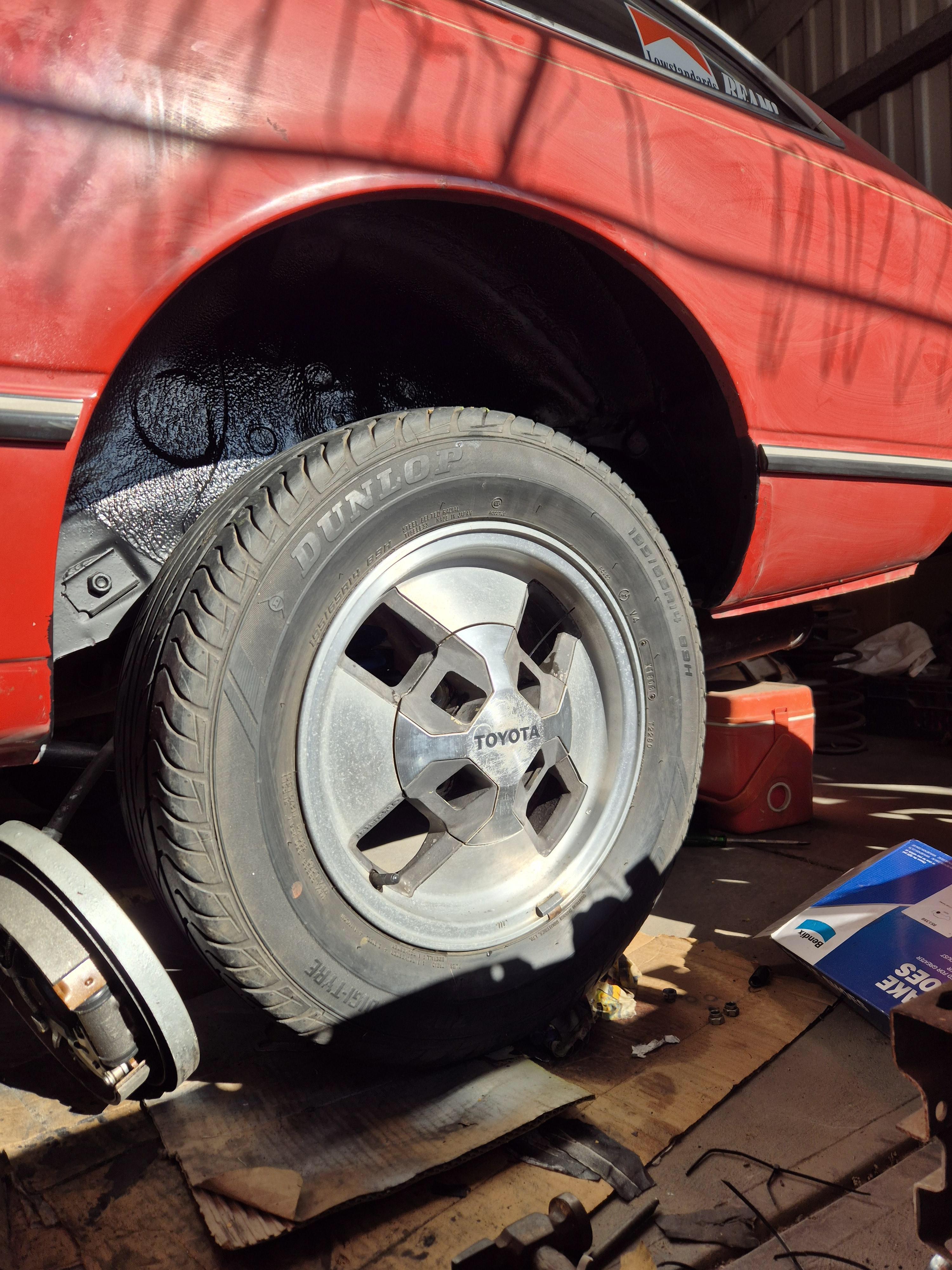

New Wheels Acquired

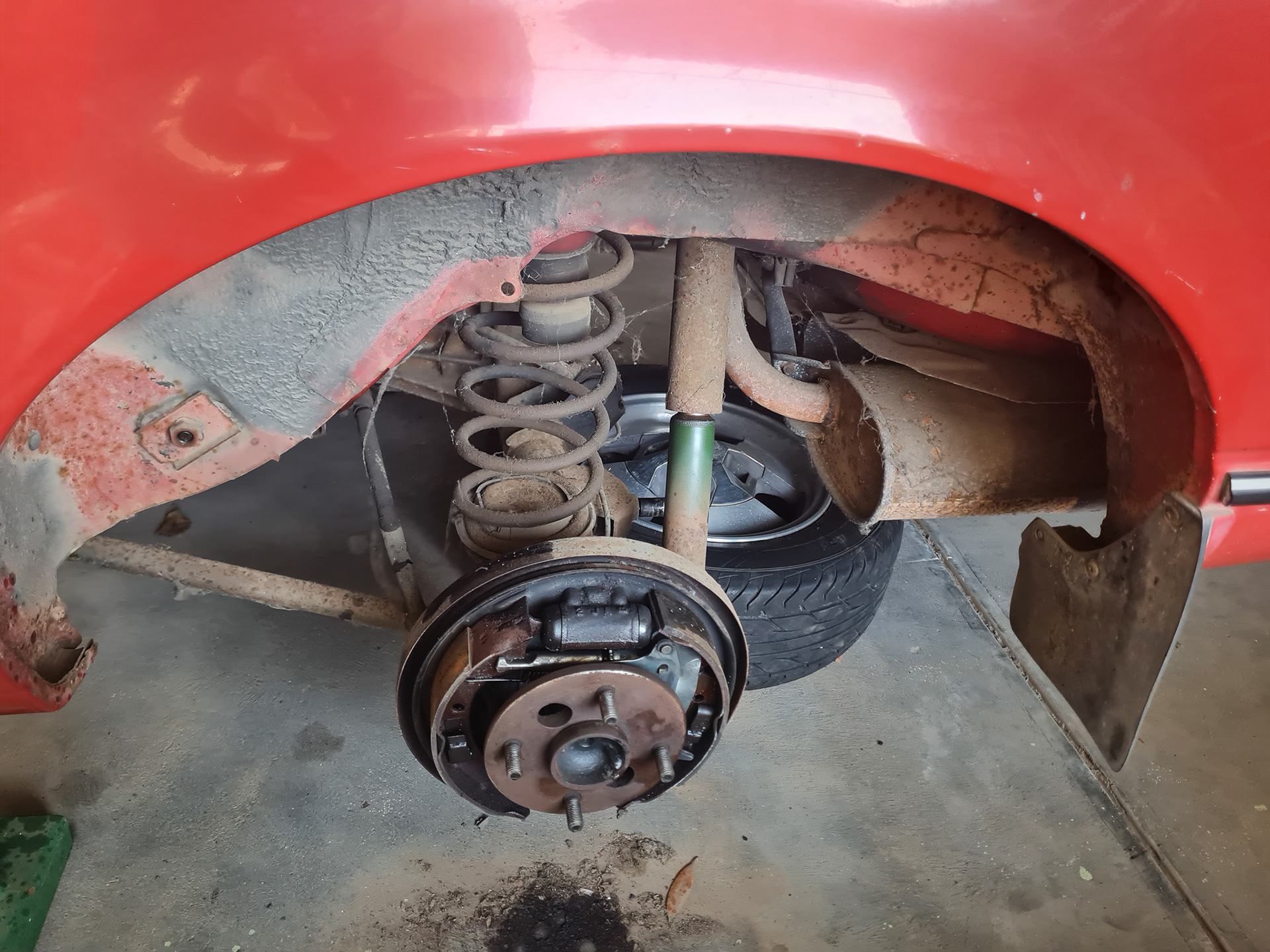

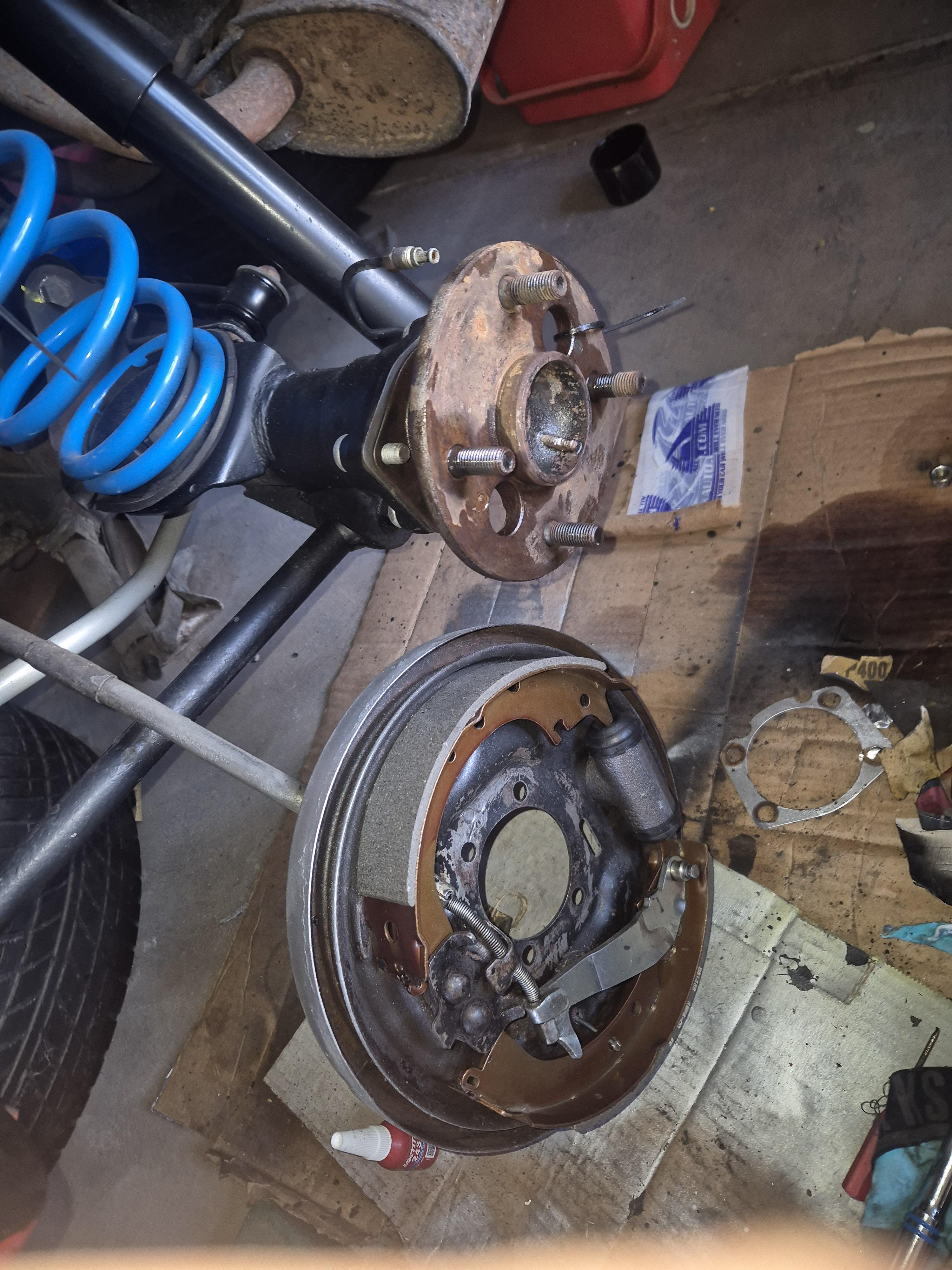

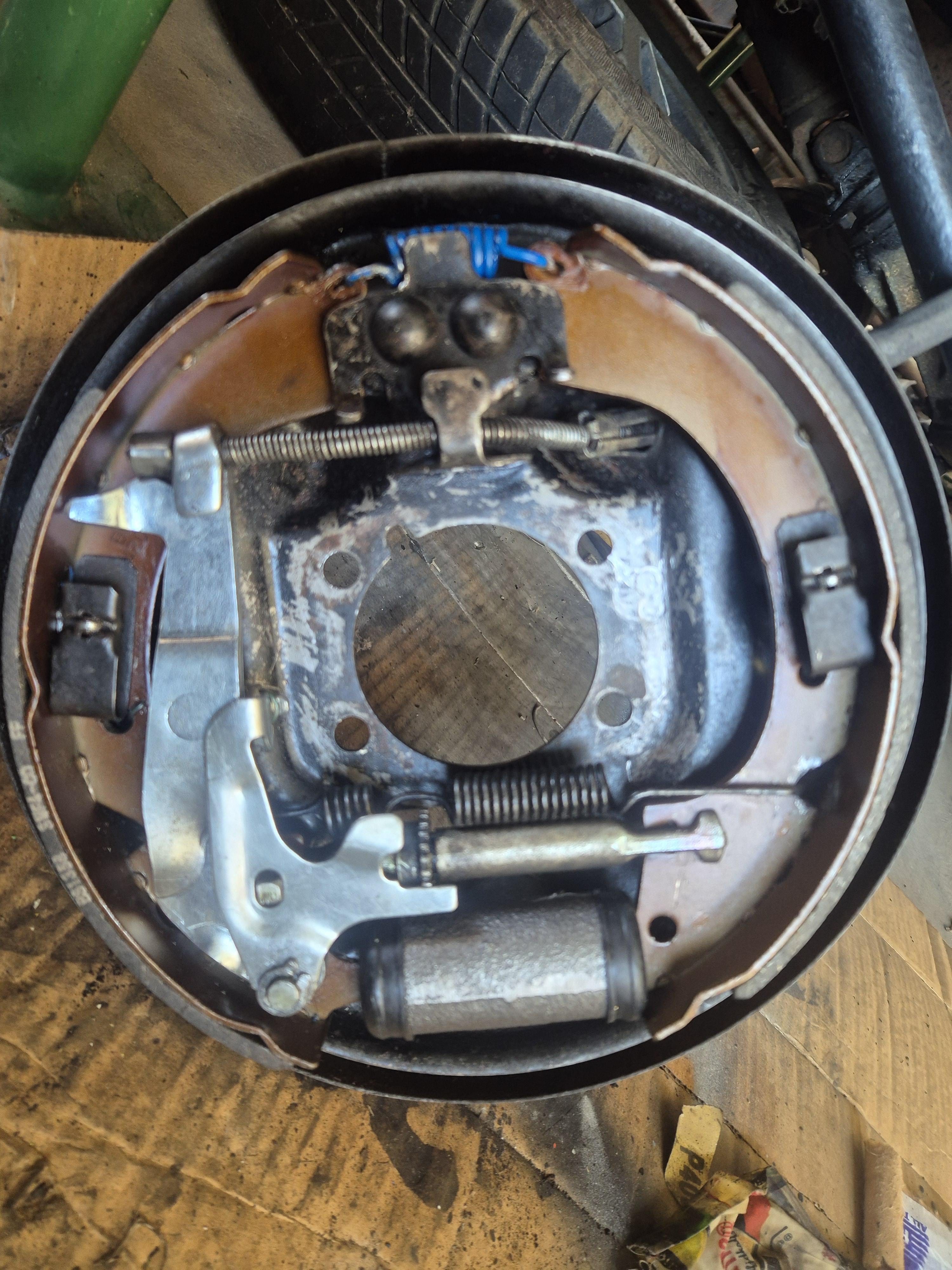

Start of full brake and suspension restoration

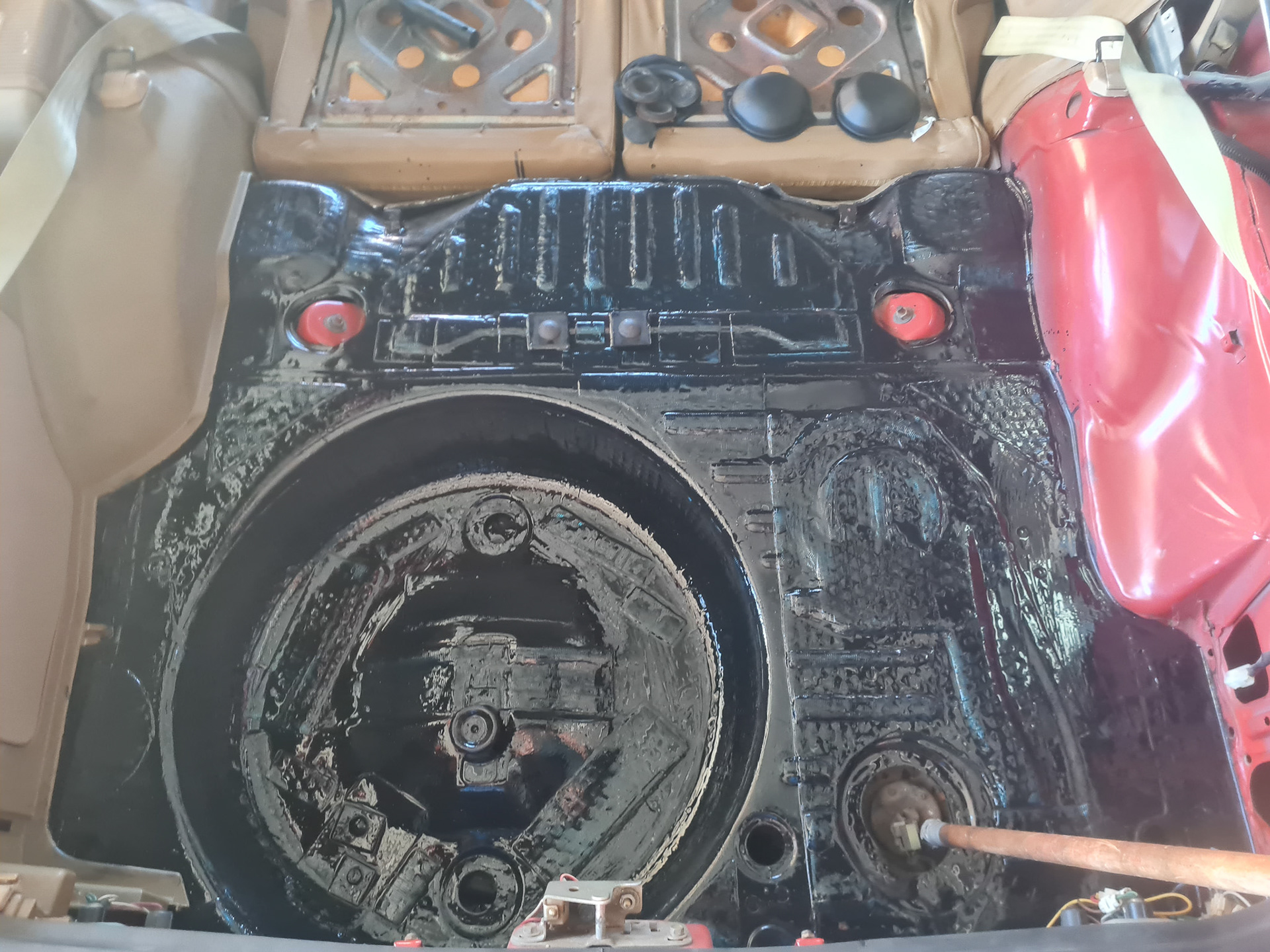

Chasis paint applied to boot

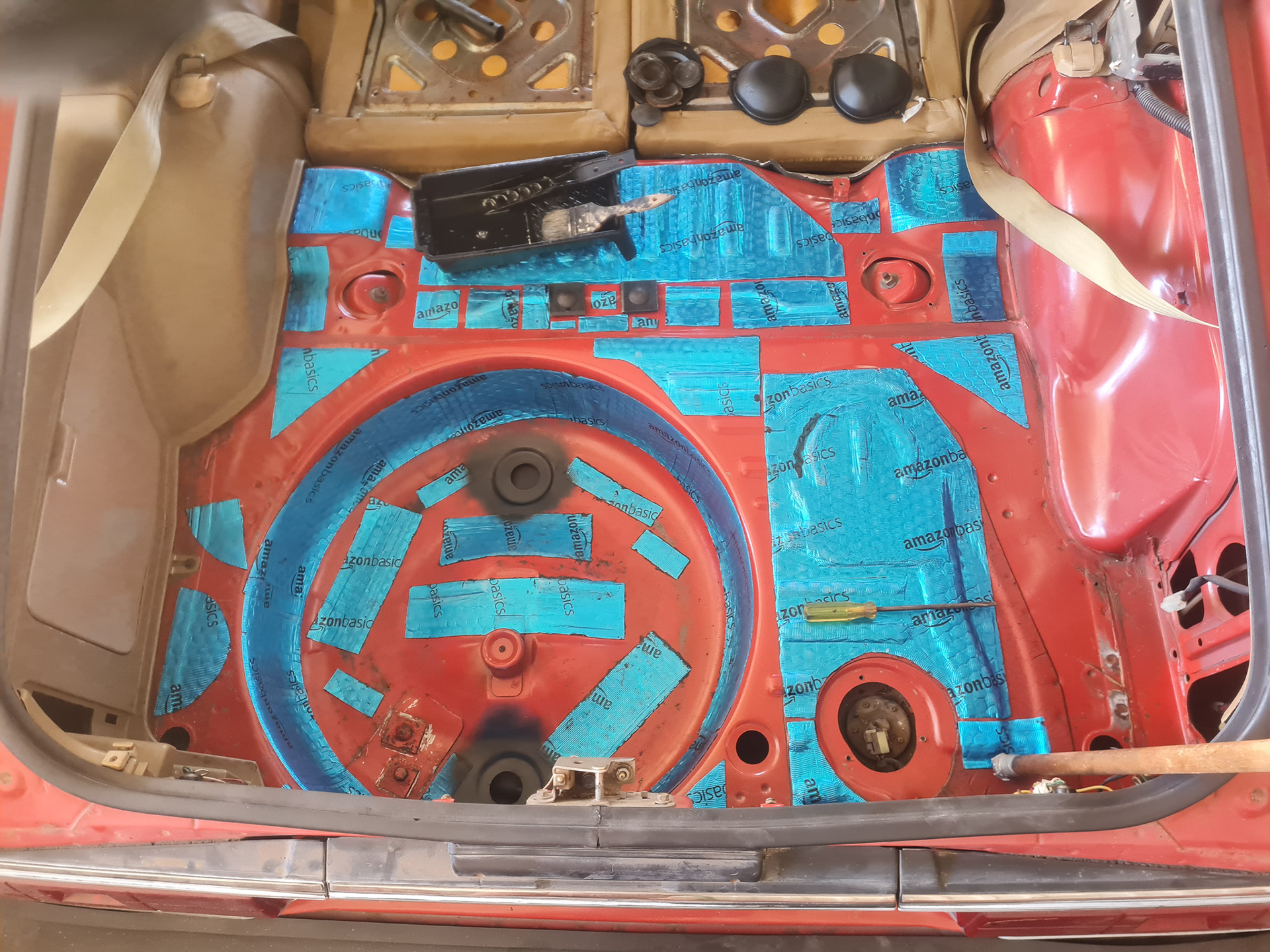

Sound Dampening Applied

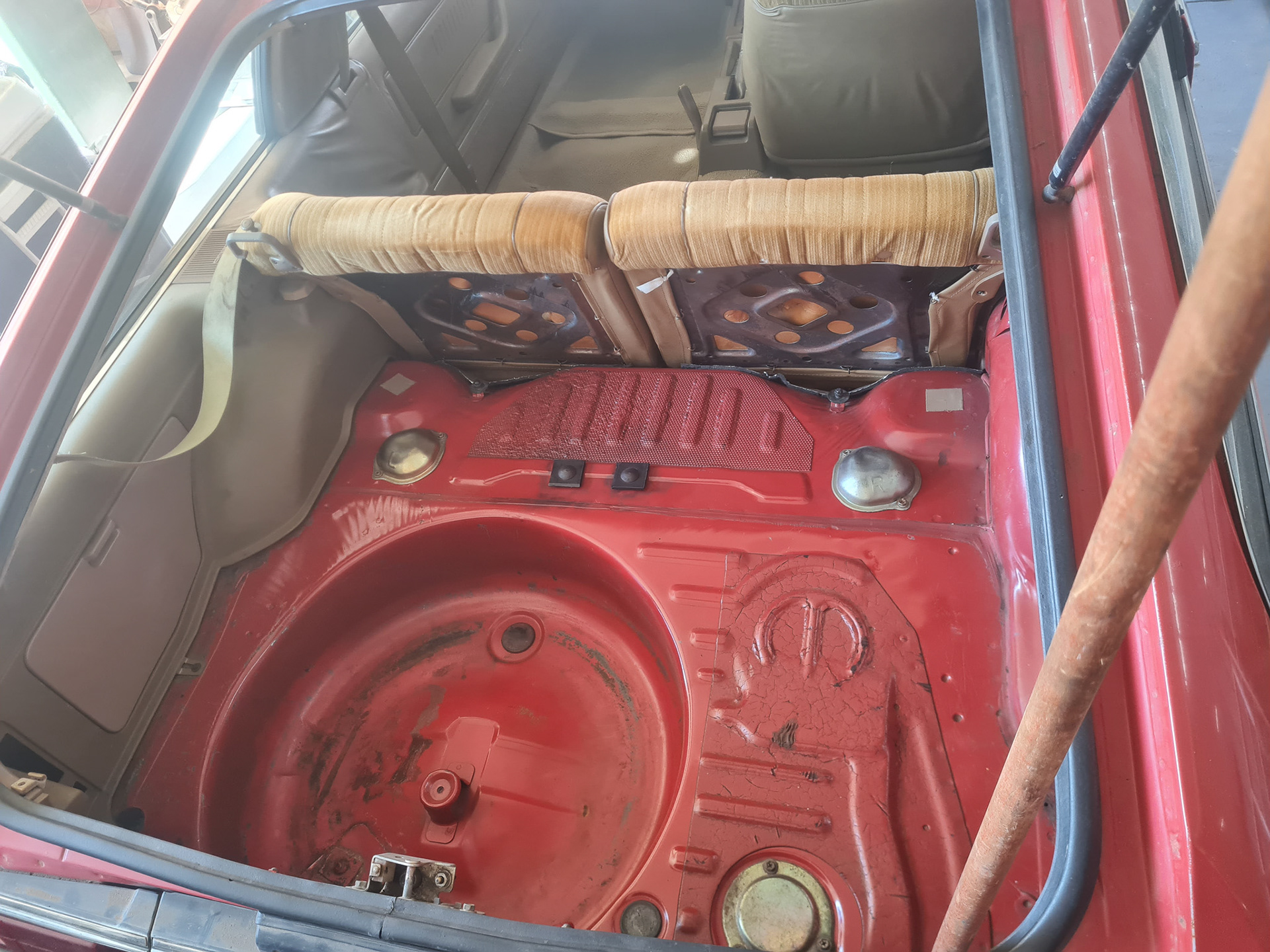

Prepped for Sound Dampening and Paint

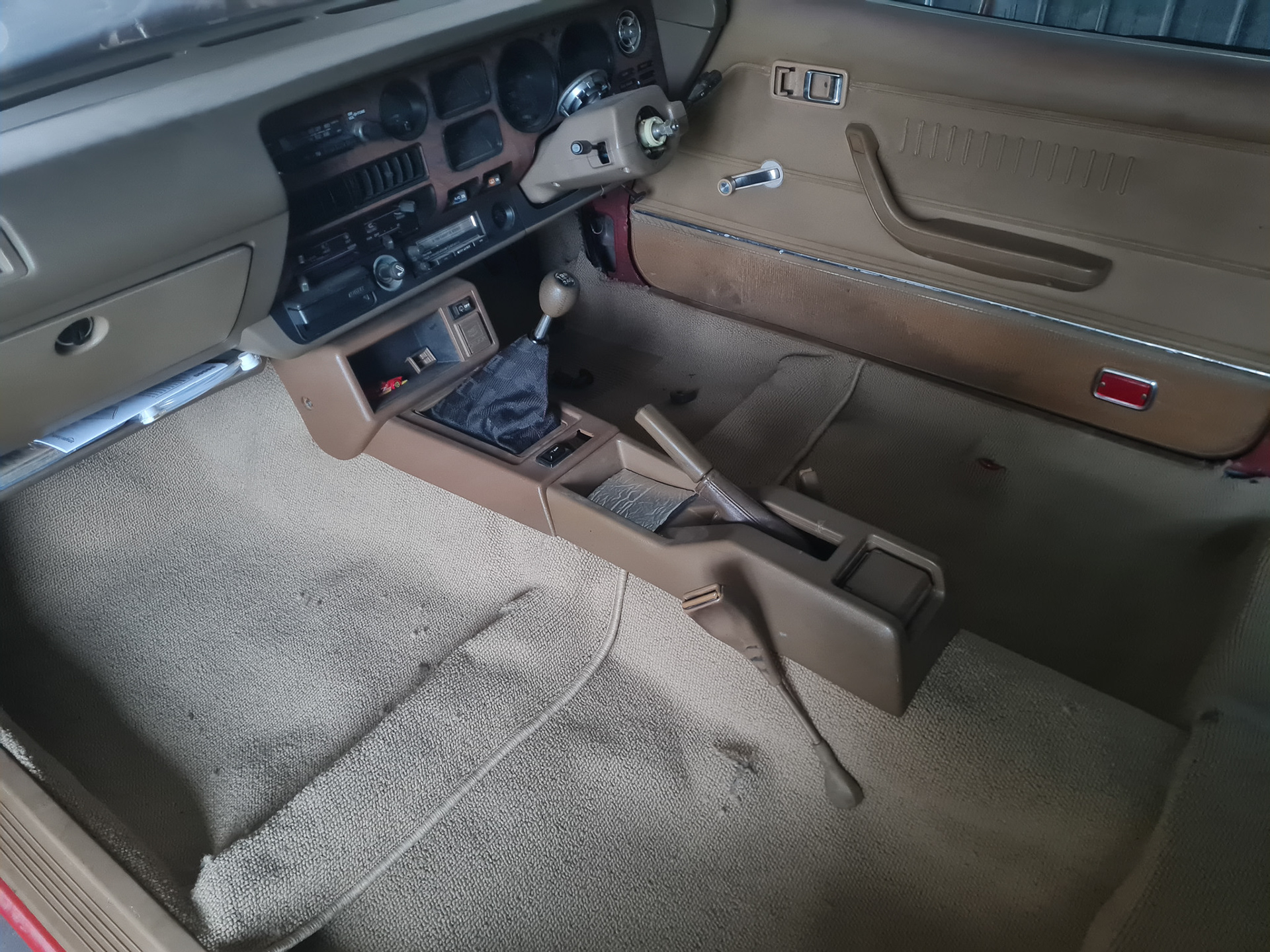

New Carpet and Console back in

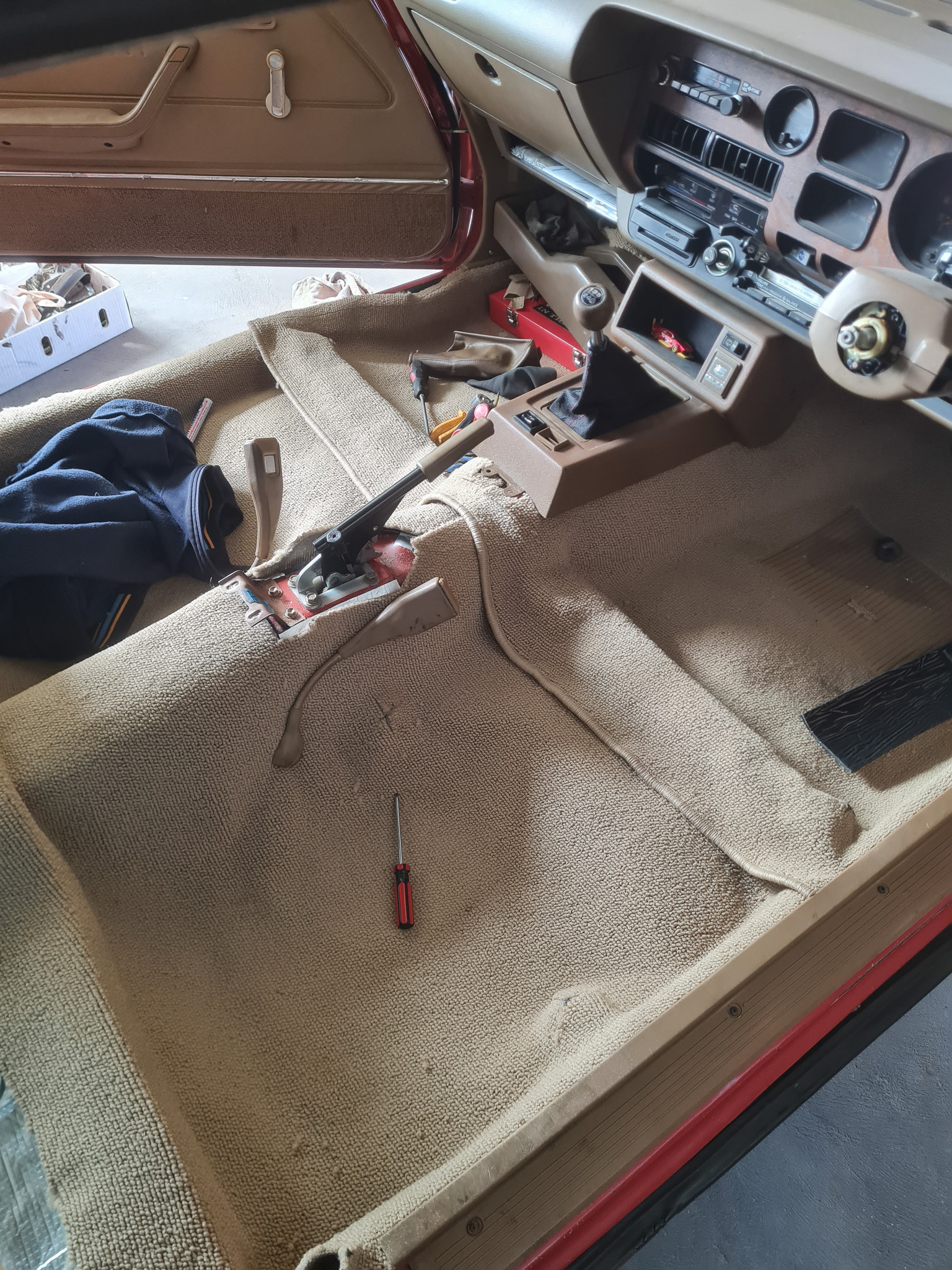

New Carpet

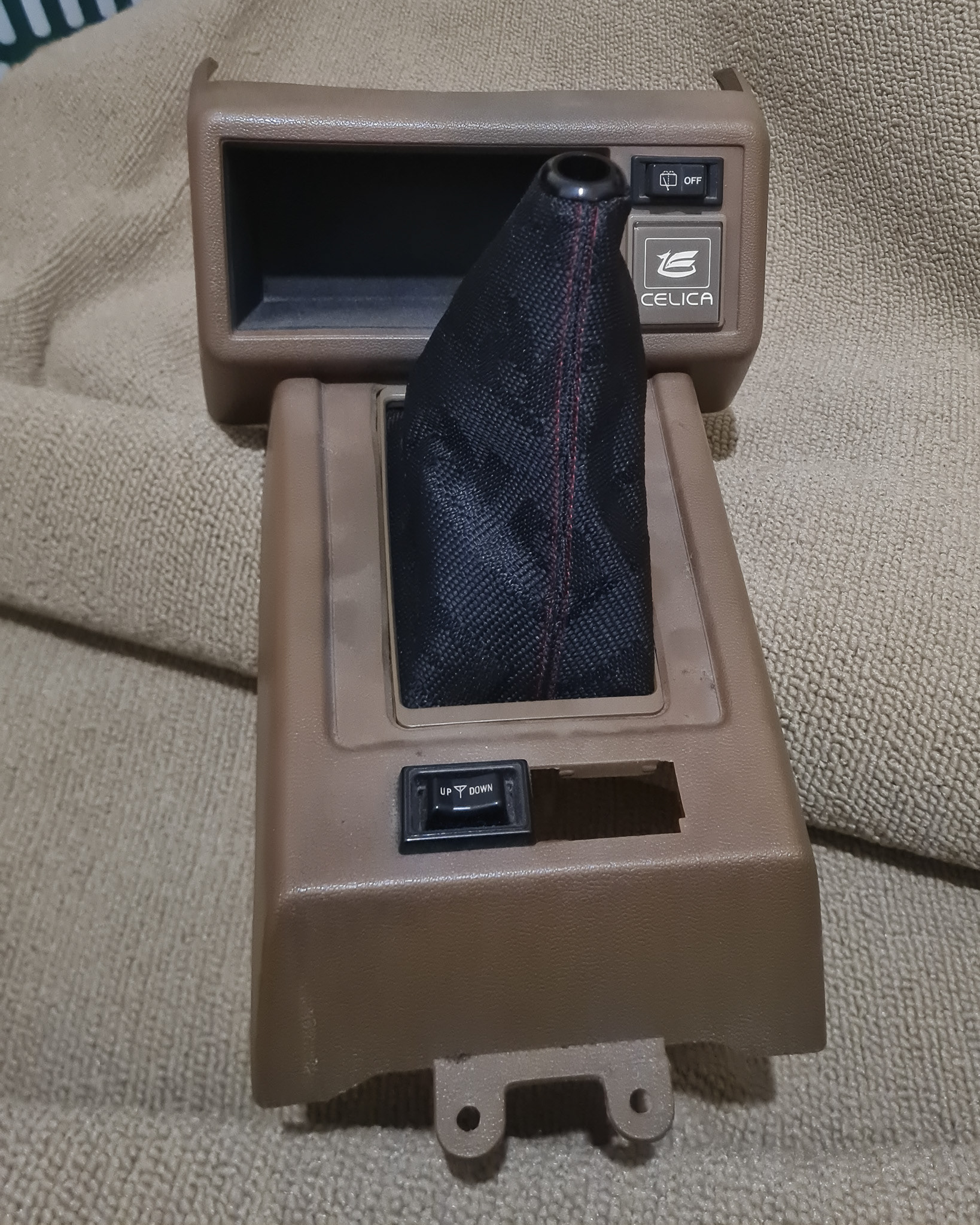

Retrimmed Centre Console

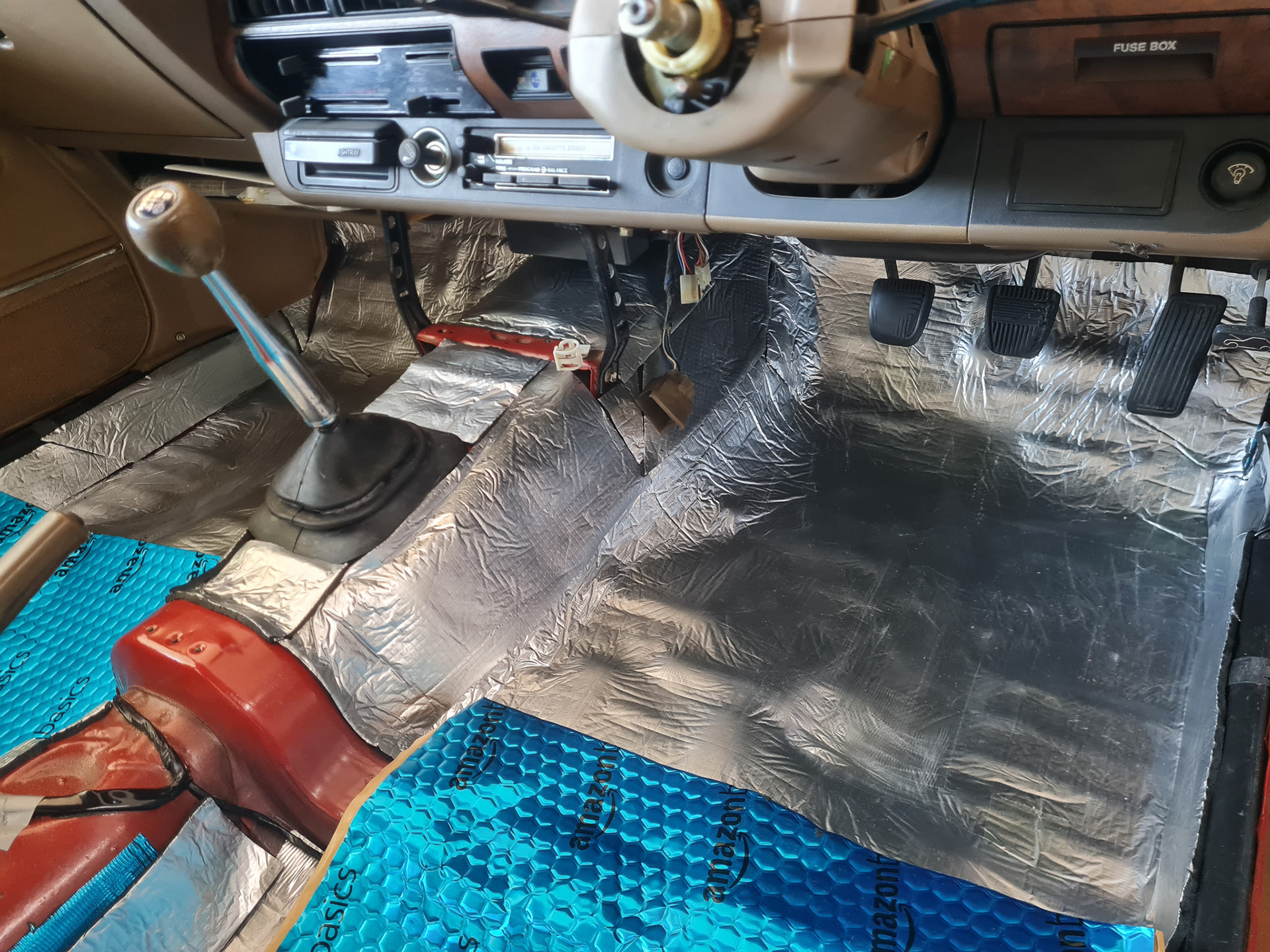

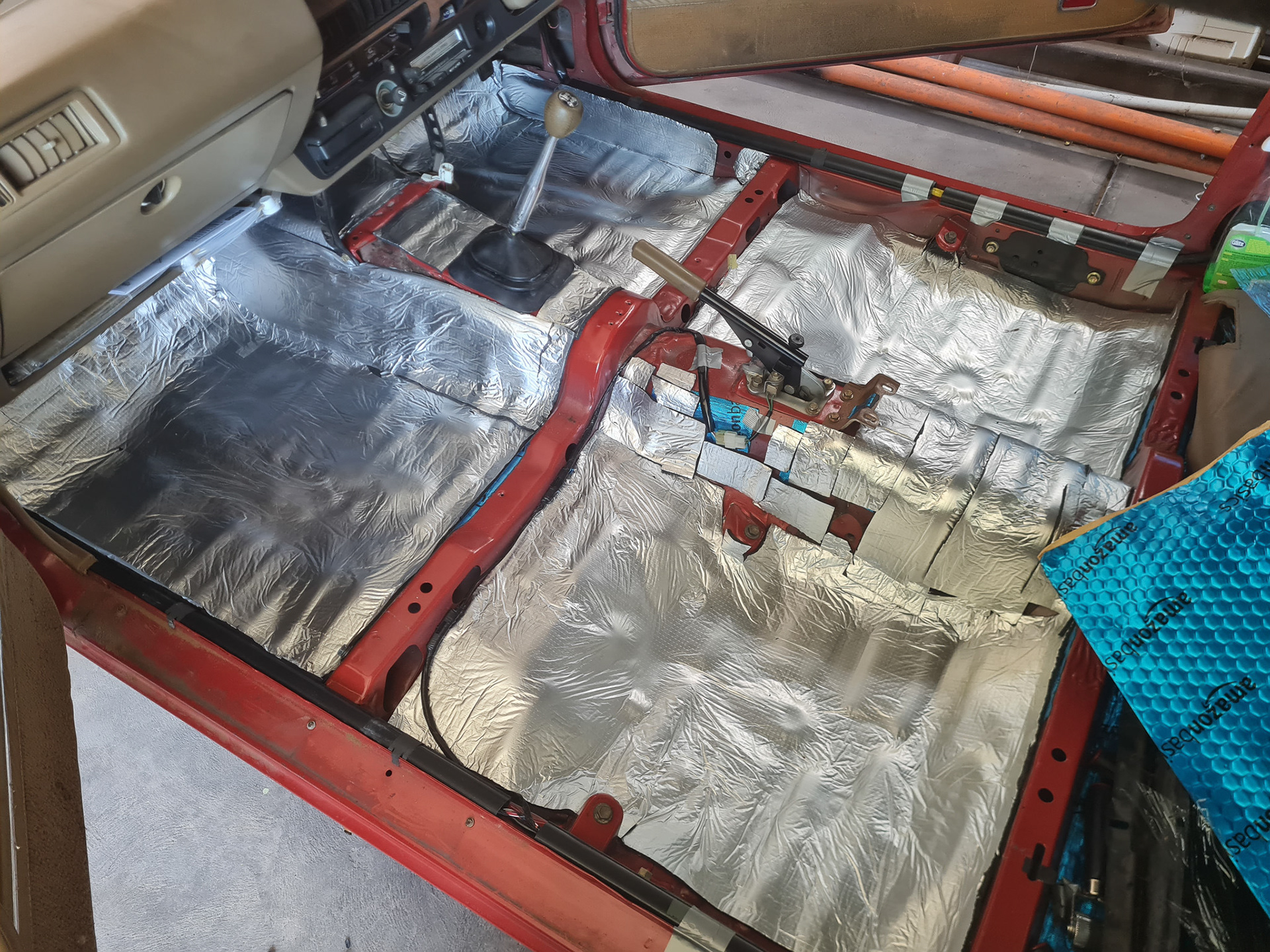

Heat/sound dampening & cushion for comfort
Heat/sound dampening & cushion for comfort

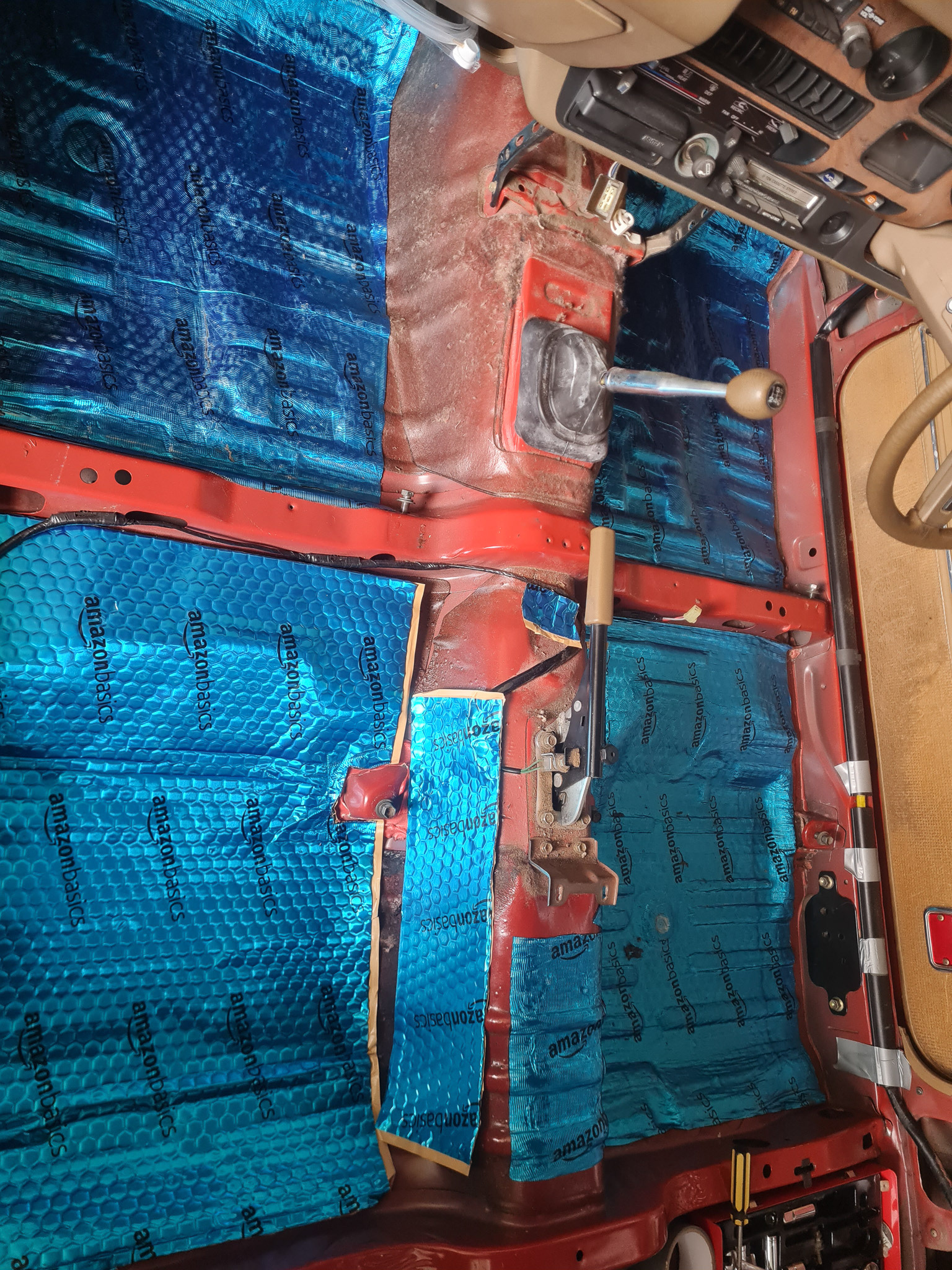

Preparing to sound deaden

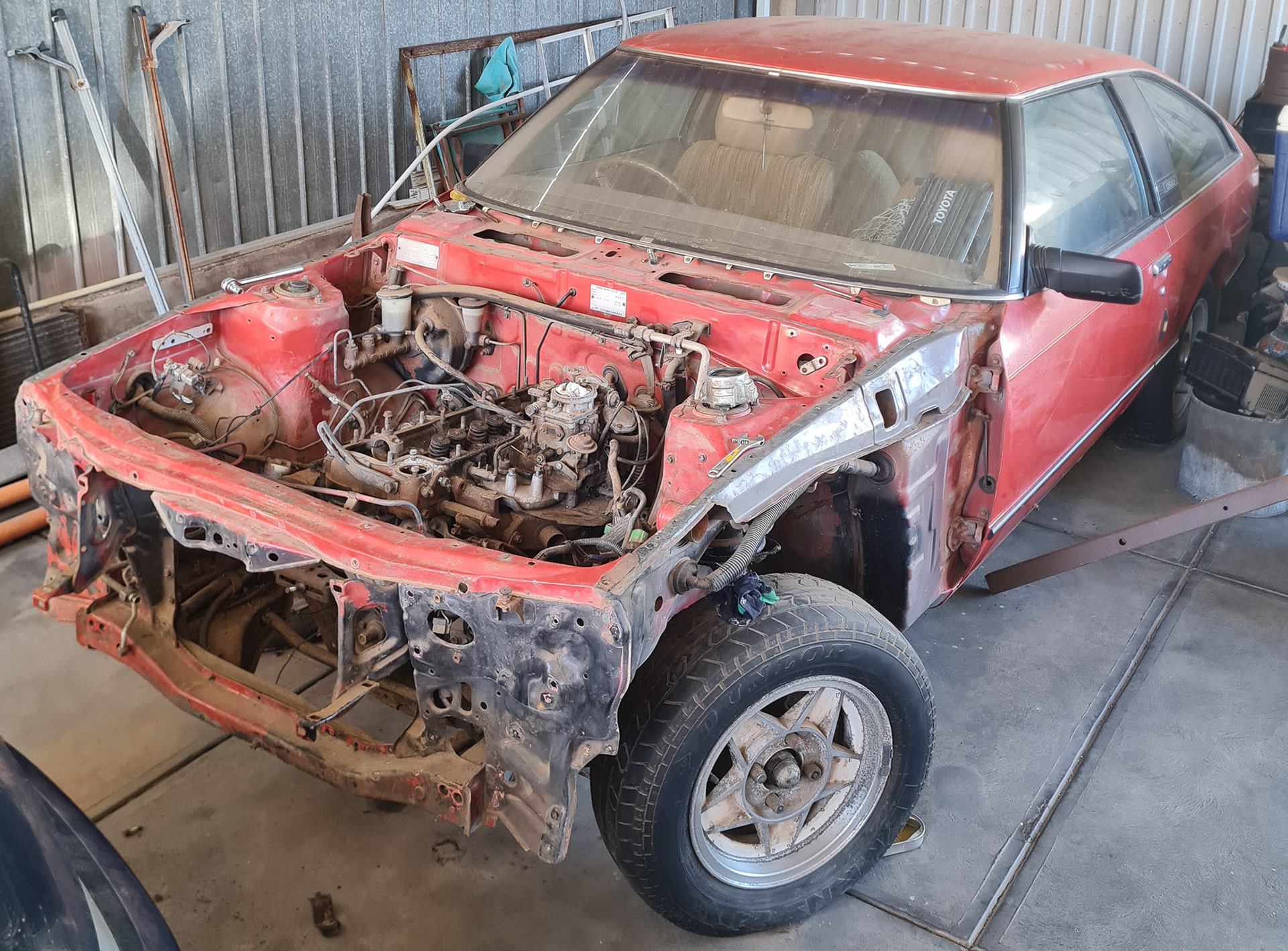

Progress Picture
Reconditioning horn

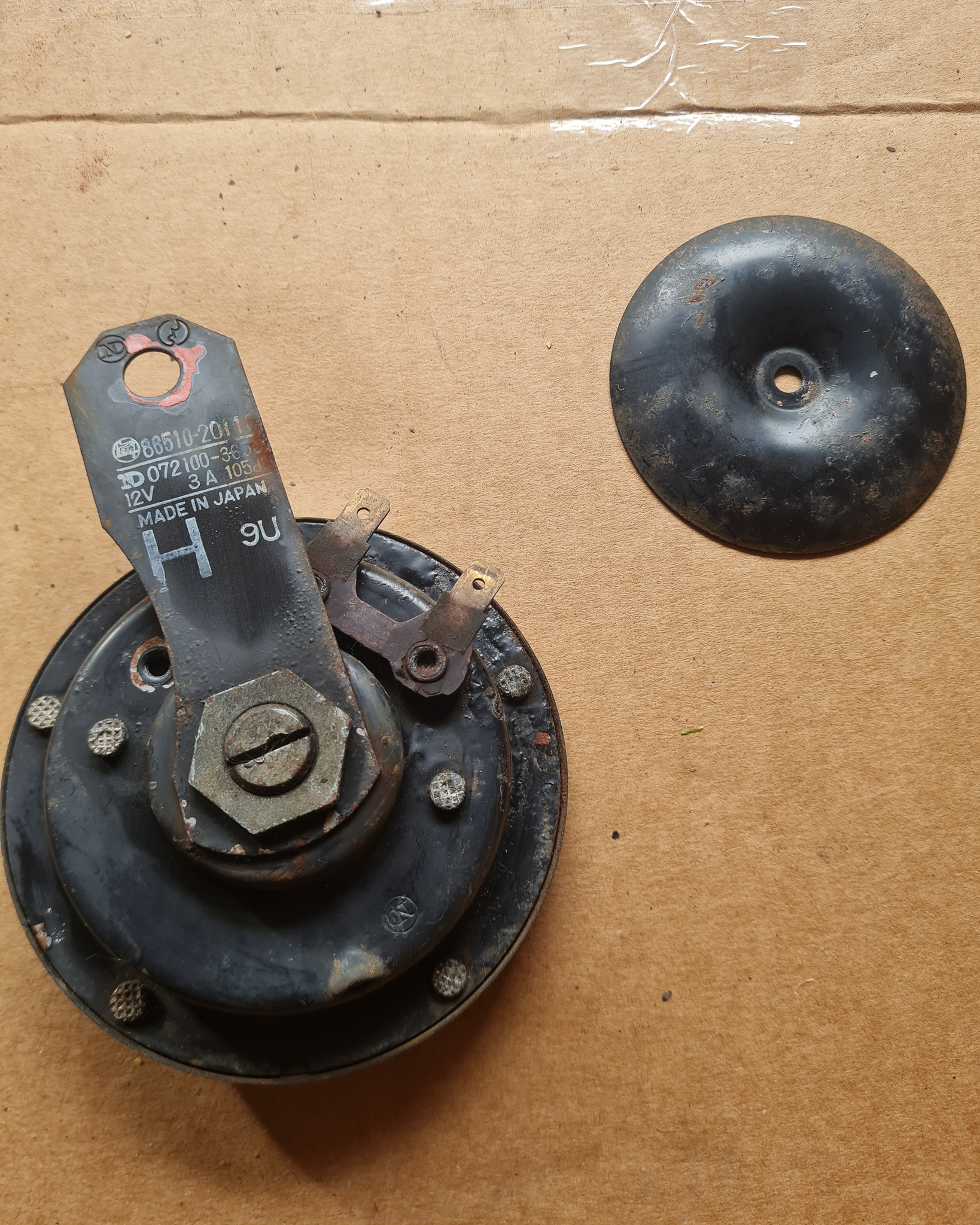

Original Condition Horn

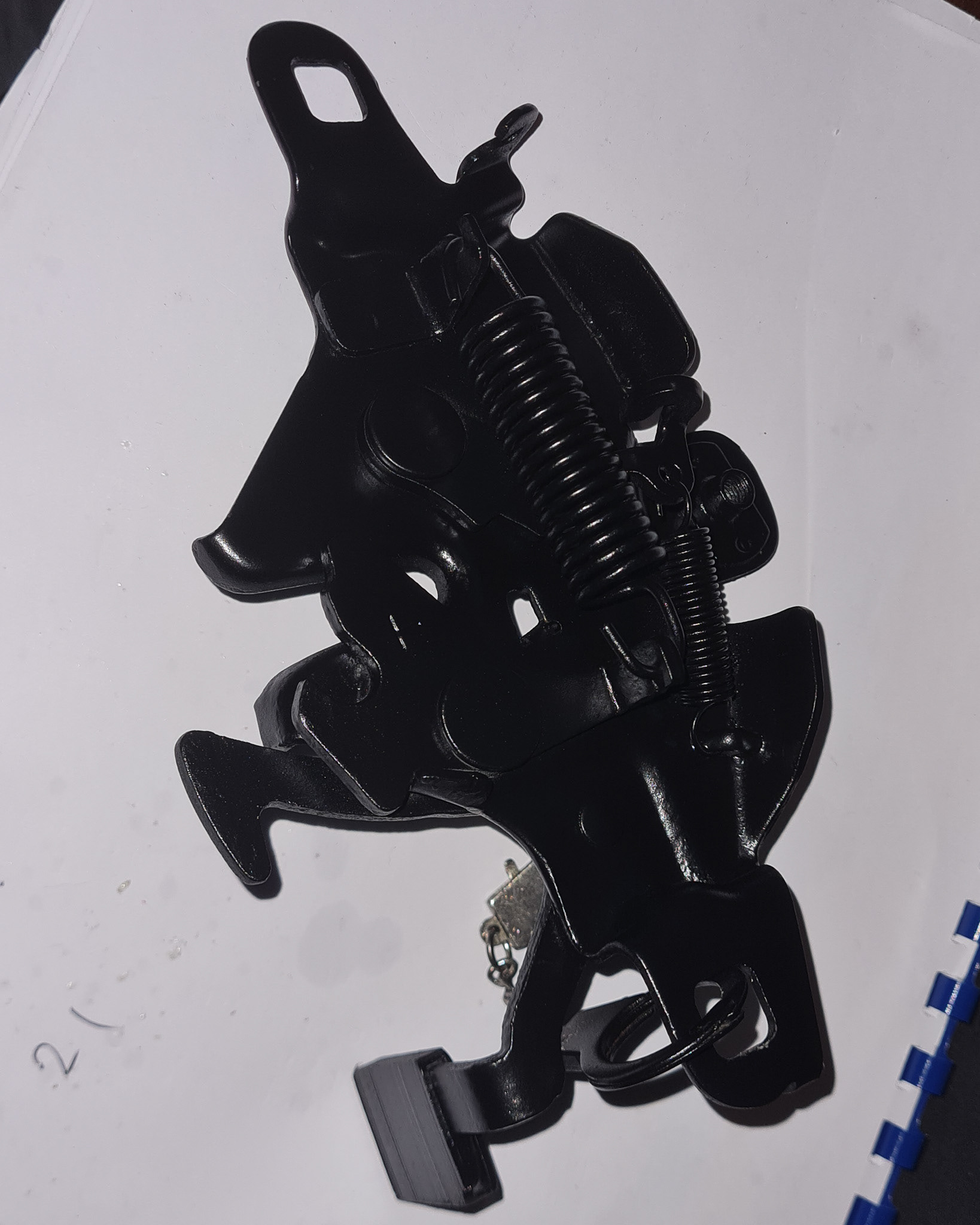

Resprayed and refurbished the hood latch mechanism

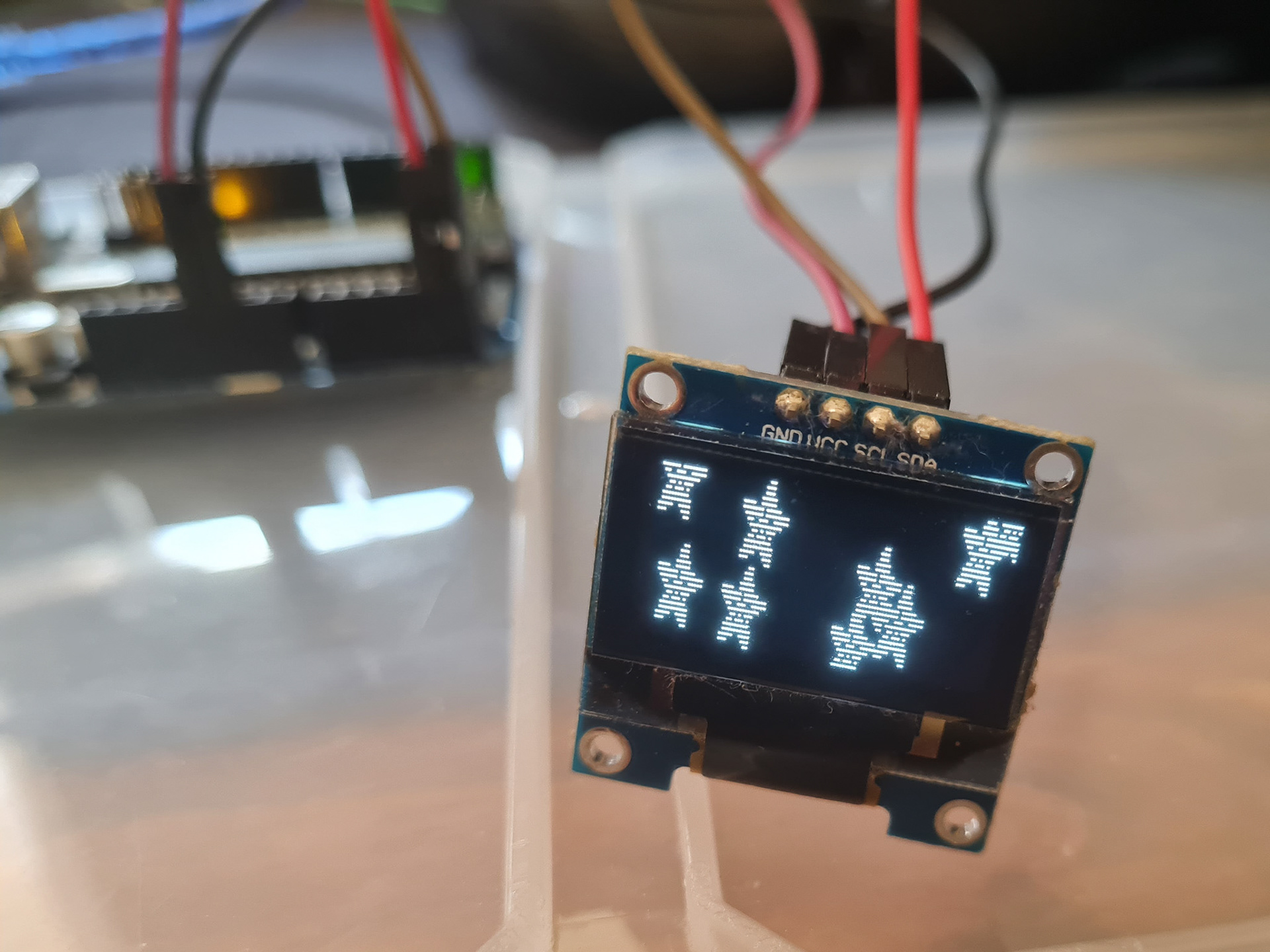

Another unfinished project

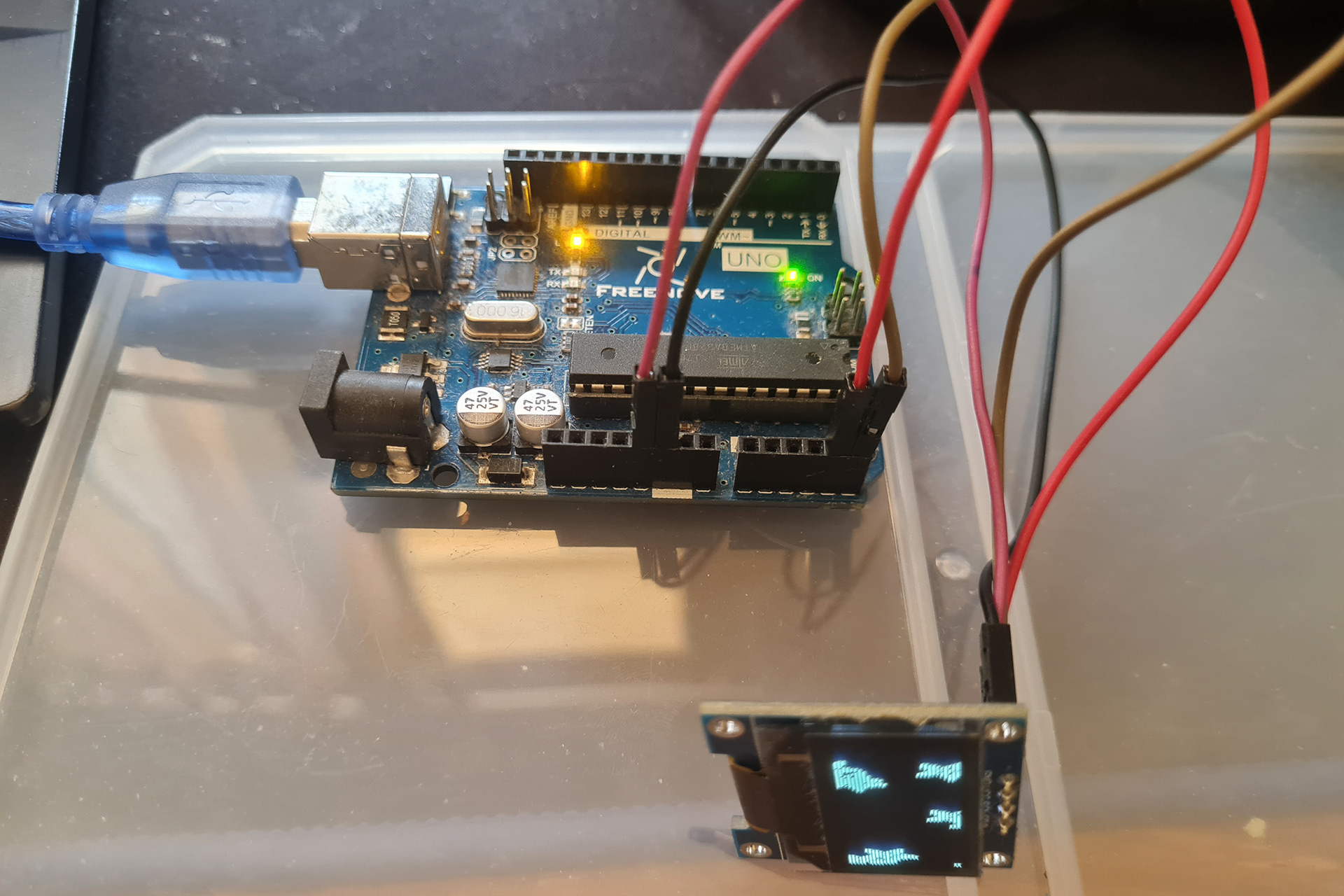

Started a custom digital gauge display

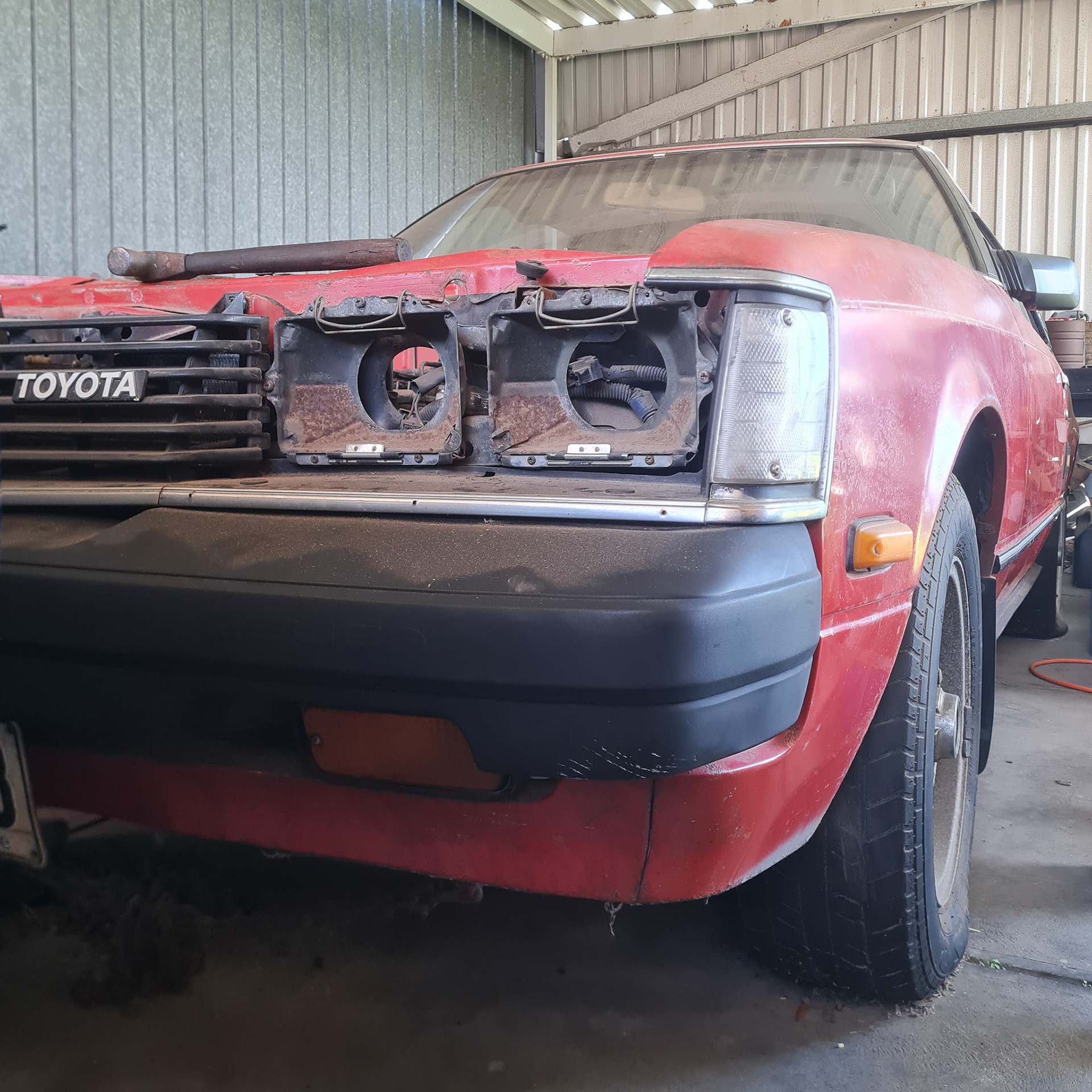

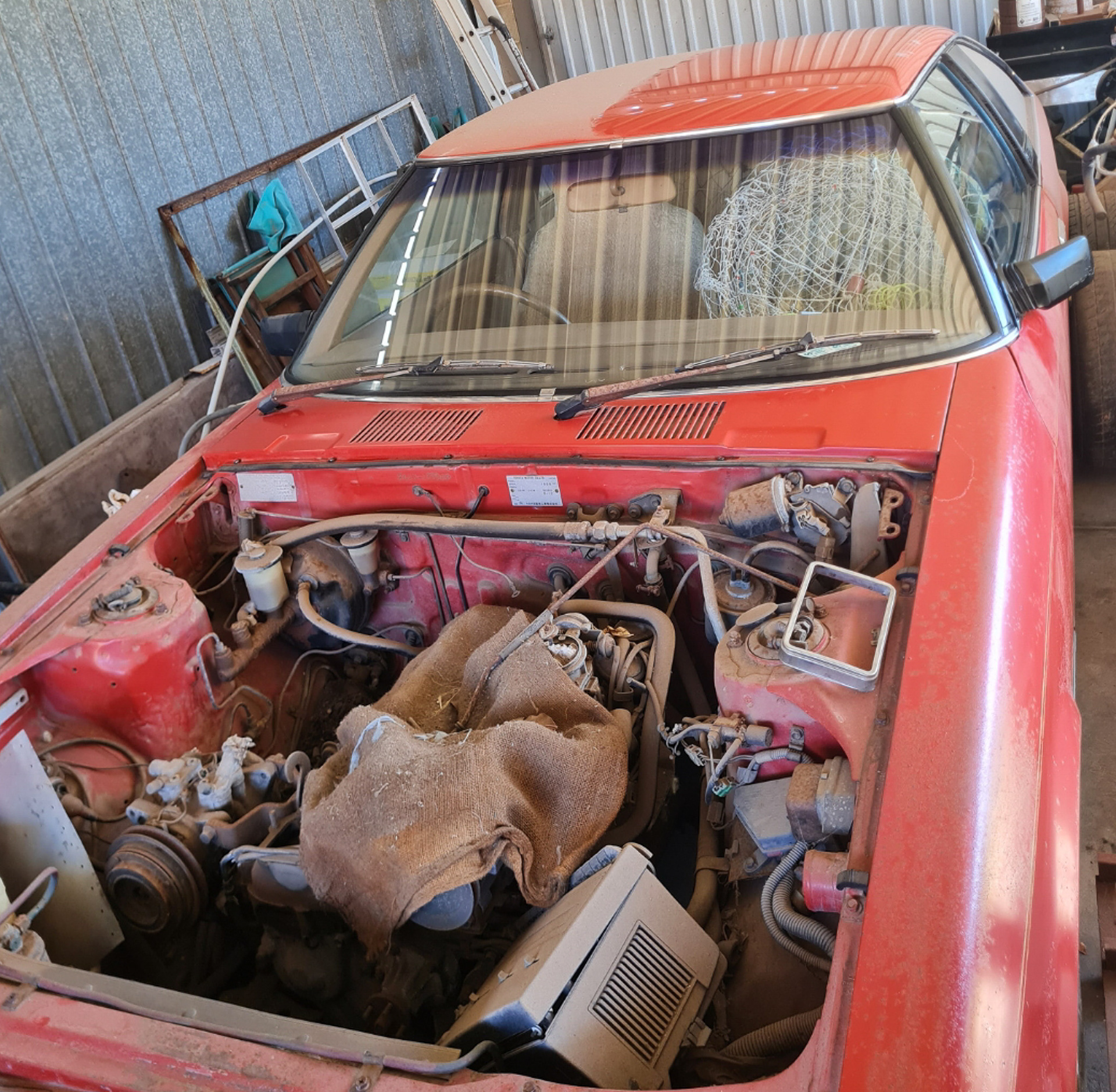

The start of this resto-mod
